Arimo Fit

Thanks to the wide range of optics, module sizes and mounting methods (lay-in, recessed and surface-mounted solution), all lighting tasks for planar lighting in offices can be solved with the Arimo Fit LED luminaire range.

Artikelnr: ArimoF Kategori:


Luminaire type

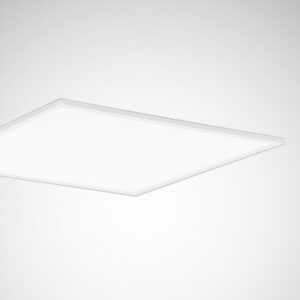

Square recessed LED luminaire with microprismatic cover PW. Version M73 (600 mm x 600mm).

Supplementary equipment
Optionally, the luminaire can be equipped with an emergency light system for ceiling recessing with an emergency light operation time of 3 hours. In emergency light operation, the luminaire luminous flux is 575 lm.

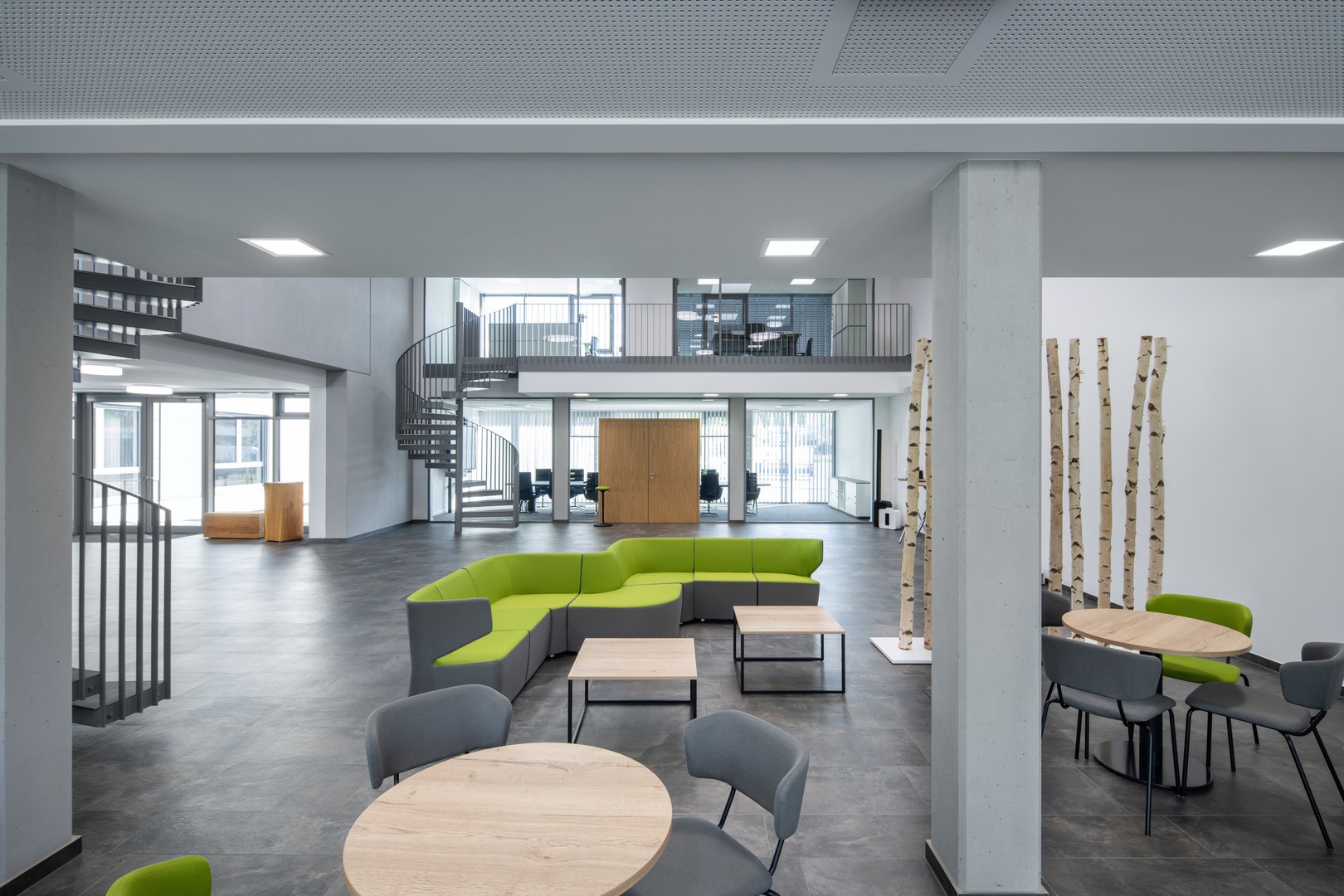

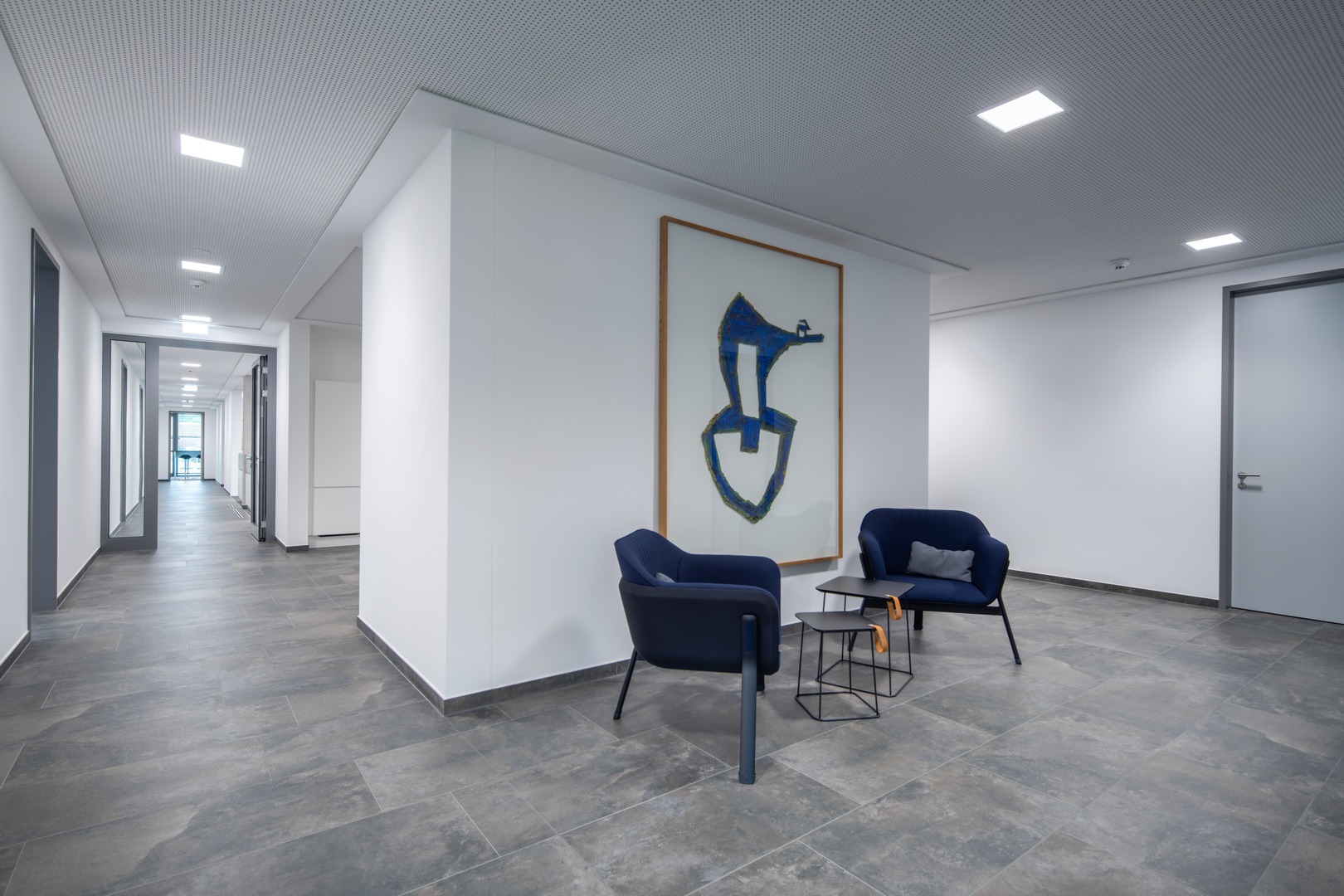

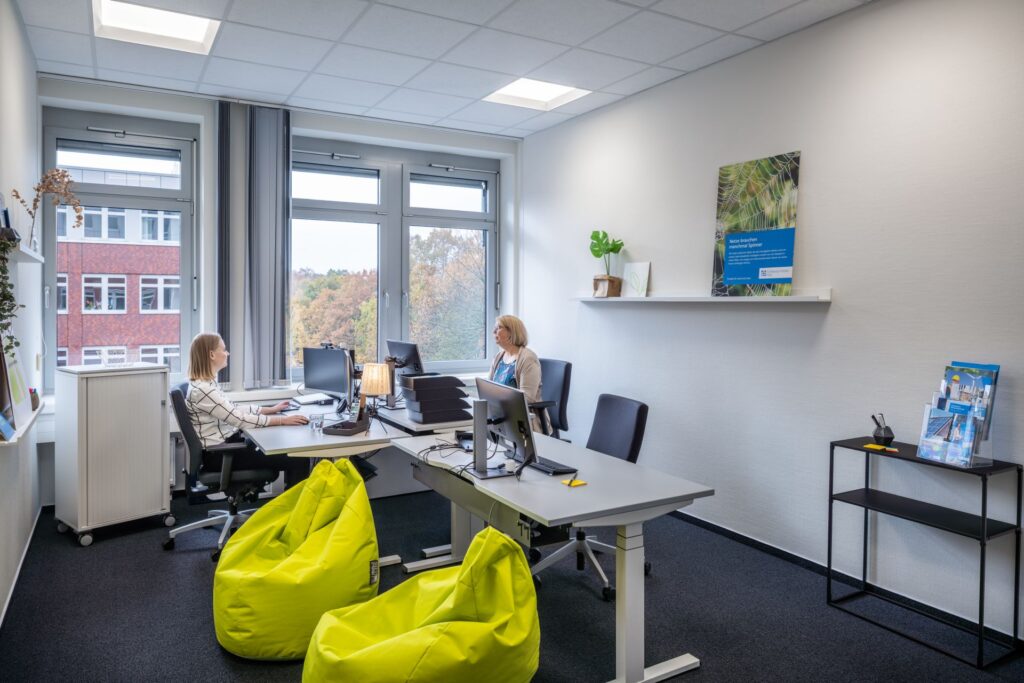

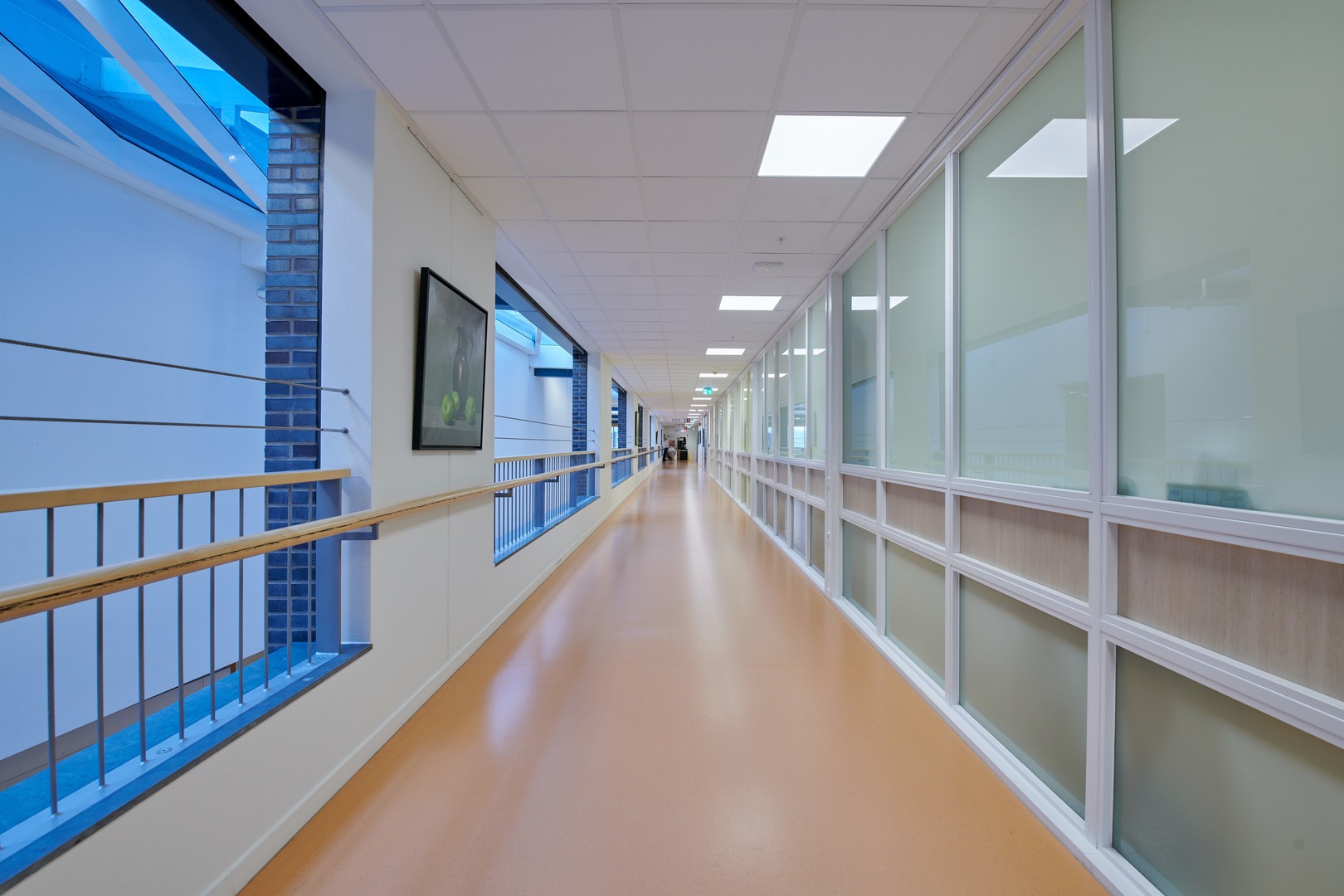

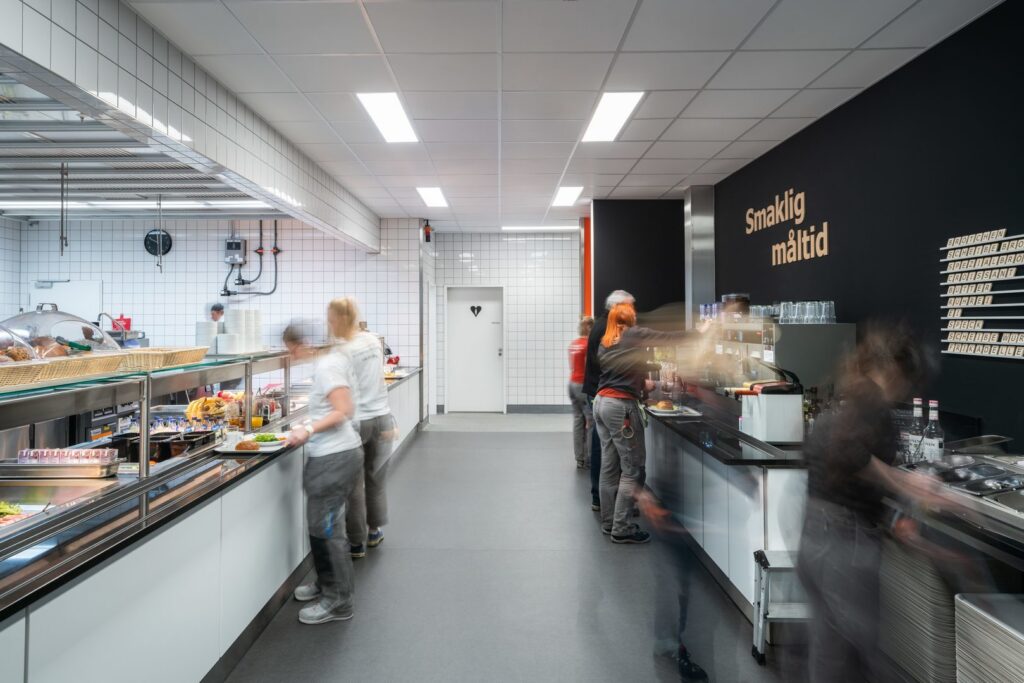

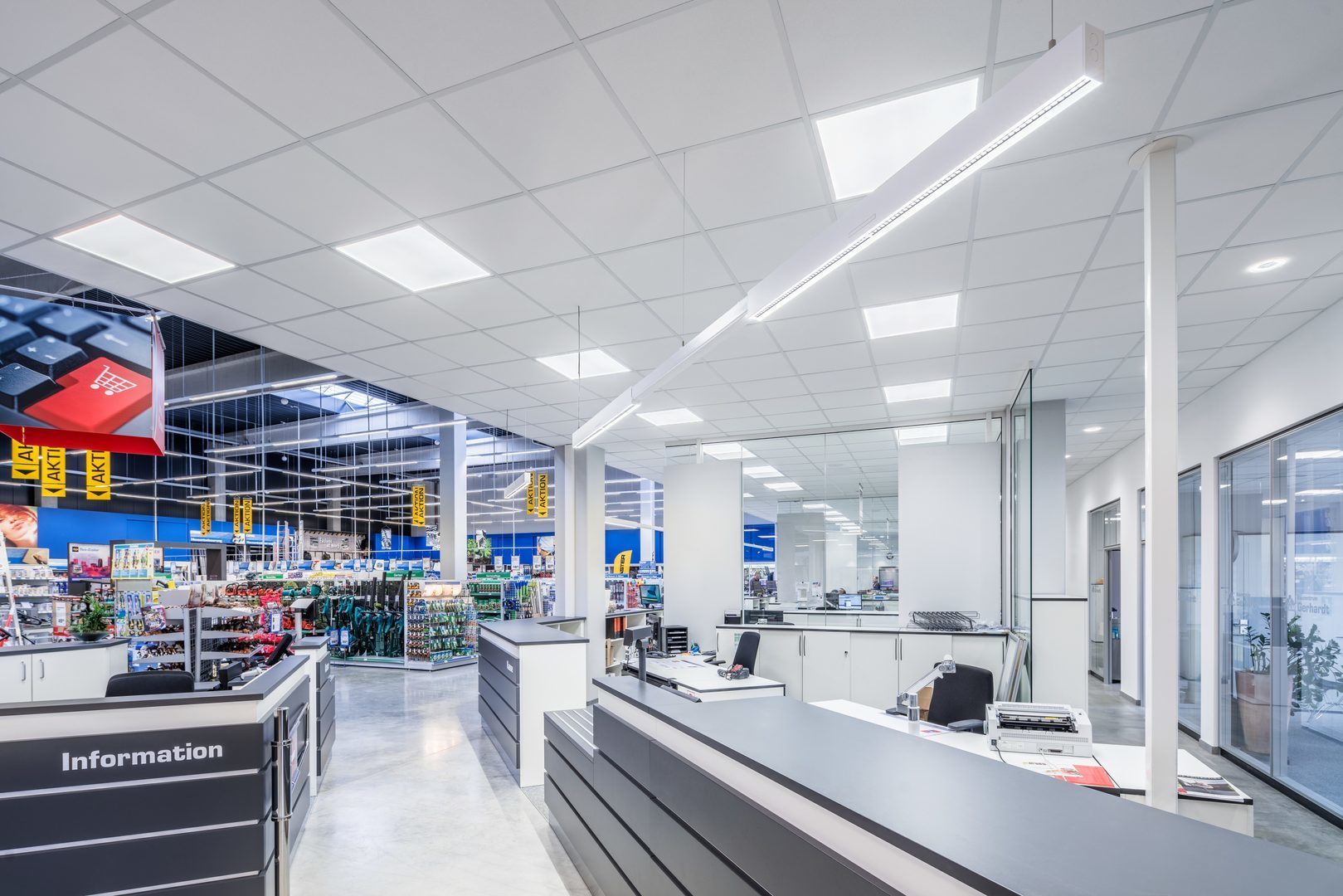

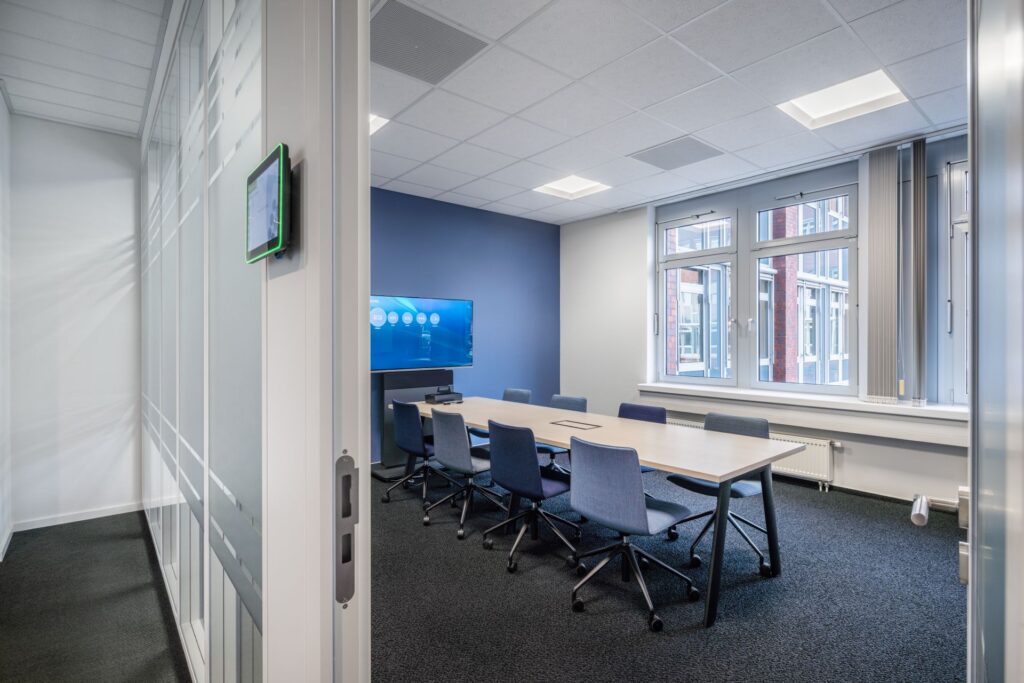

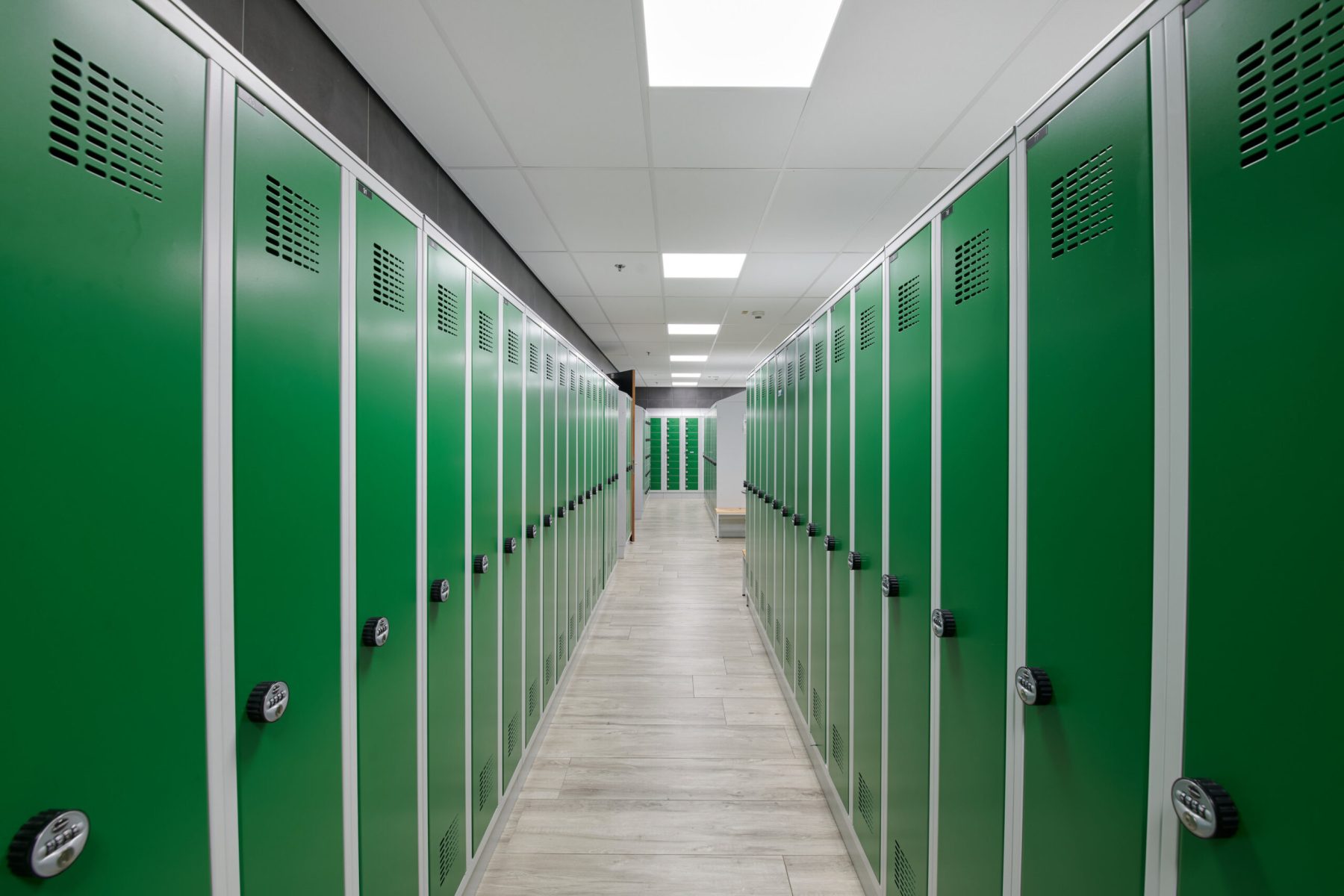

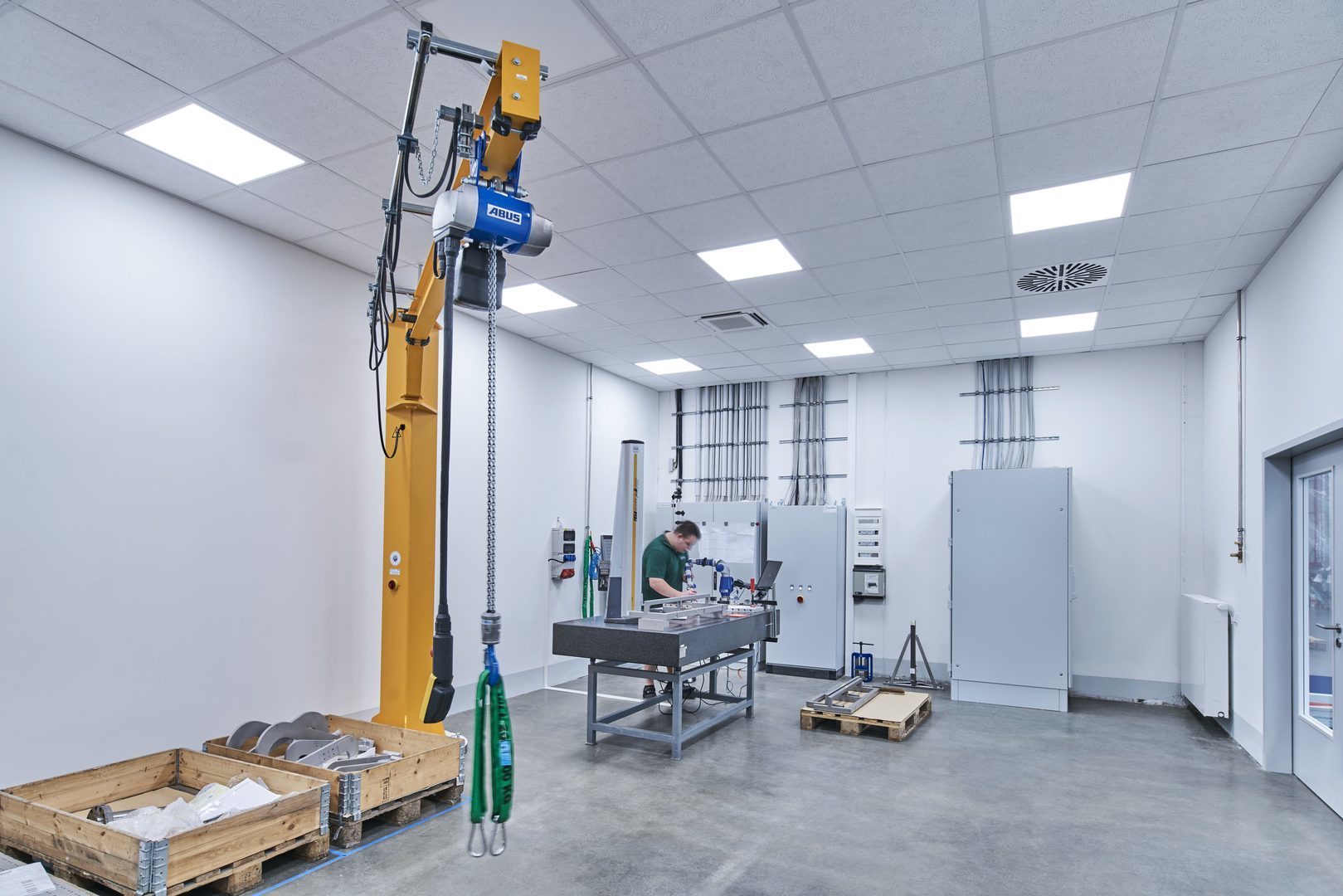

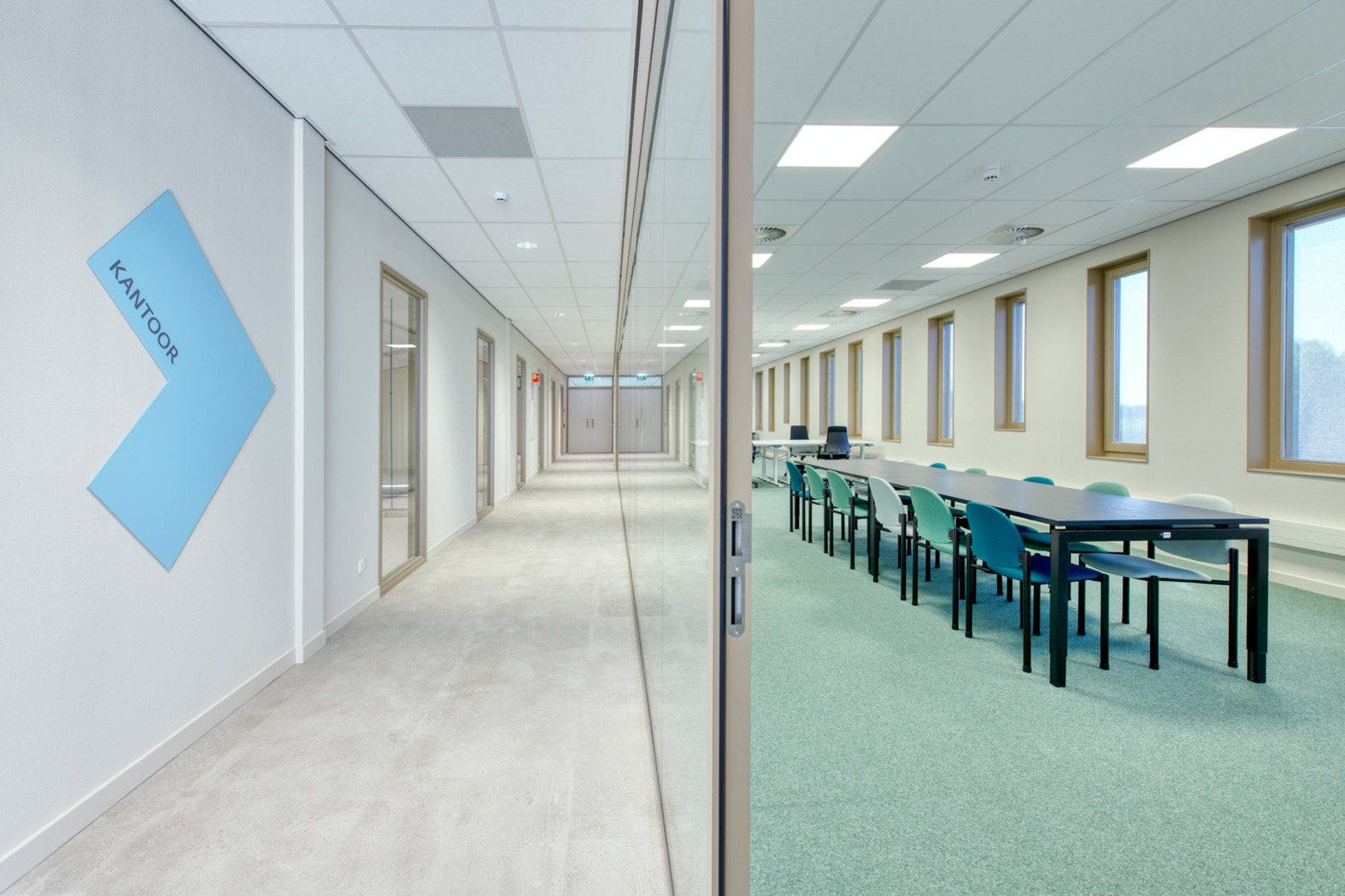

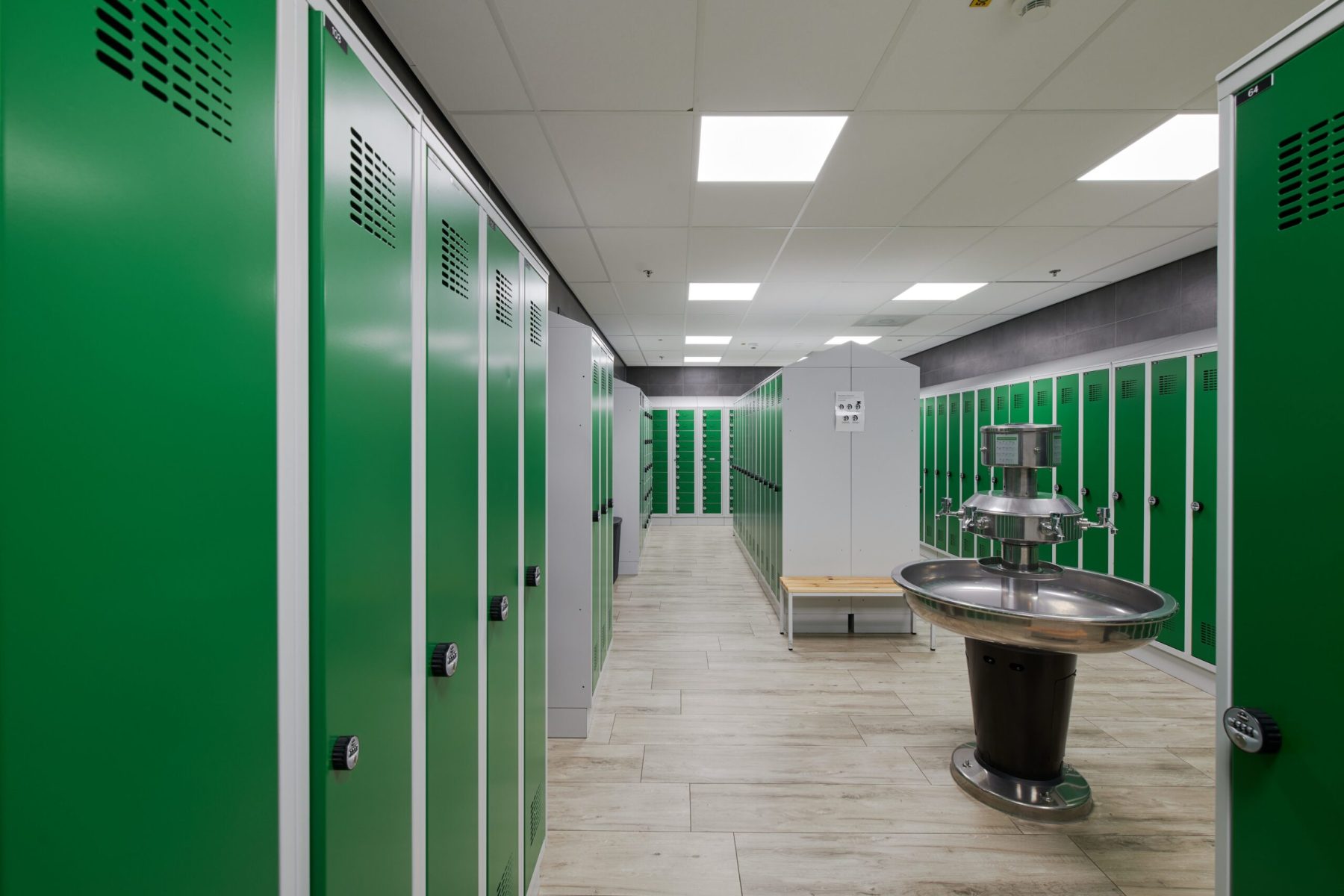

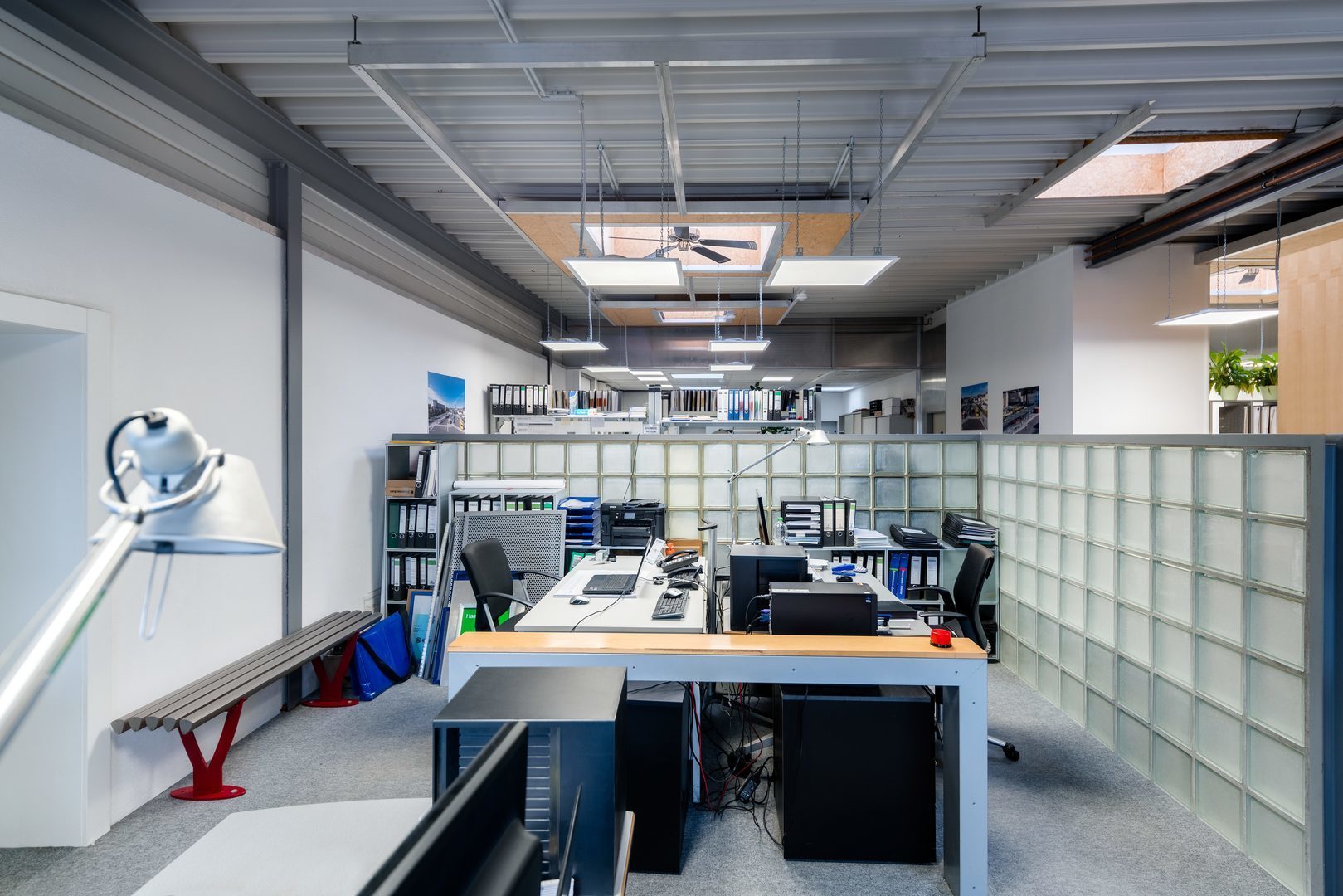

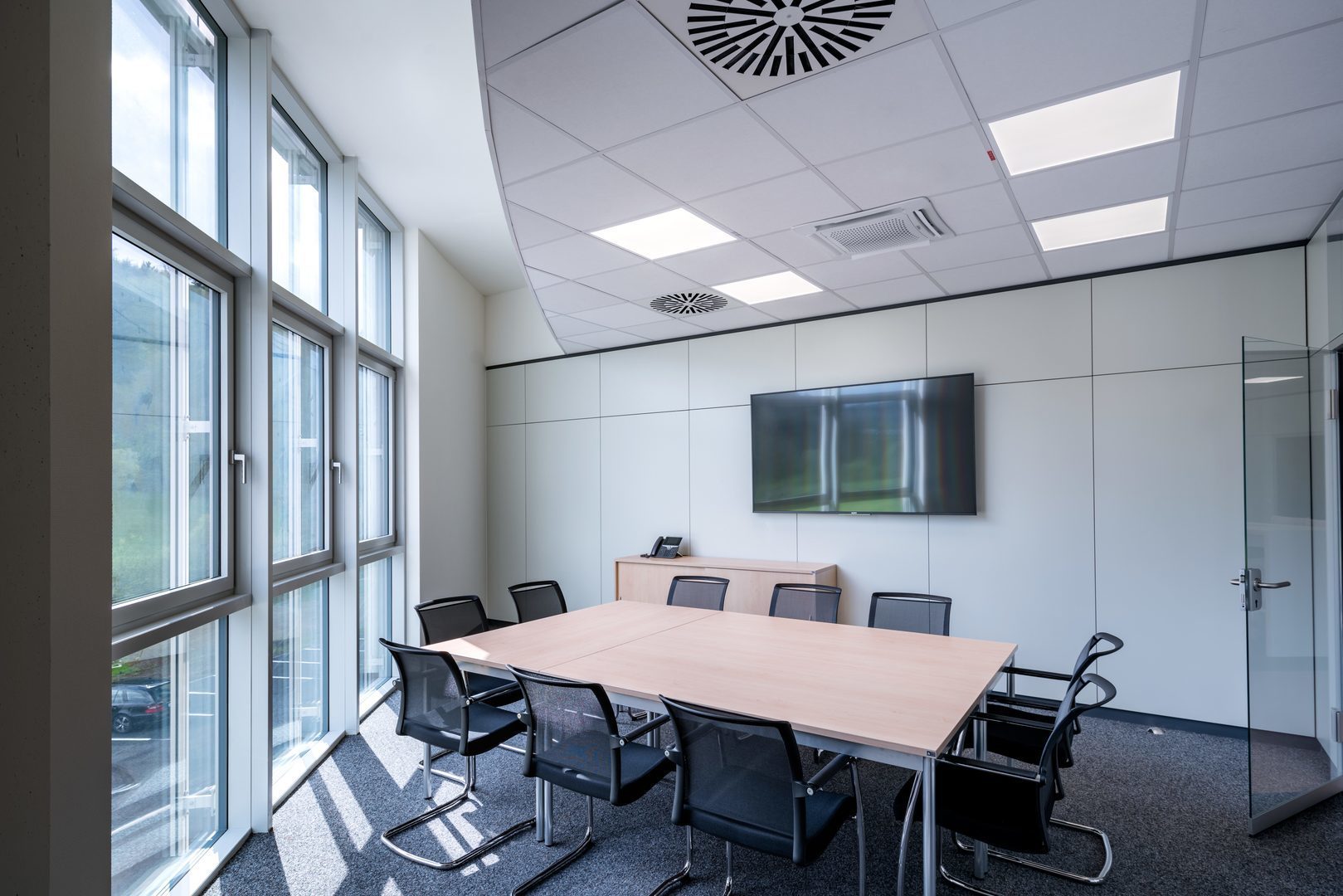

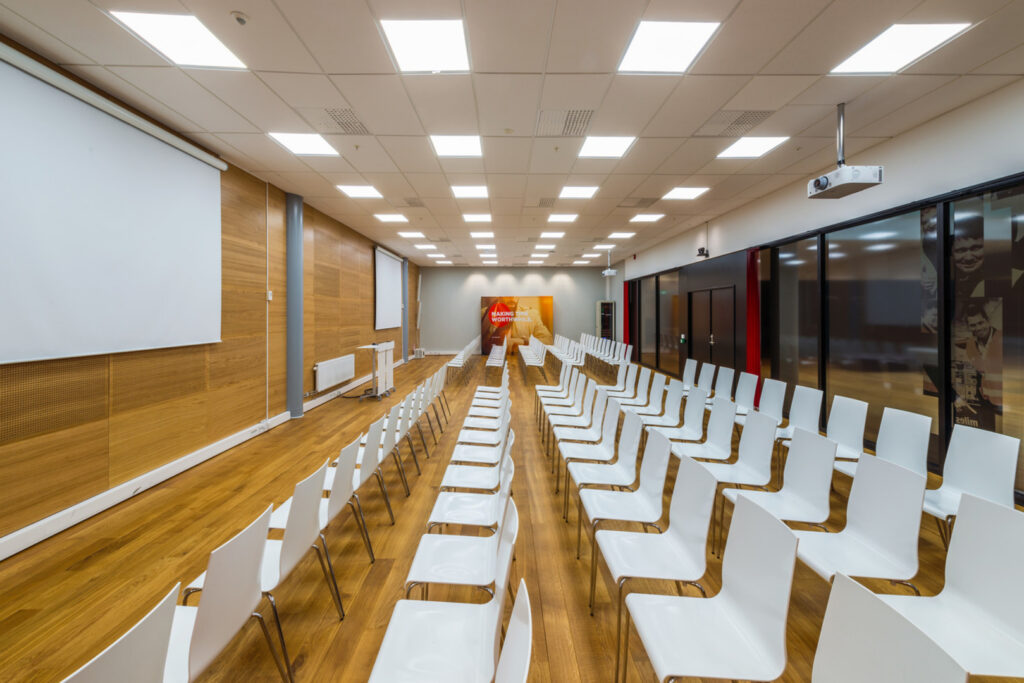

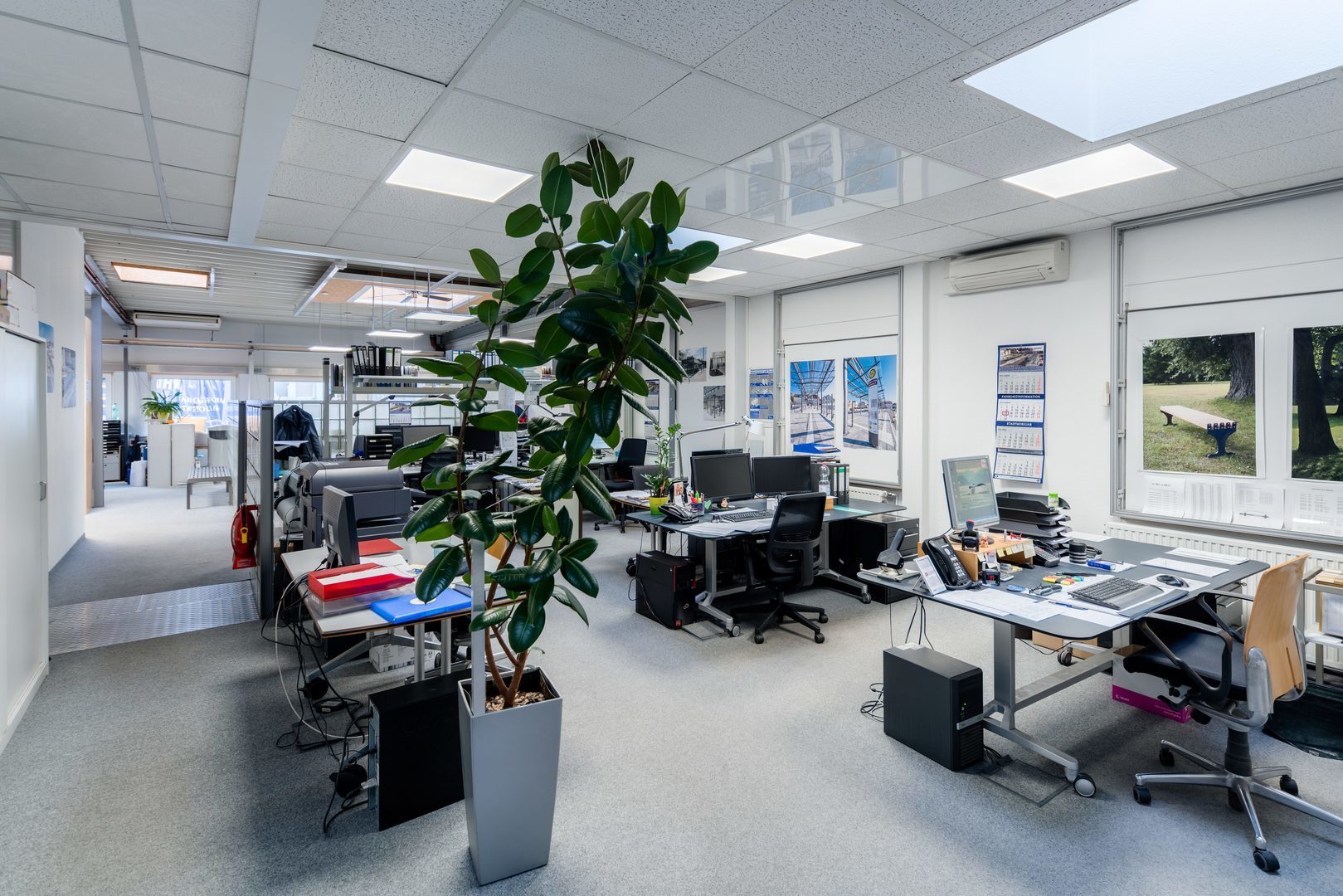

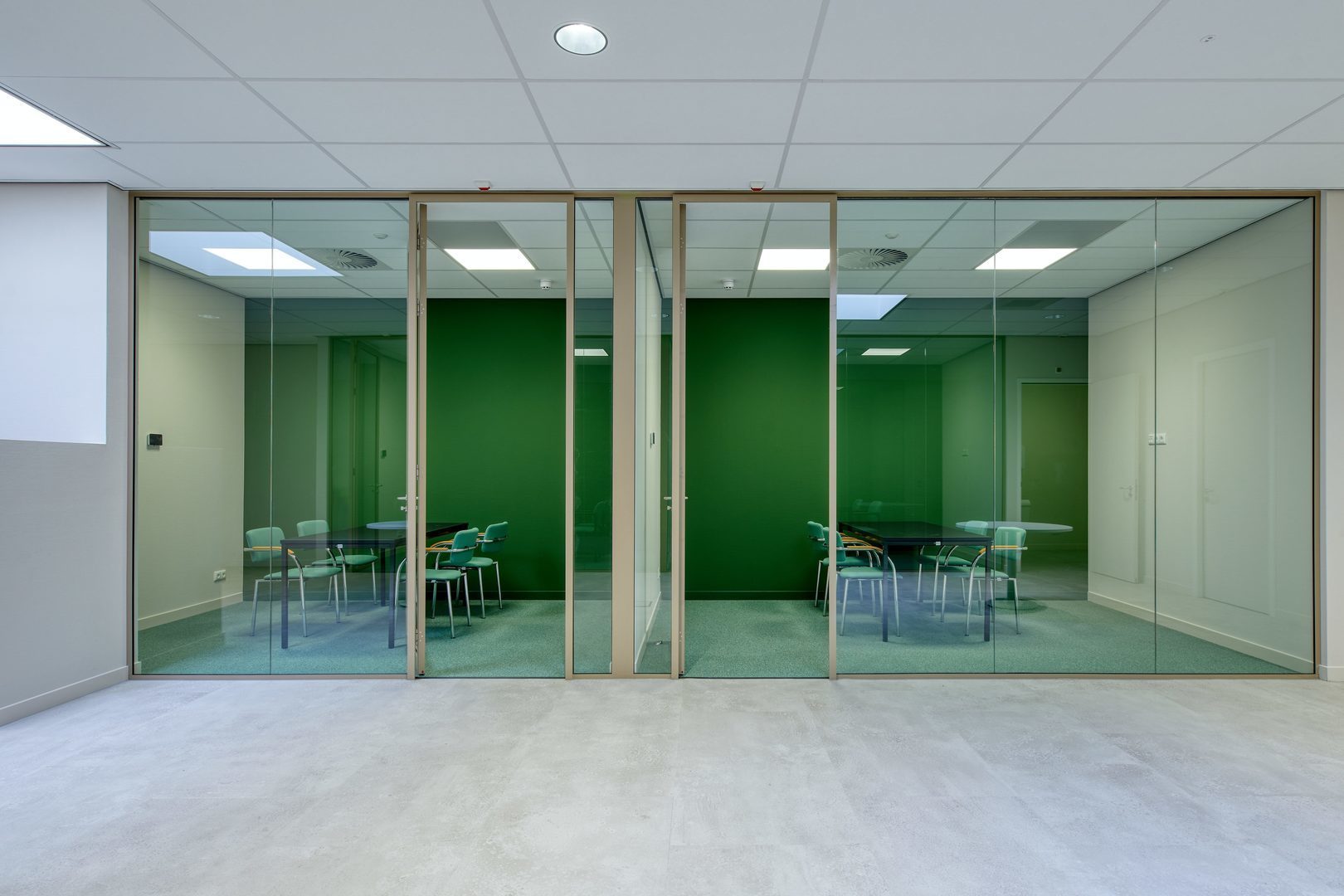

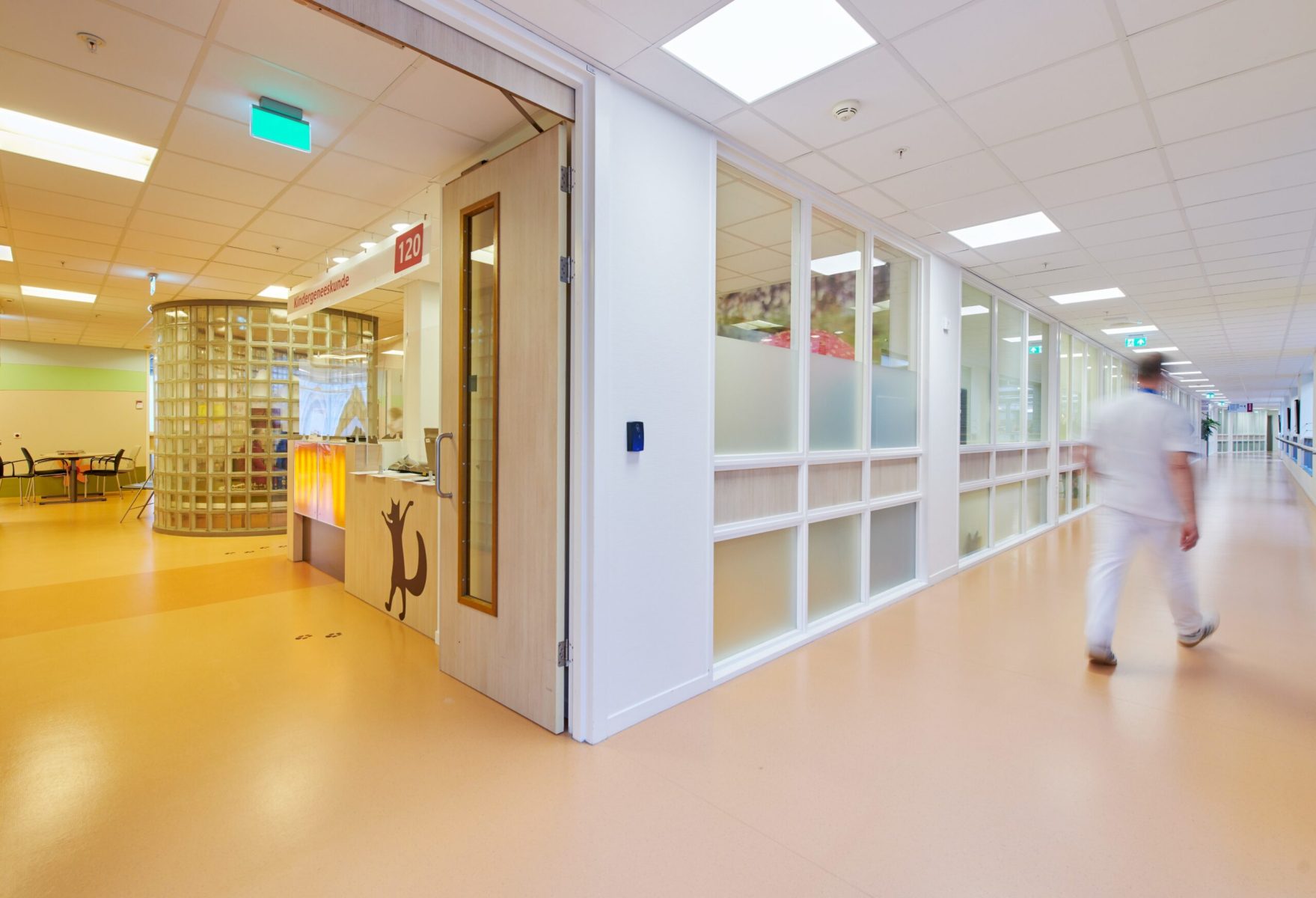

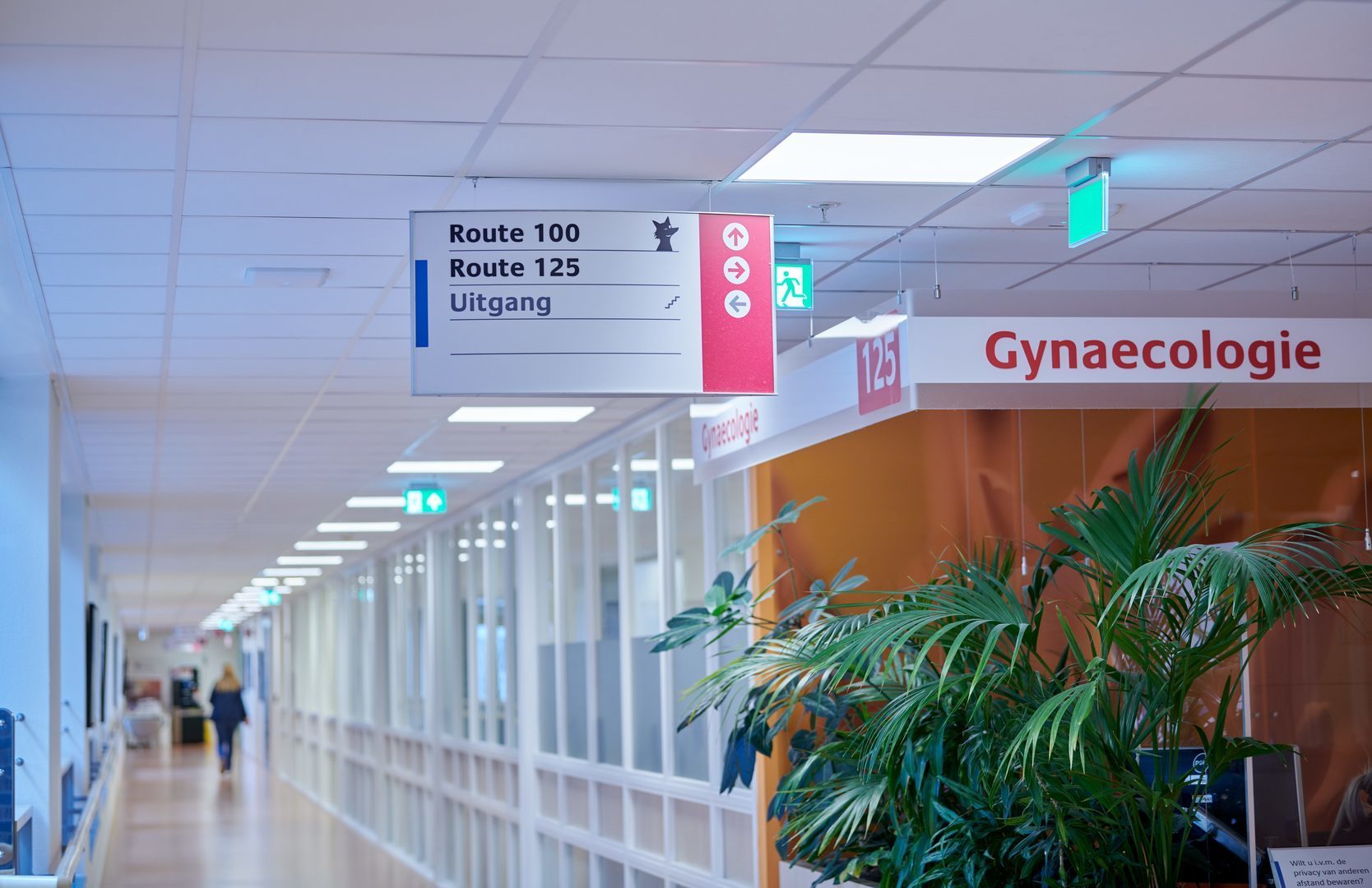

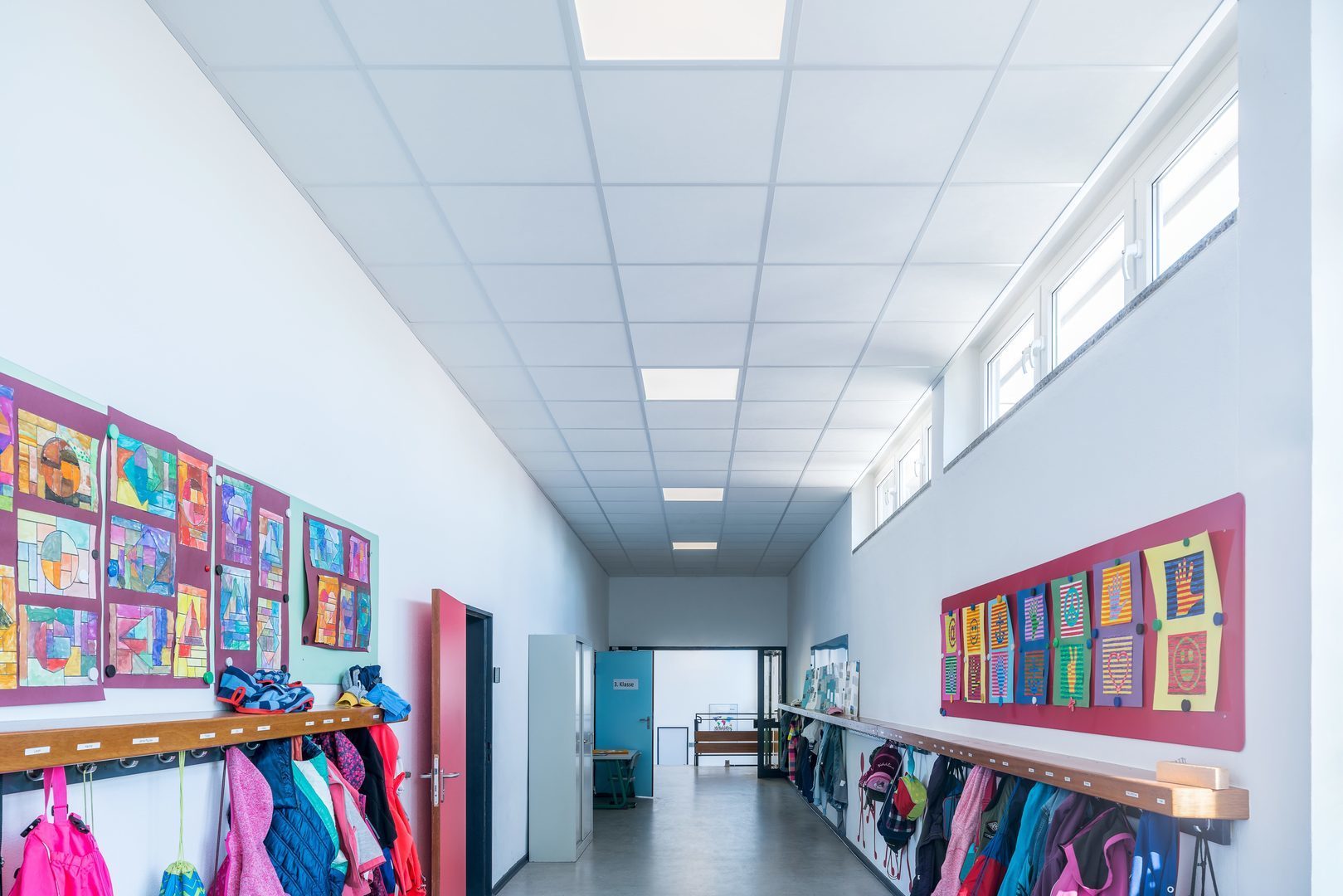

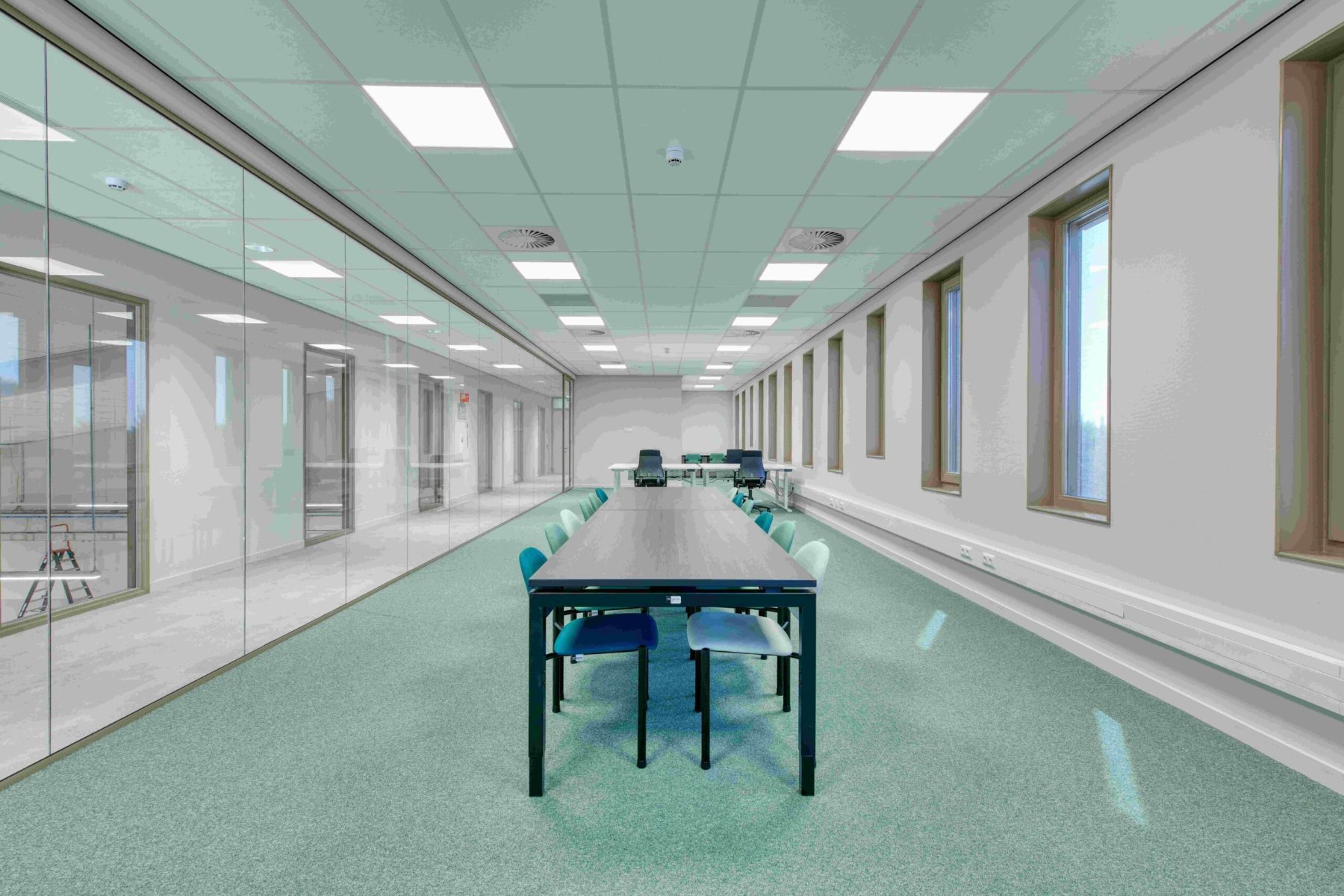

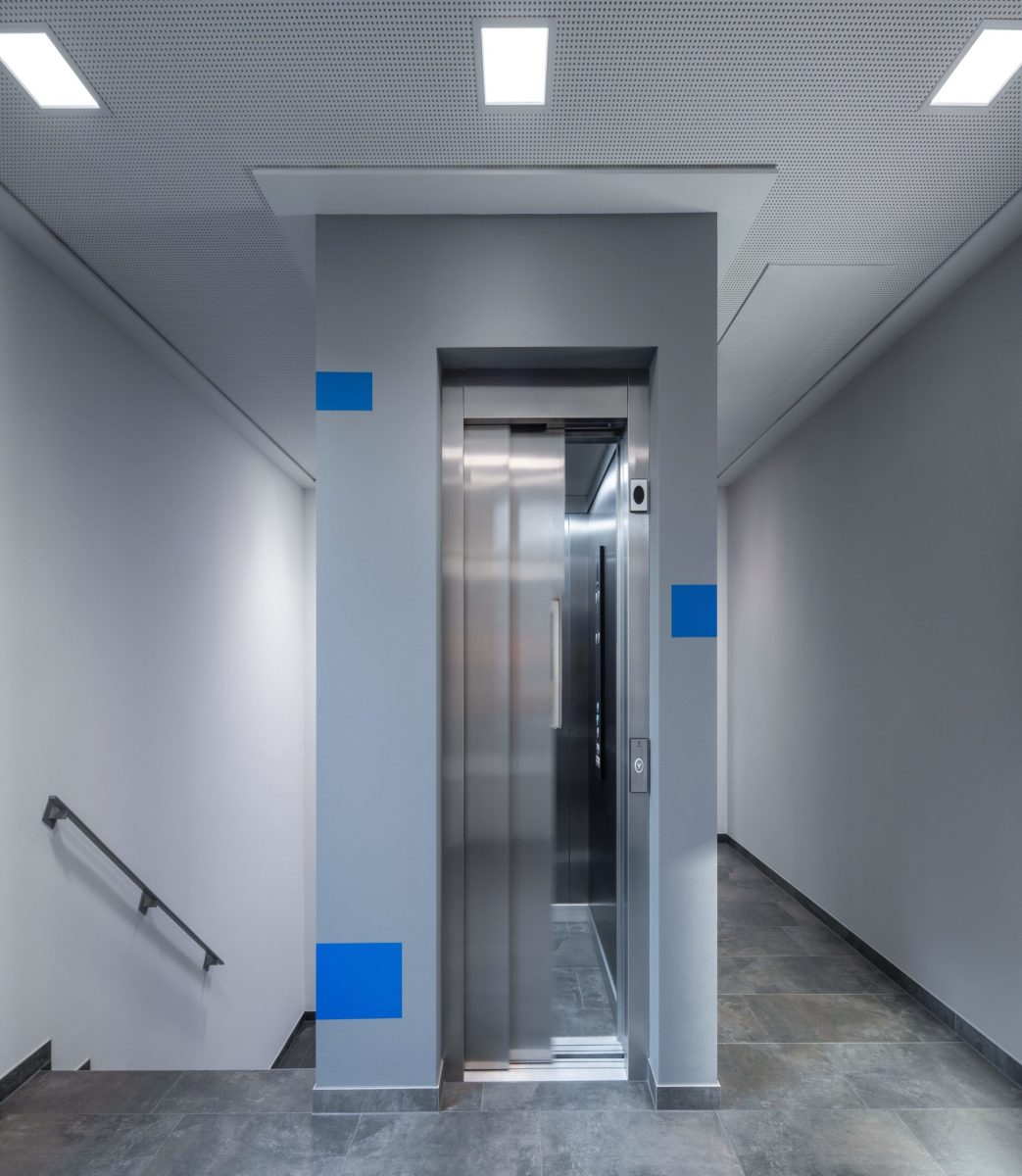

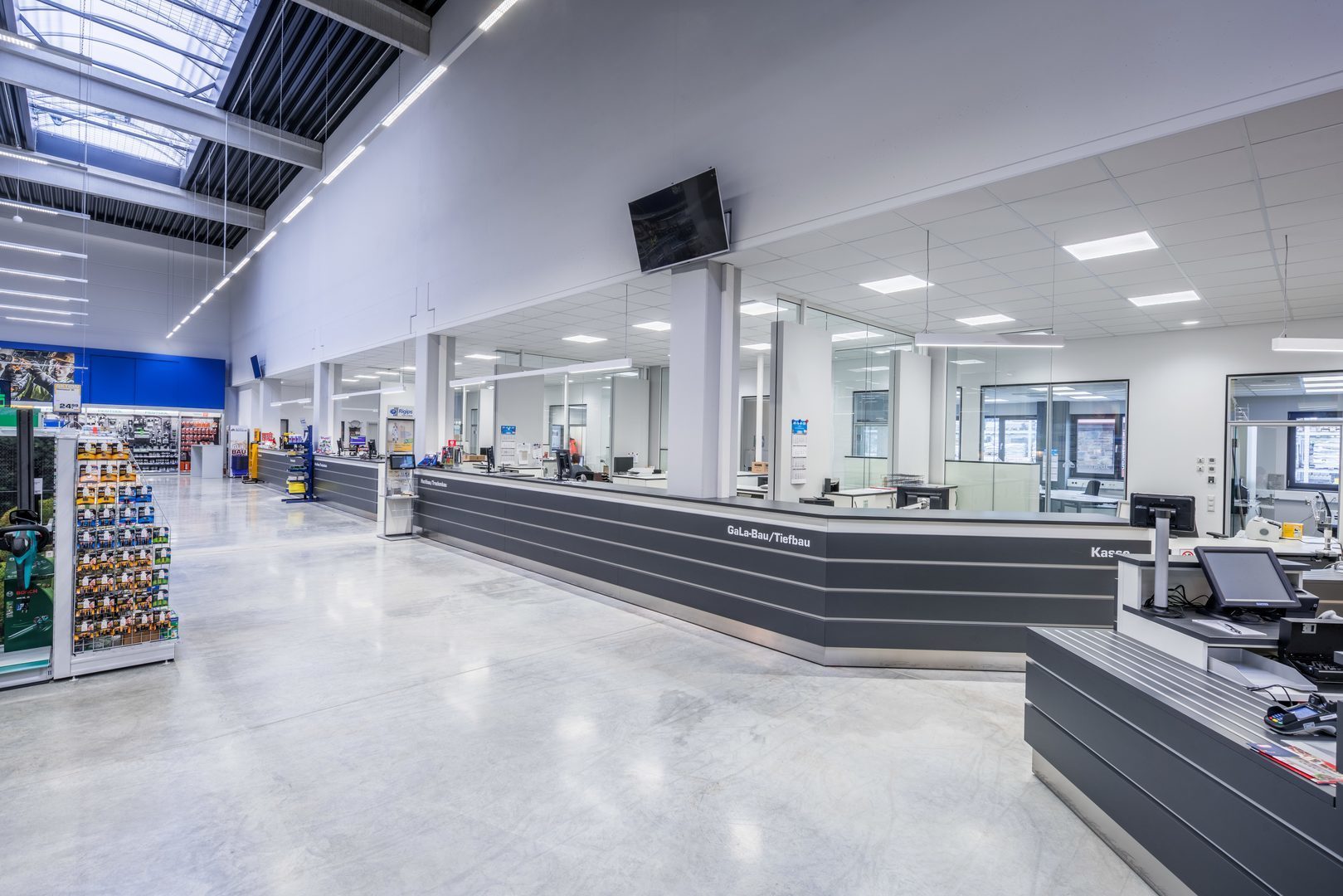

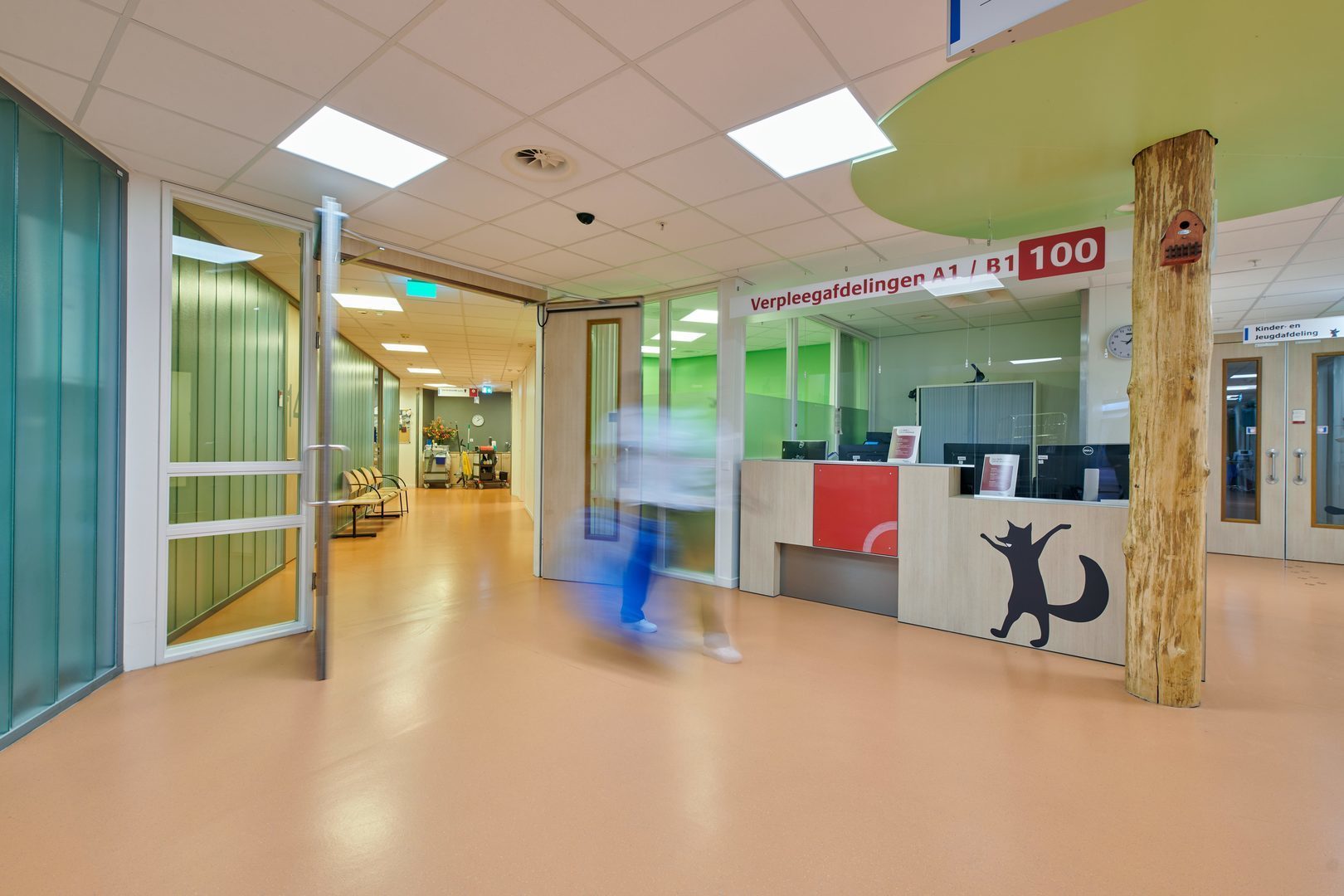

For workstations with computer screens. Offices, Corridors, Foyers, Conference rooms, Retail areas, waiting zones. Generation of an enhanced depth effect in the room.

Mounting methods

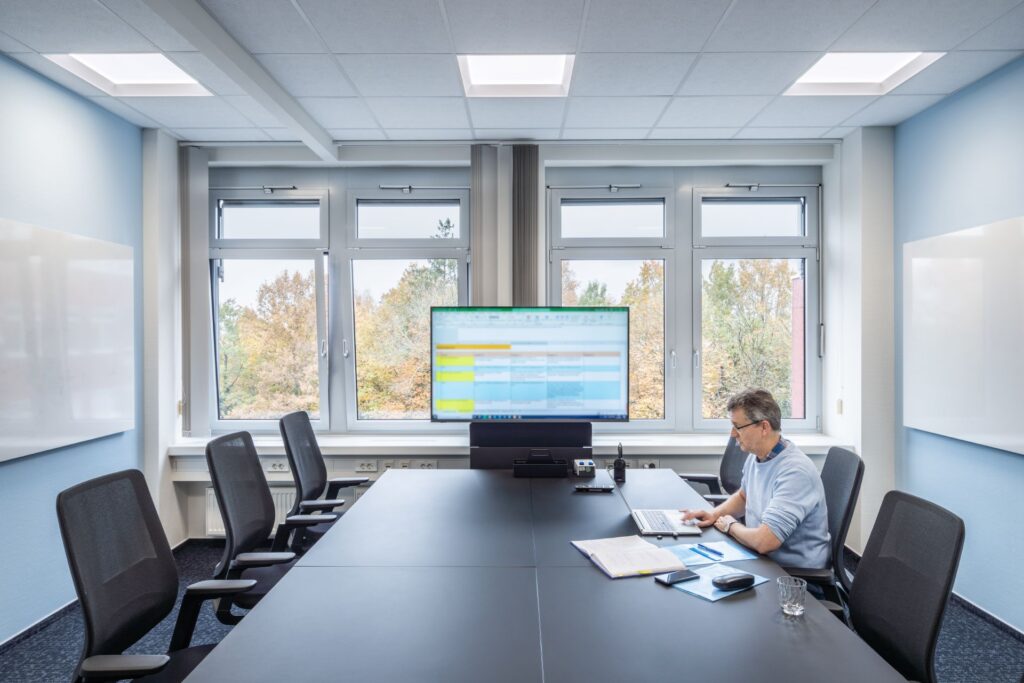

For system ceilings with exposed grids. .. The Sky frame, optionally available as an accessory, creates a room-atmospheric depth effect in the classic, flat modular ceiling; the 3-dimensional contour of a skylight is reproduced.

Optical system
The optical system consists of a highly efficient PMMA cover with microprisms. PW (prismatic wide). The microstructured PMMA prism surface of the optical system has a glare-reducing effect, is non-yellowing and dœs not cloud. With narrow-wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 3000 cd/² for beam angle above 65° all-round. Harmonious light effect due to homogeneously illuminated light emission. Individual design of the light emission surface (e.g. with printing) and other special solutions are possible on request. LED system connected load 22,00 W, connected load 22,00 W, Power Faktor λ > 0,9, luminous efficiency of luminaire 131 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 100,000 h, mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).

Luminaire body
Luminaire body of extruded aluminium profile. Surface coated white, (RAL 9016). The luminaire frame is profiled in a 3-dimensional way to generate a depth effect on the ceiling. Luminaire can be covered with insulatin material at ta 25°C, ta35 °C without insulation materila can be also be used. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, Protection rating on room side: IP40, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 3,4 kg.

Electrical connection
Polarity-protected rapid connection with mains through-wiring up to Ø 2.5 mm². Connection of the ballast unit to the luminaire (Plug ‘N Play). The luminaire’s packaging concept facilitates separate removal of the control gear unit for pre-assembly, leaving the remaining luminaire components protected until final assembly.

Electrical version
With external operating device, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Control gear unit is open-circuit proof and protected against faulty connection, short circuit, overload and overtemperature. Output ripple of the control gear unit ≤ 4 % for effective control of the LED system and for flicker-free light. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.

The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. The application variety of the product series is underlined by variants regarding luminous flux packages, light distribution curves and protection ratings. On request, the basic range can be expanded with project-specific luminaire features.

Ytterligare information

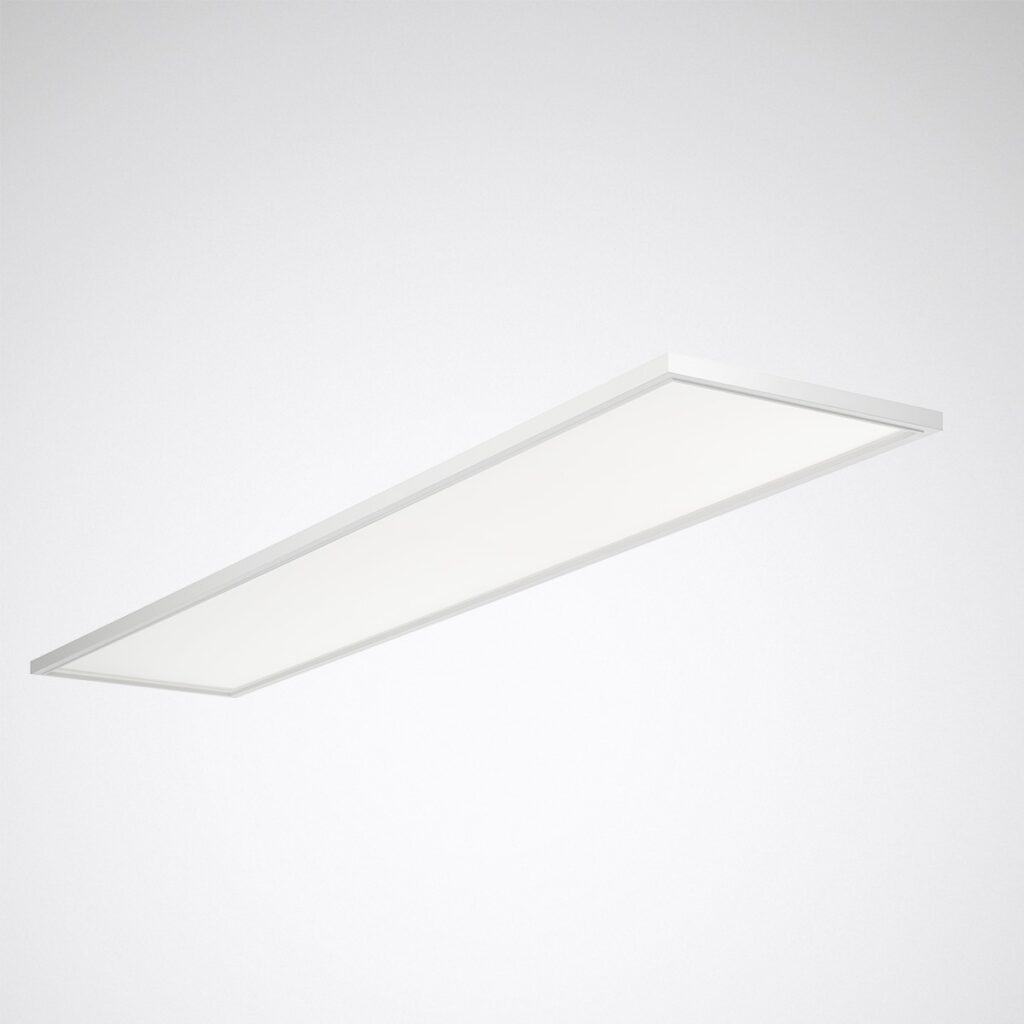

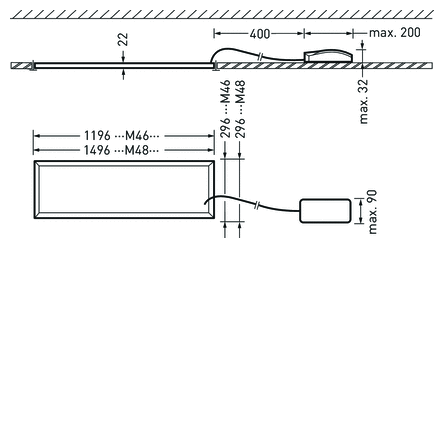

M46: 300×1200 mm, M48: 300×1500 mm, M52: 312,5×312,5 mm, M57: 312,5×1250 mm, M59: 312,5×1550 mm, M73: 600×600 mm, M84: 625×625 mm


DW19: Mikroprismatisk, UGR<19, P-WW: Mikroprismatisk, wallwasher, PW19-X: Mikroprismatisk med ljuslinje, UGR<19, PW19: Mikroprismatisk, UGR<19, RAV: Wallwasher reflektor


2 000 lm, 3 000 lm, 4 200 lm, 4 500 lm, 5 200 lm, 5 300 lm, 6 300 lm


3000K, 4000K, HCL (Variabel 2700-6500K)


Ra>80, Ra>90


ET: Tänd/släck, ETDD: DALI, ETDD8: DALI typ 8


Utan snabbkoppling, Wieland
