Arimo Fit IP54

Artikelnr: ArimoF-IP54 Kategori:

Beskrivning

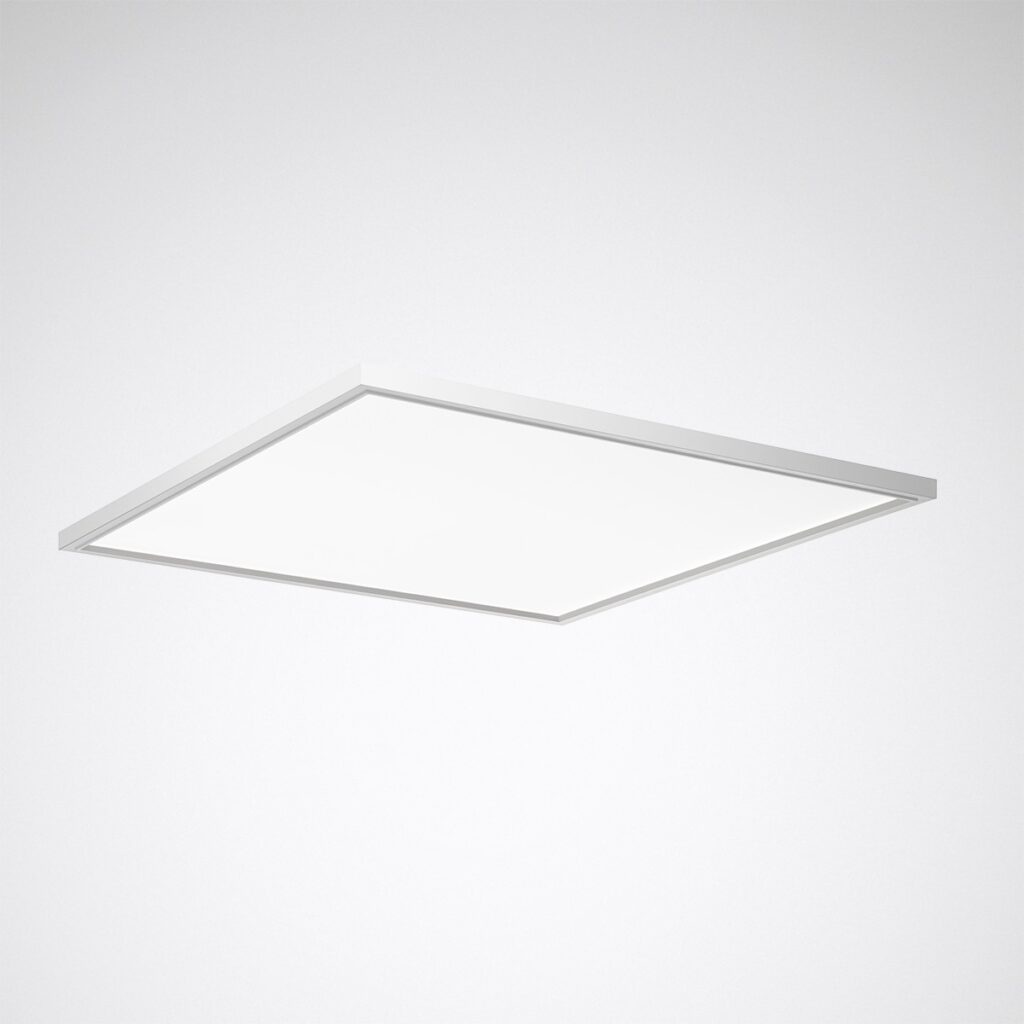

Luminaire type
Square recessed LED luminaire with translucent cover DW. Version M73 (600 mm x 600mm). Version with increased IP54 protection rating on room side.

Supplementary equipment
Optionally, the luminaire can be equipped with an emergency light system for ceiling recessing with an emergency light operation time of 3 hours. In emergency light operation, the luminaire luminous flux is 575 lm.

Applications
For workstations with computer screens. Offices, Corridors, Foyers, Conference rooms, Retail areas, waiting zones. Generation of an enhanced depth effect in the room. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500).

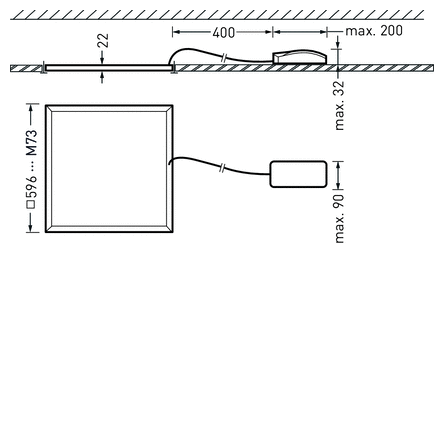

Mounting methods
For system ceilings with exposed grids. .. The Sky frame, optionally available as an accessory, creates a room-atmospheric depth effect in the classic, flat modular ceiling; the 3-dimensional contour of a skylight is reproduced.

Optical system
The optical system consists of a translucent, non-yellowing PMMA cover with high transmission factor. The cover surface is smooth and free of visible microprism structures. With narrow-wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 3000 cd/² for beam angle above 65° all-round. Harmonious light effect due to homogeneously illuminated light emission. Individual design of the light emission surface (e.g. with printing) and other special solutions are possible on request. LED system connected load 31,00 W, connected load 31,00 W, Power Faktor λ > 0,95, luminous efficiency of luminaire 135 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 100,000 h, mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).

Luminaire body
Luminaire body of extruded aluminium profile. Surface coated white, (RAL 9016). The luminaire frame is profiled in a 3-dimensional way to generate a depth effect on the ceiling. Luminaire can be covered with insulatin material at ta 25°C, ta35 °C without insulation materila can be also be used. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, Protection rating on room side: IP54, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 3,4 kg.

Electrical connection
Polarity-protected rapid connection with mains through-wiring up to Ø 2.5 mm². Connection of the ballast unit to the luminaire (Plug ‘N Play). The luminaire’s packaging concept facilitates separate removal of the control gear unit for pre-assembly, leaving the remaining luminaire components protected until final assembly.

Electrical version
With external operating device, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Control gear unit is open-circuit proof and protected against faulty connection, short circuit, overload and overtemperature. Output ripple of the control gear unit ≤ 4 % for effective control of the LED system and for flicker-free light. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.

The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. The application variety of the product series is underlined by variants regarding luminous flux packages, light distribution curves and protection ratings. On request, the basic range can be expanded with project-specific luminaire features.

Ytterligare information

Modulstorlek

M46: 300×1200 mm, M48: 300×1500 mm, M52: 312,5×312,5 mm, M57: 312,5×1250 mm, M59: 312,5×1550 mm, M73: 600×600 mm, M84: 625×625 mm

Styrning

ET: Tänd/släck, ETDD: DALI
