Luminaire type

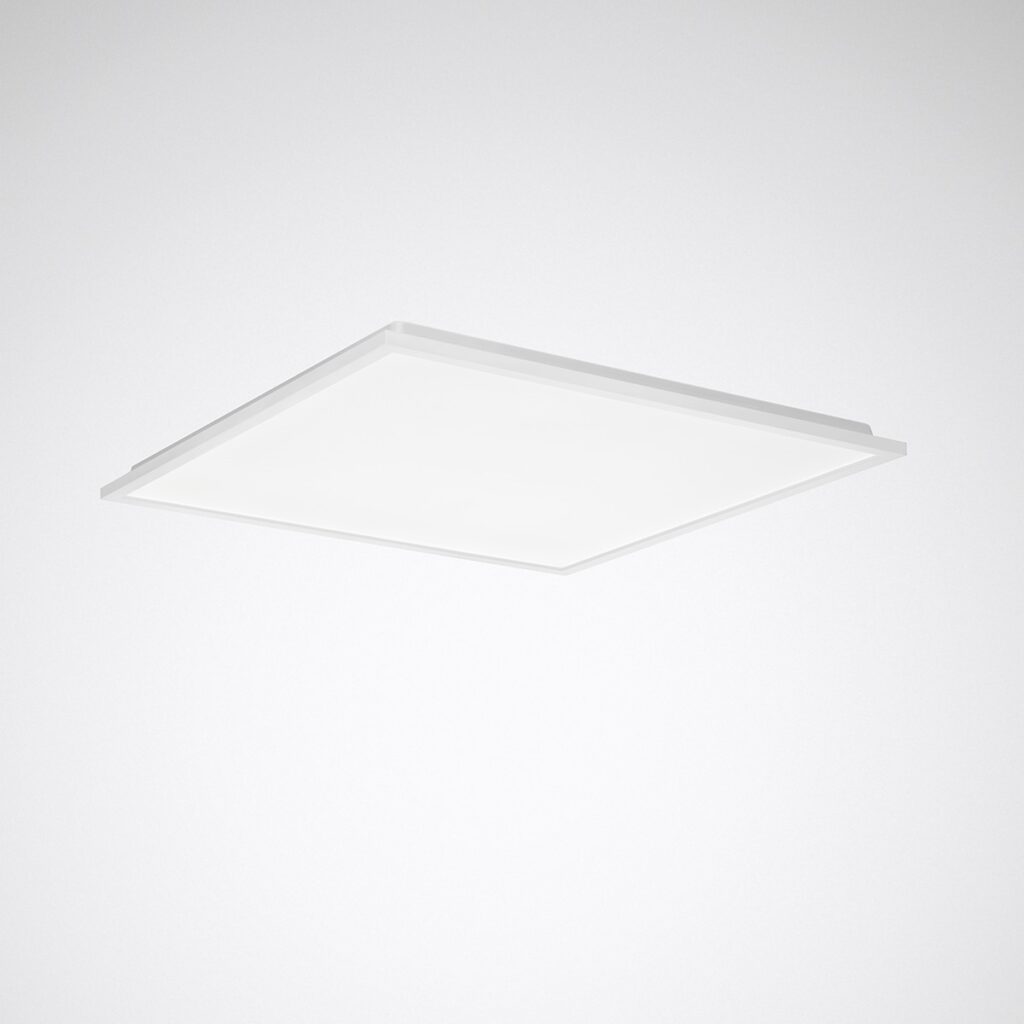

Recessed LED luminaire with microprismatic cover. Version M73 (600 mm x 600mm).
Applications

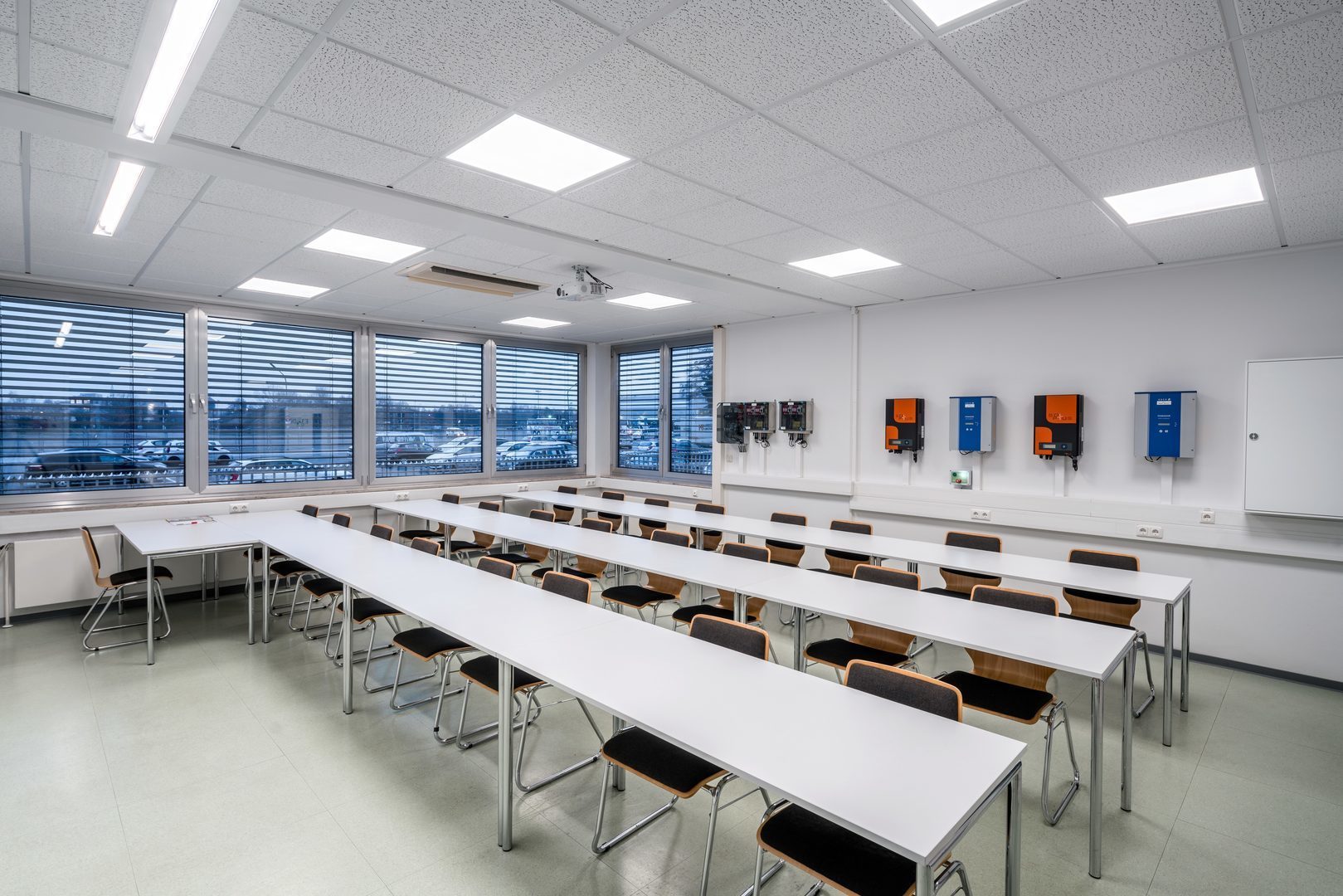

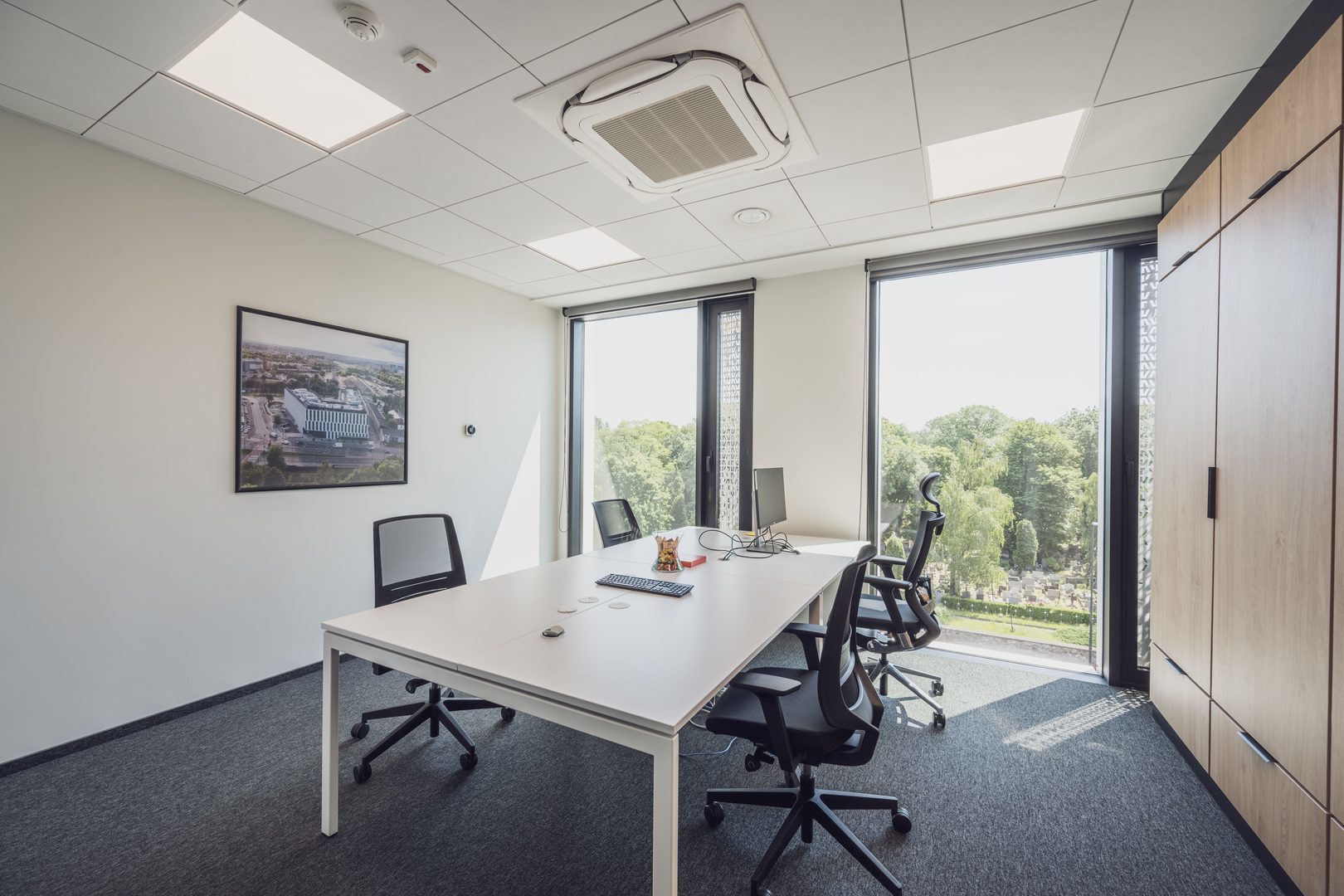

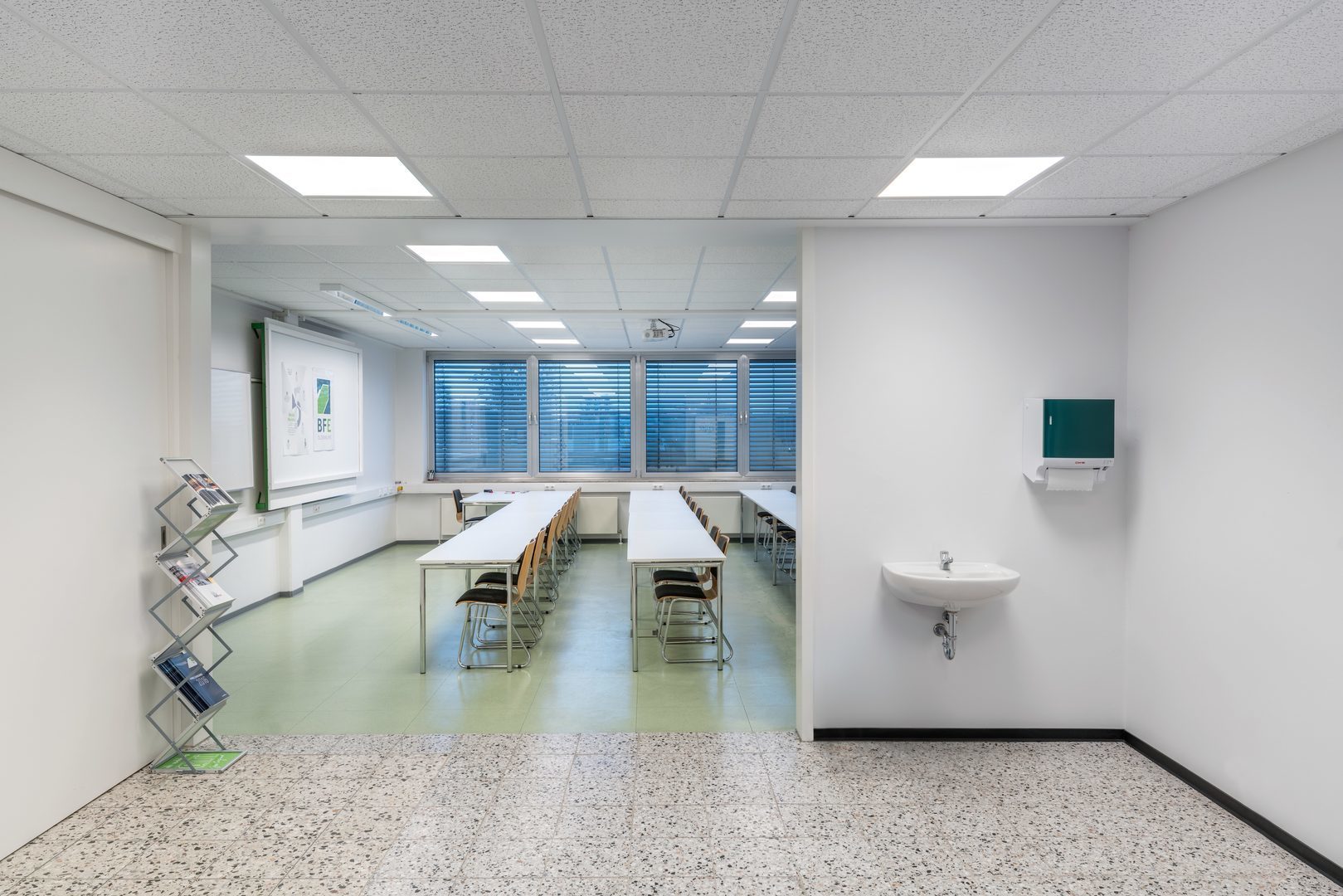

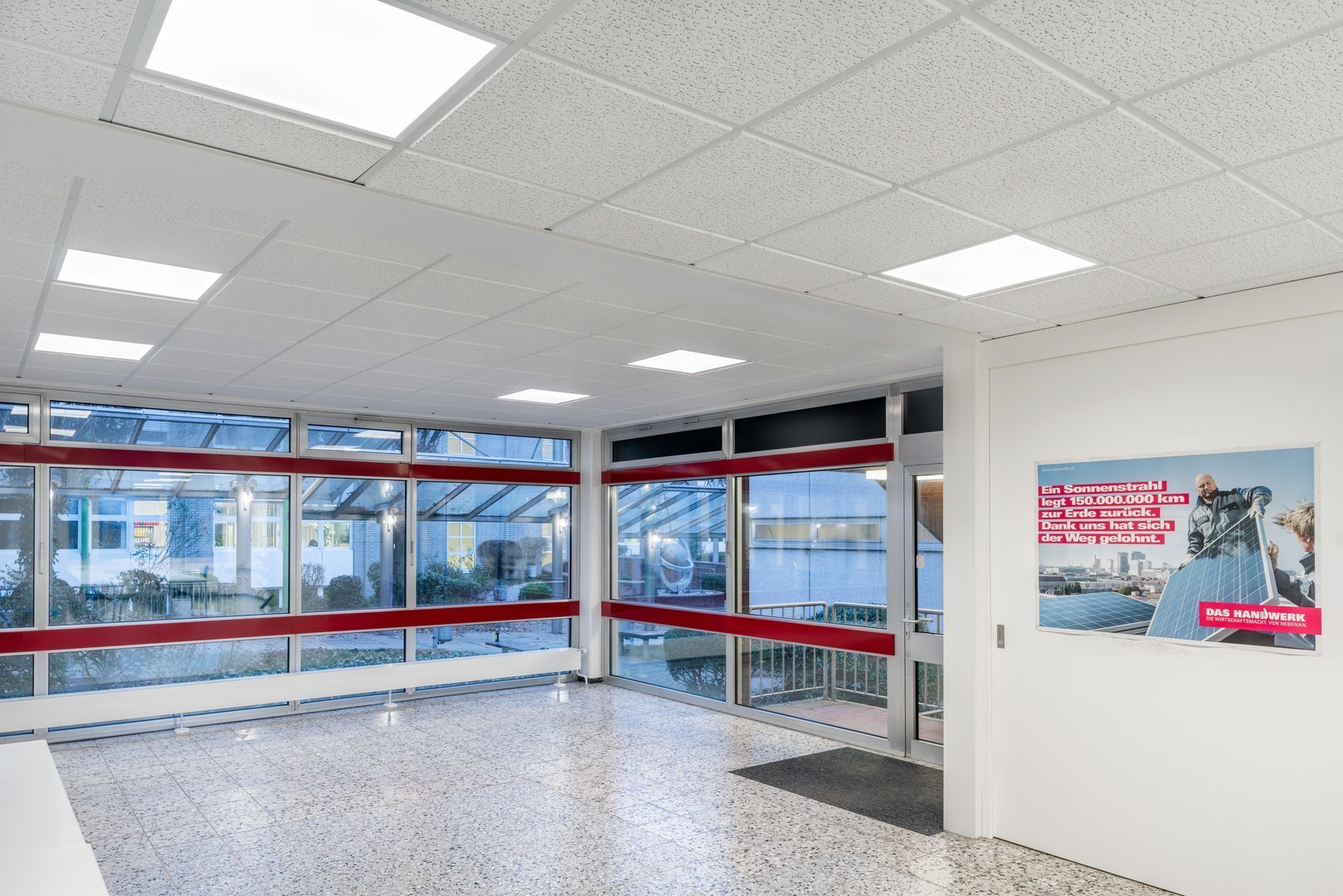

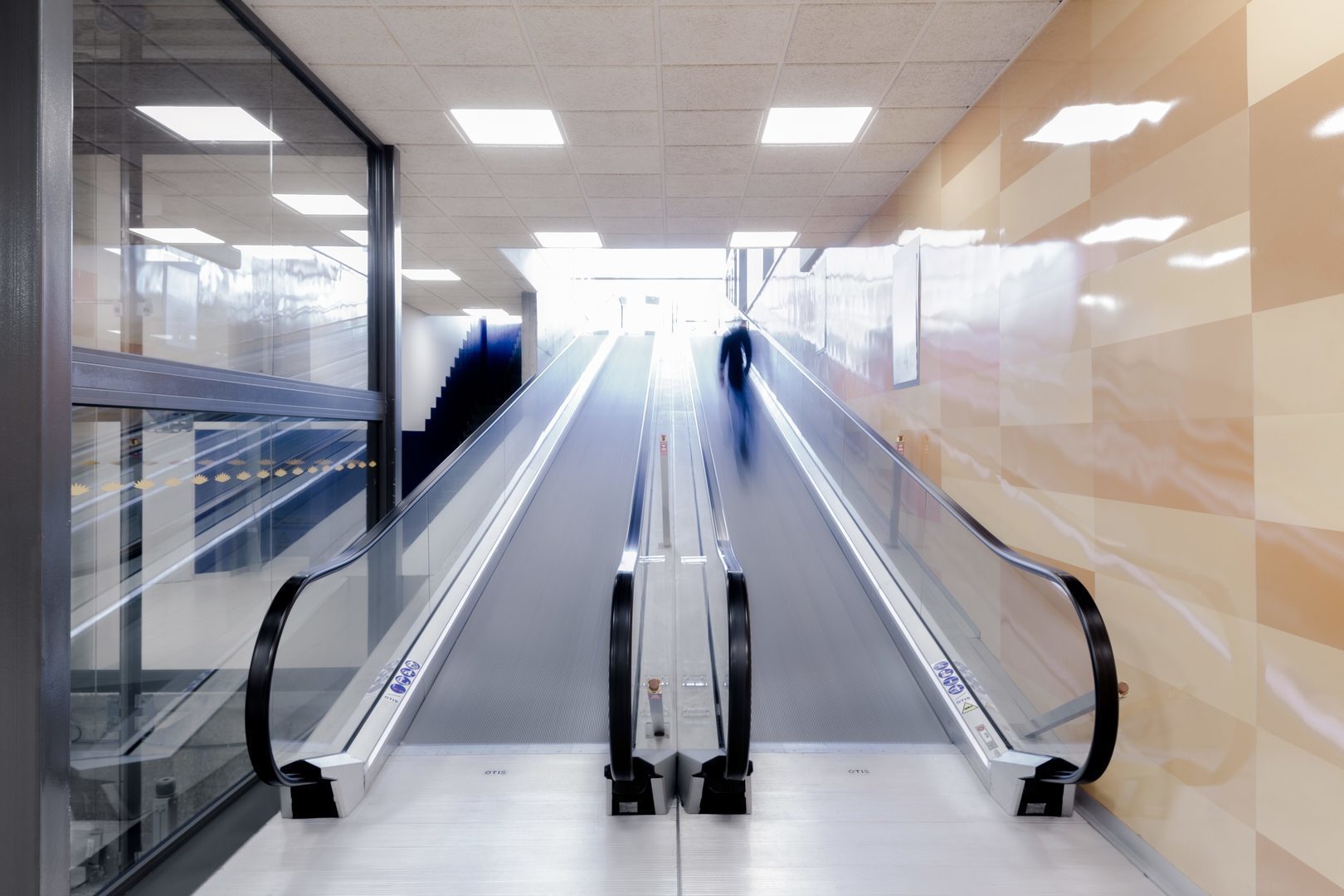

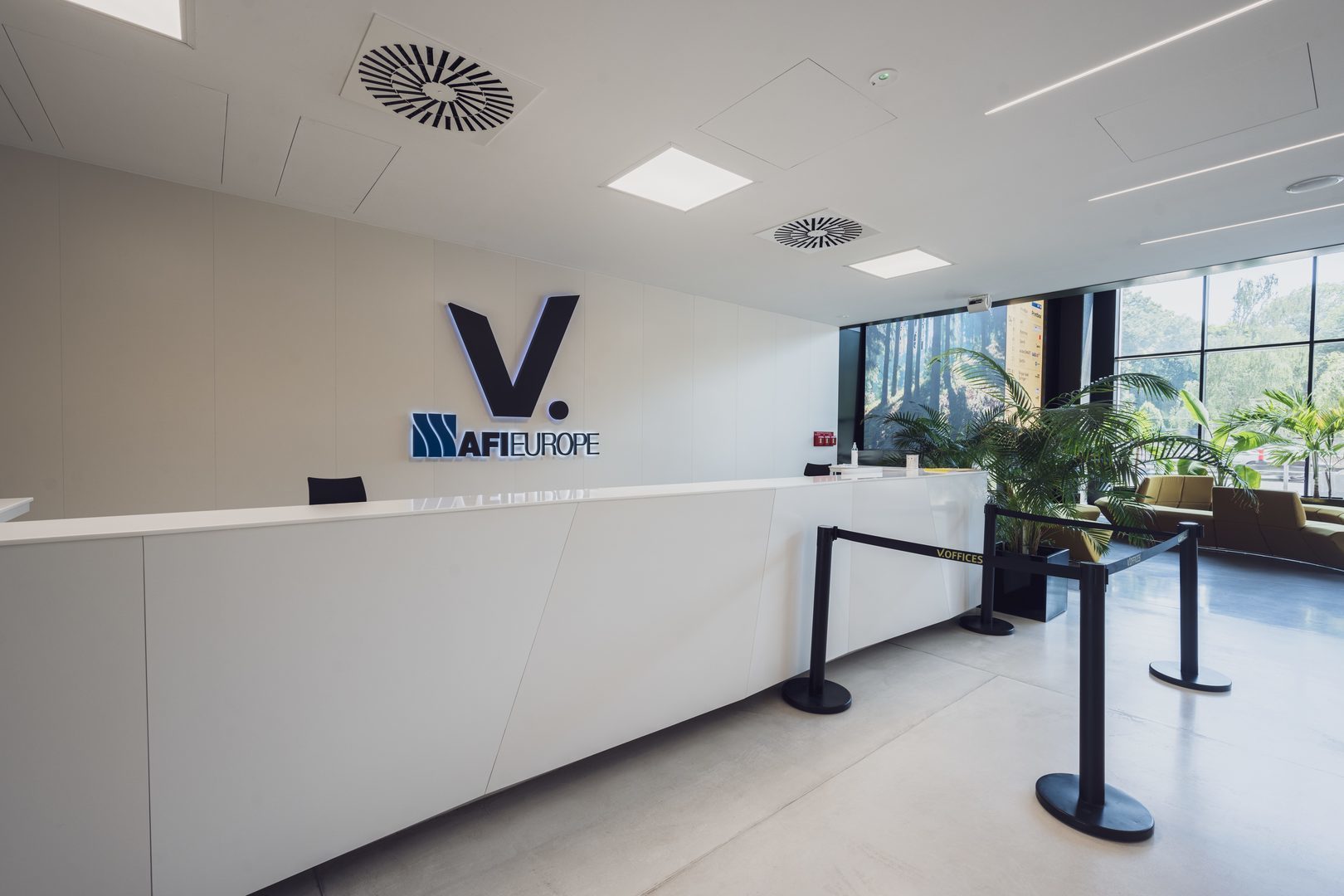

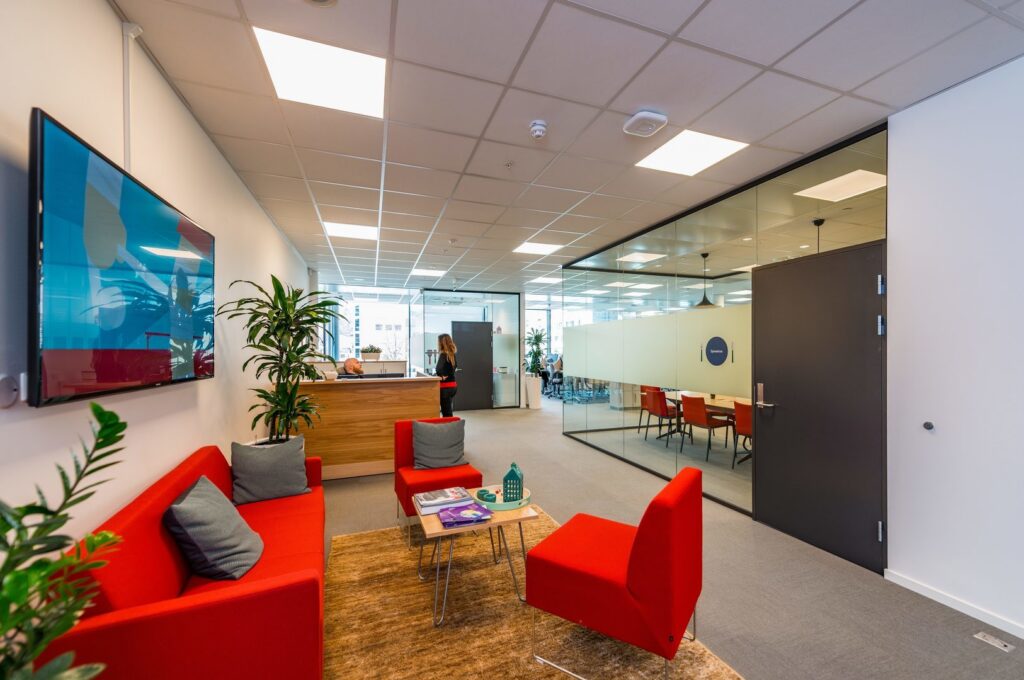

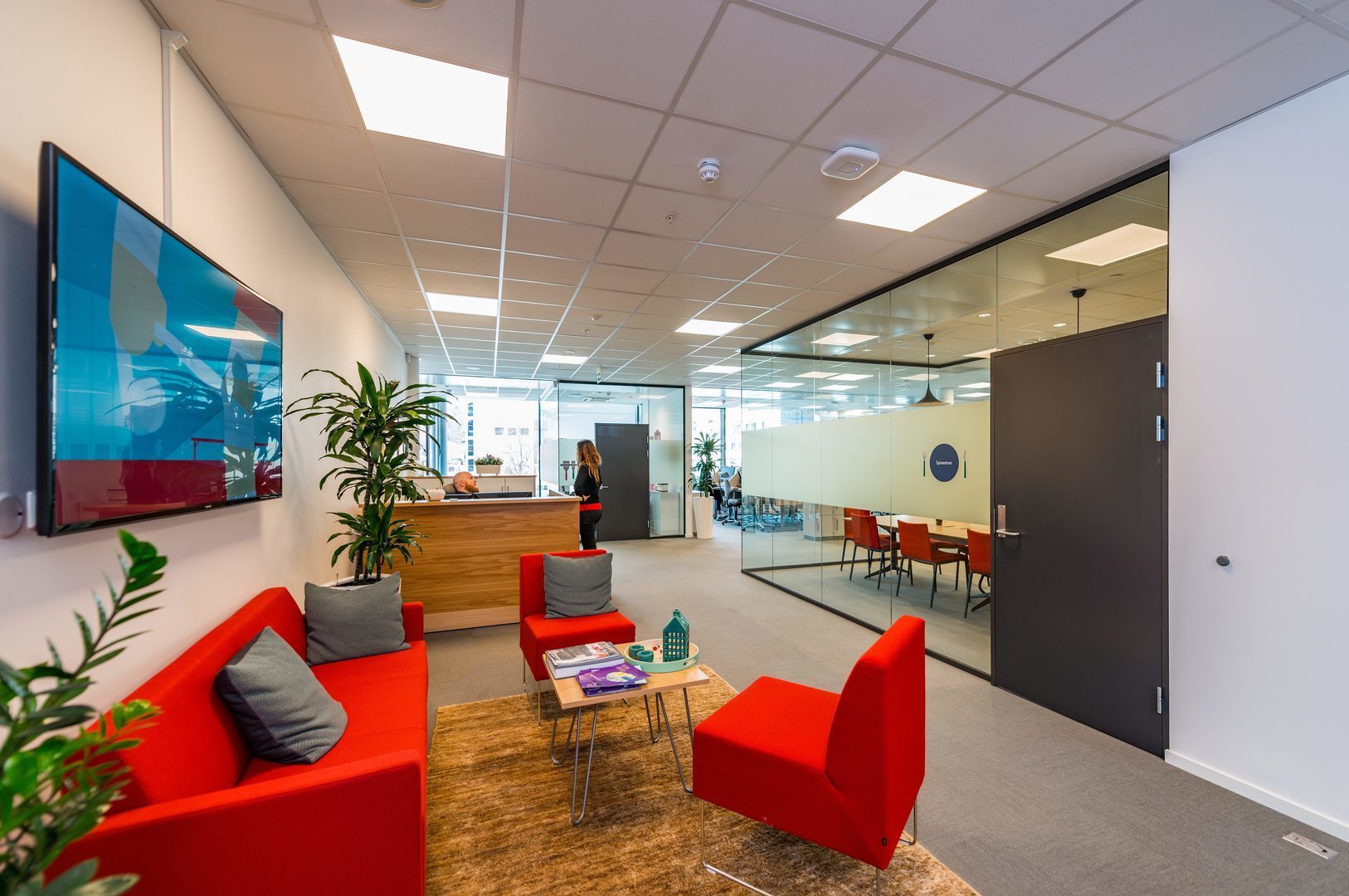

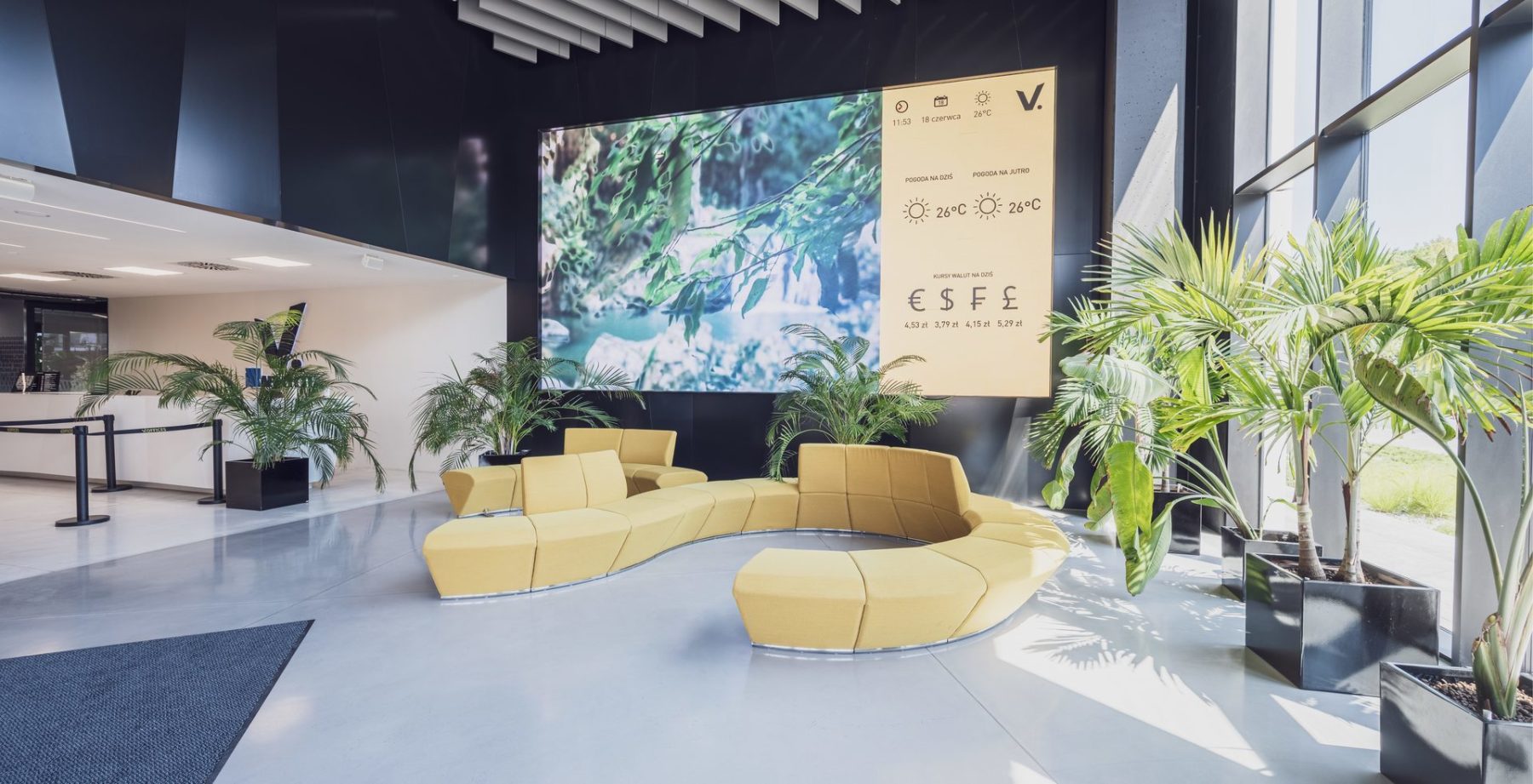

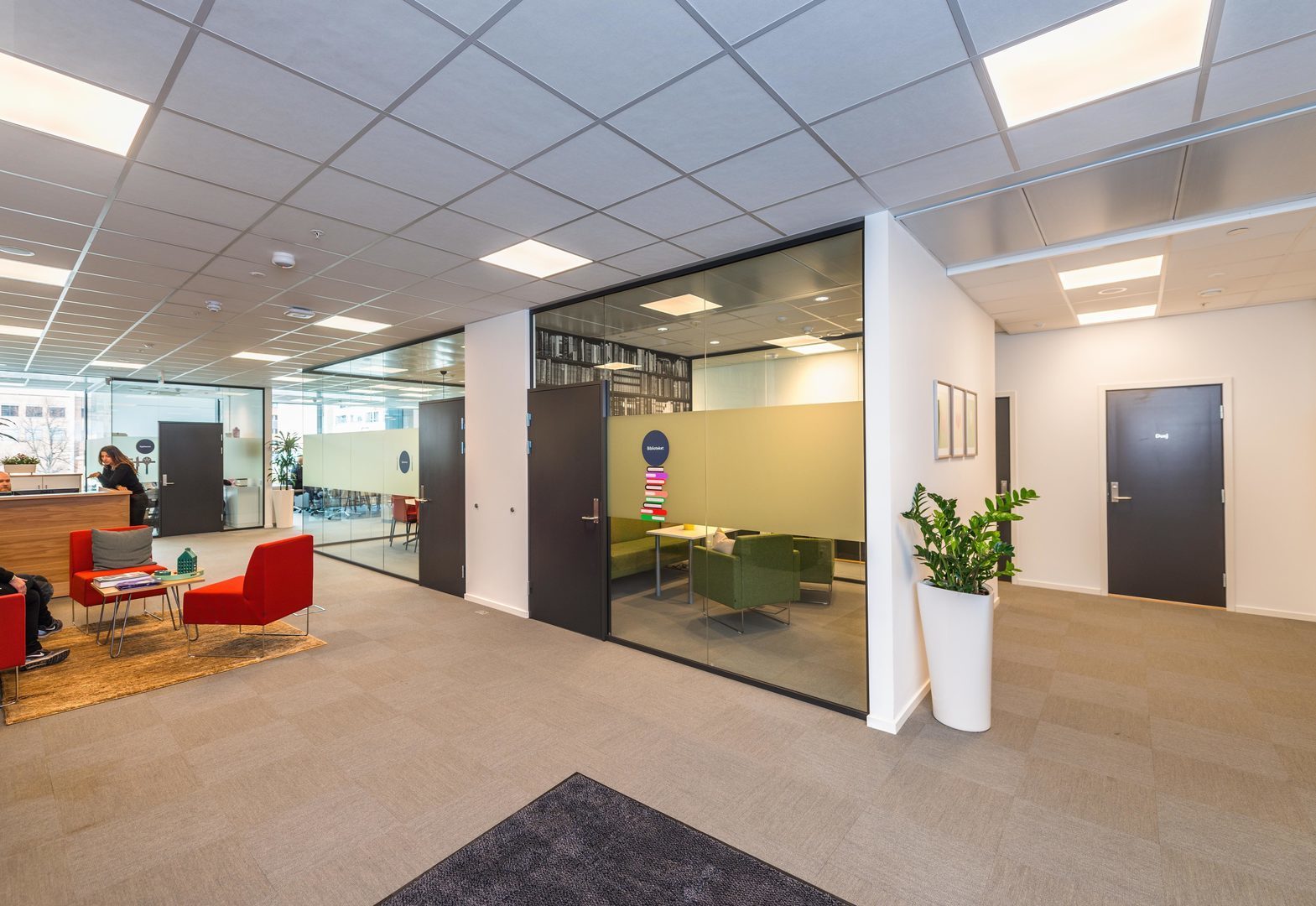

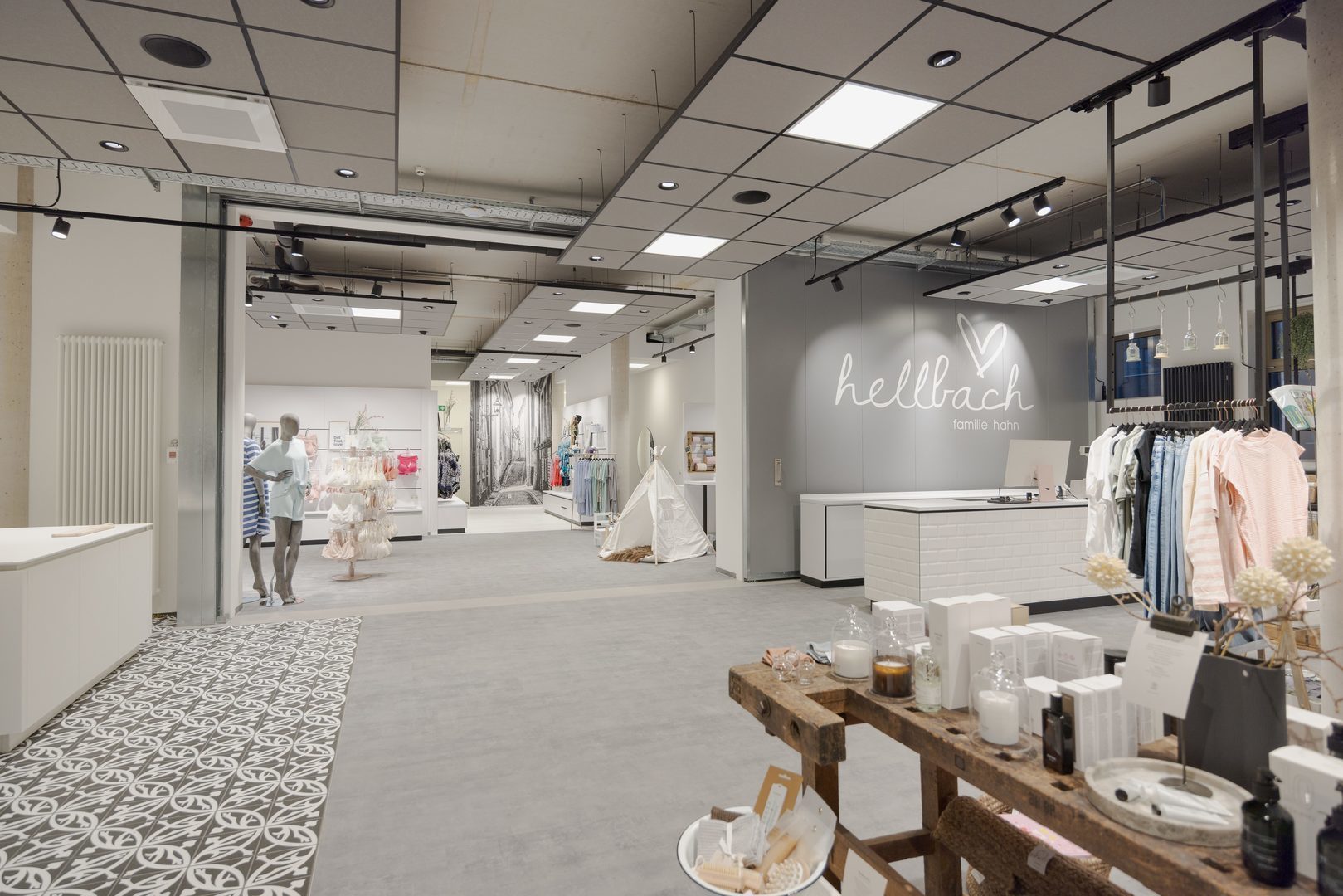

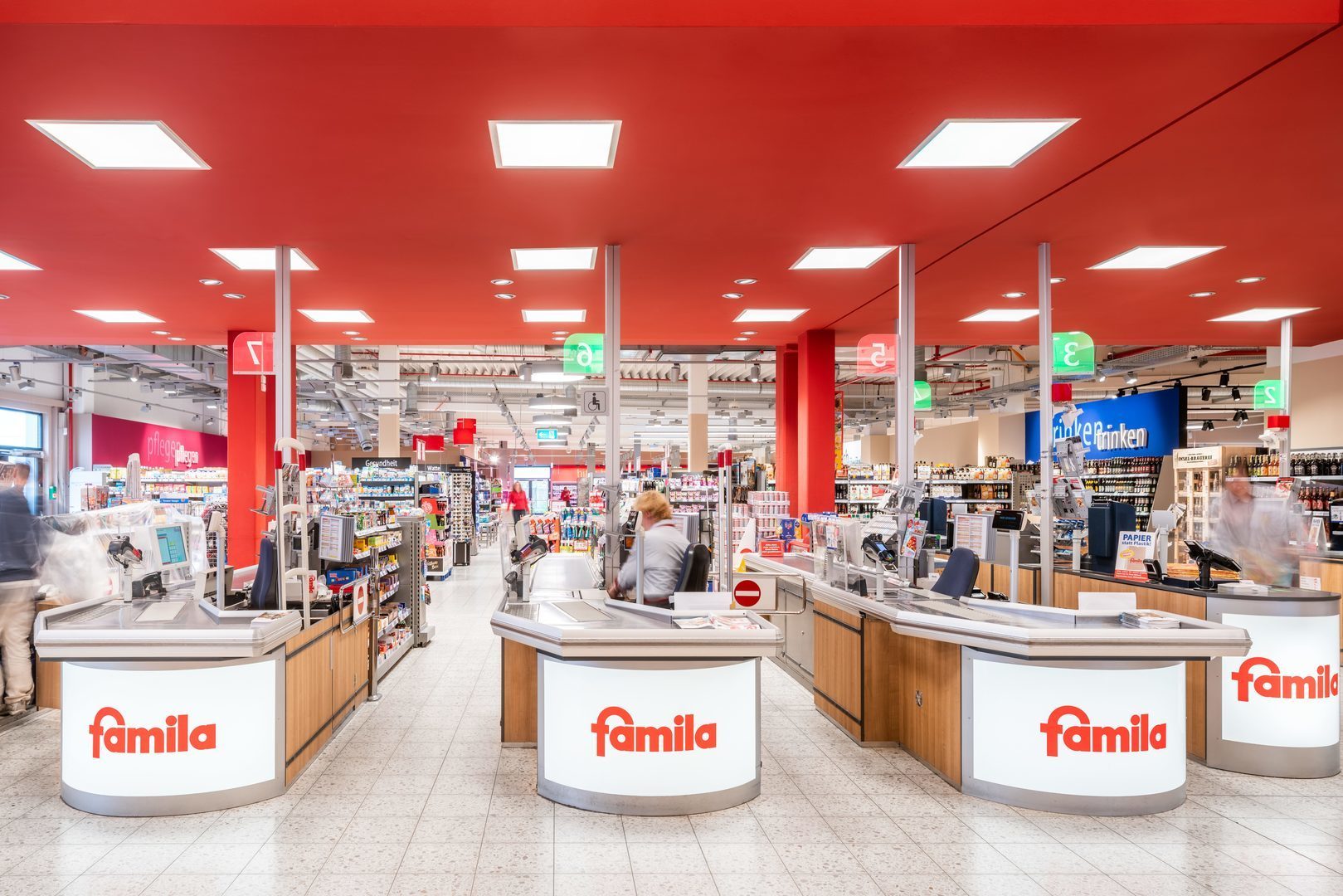

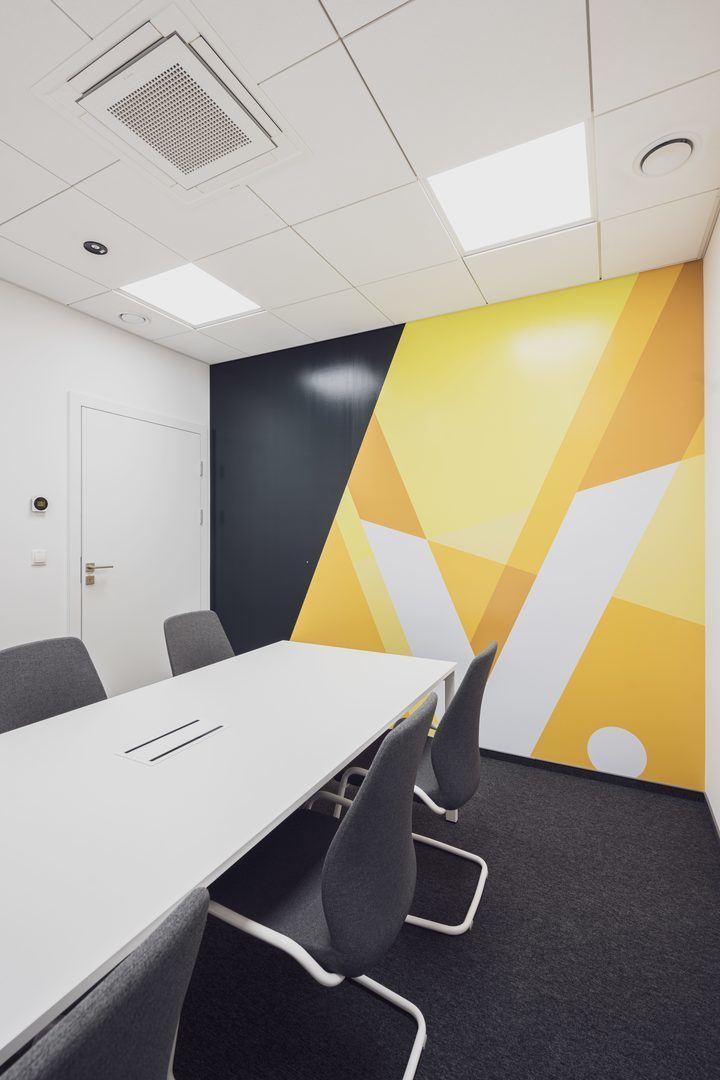

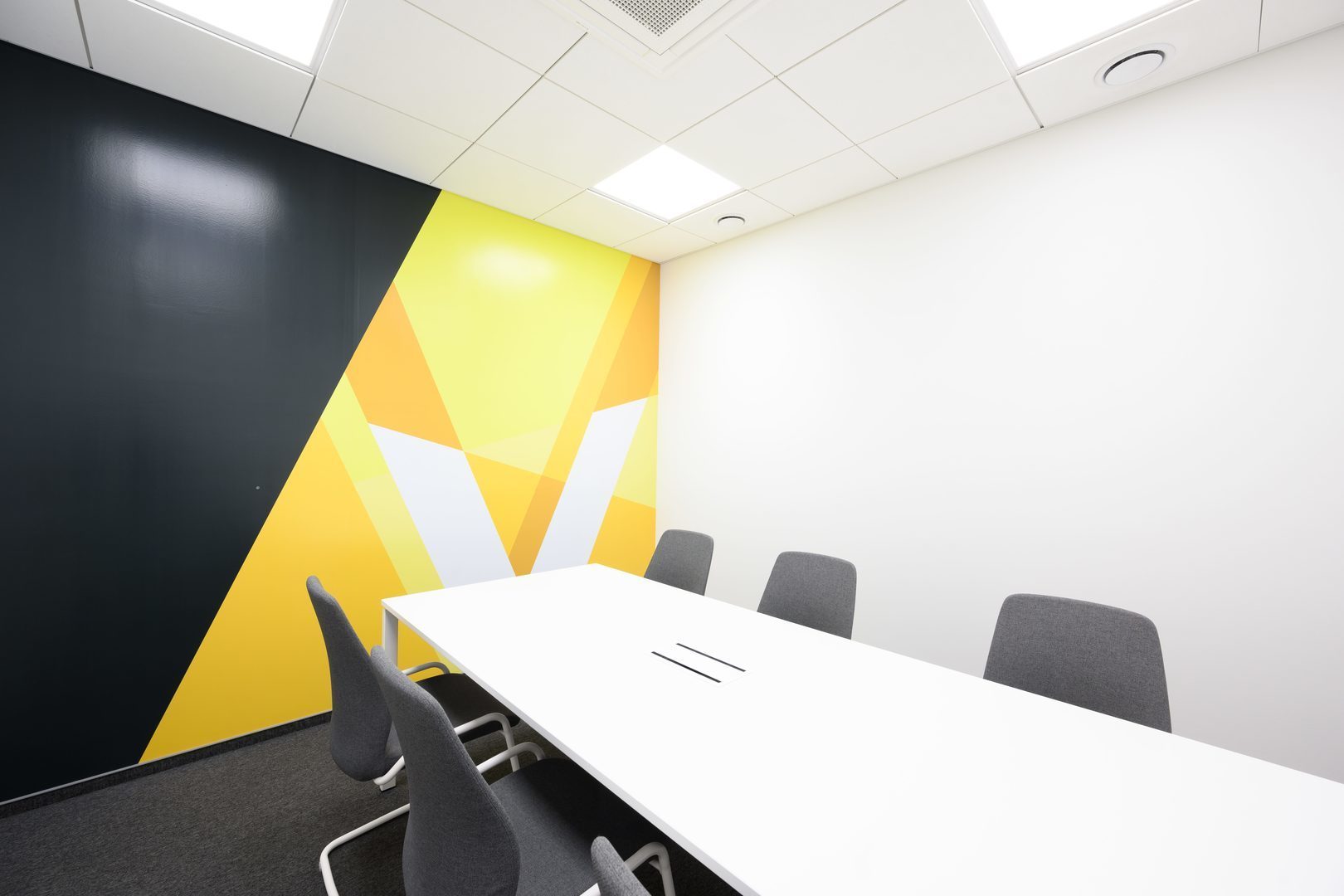

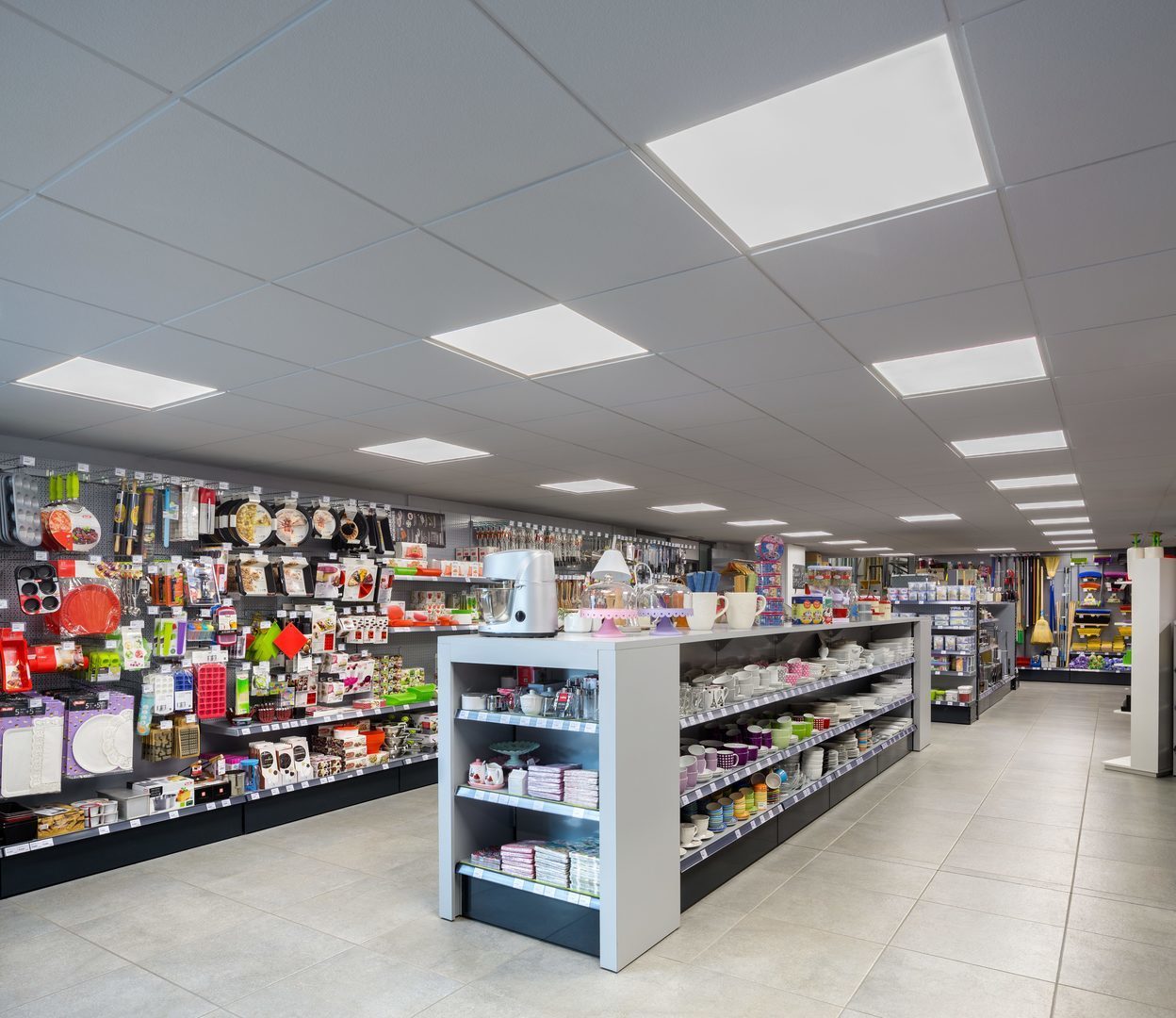

Offices, Corridors, Foyers, Conference rooms, Retail areas, waiting zones.
Mounting methods
For system ceilings with exposed grids. Fall protection wire not included in scope of delivery. Further information and data regarding luminaire installation and fixing can be found in the installation instructions.
Optical system
The prismatic PMMA surface of the optical system has a glare-reducing effect. With narrow-wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 3000 cd/² for beam angle above 65° all-round. Harmonious light effect due to homogeneously illuminated light emission.
LED system
Luminaire luminous flux 3400 lm, connected load 31,00 W, Power Faktor λ > 0,95, luminous efficiency of luminaire 109 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).
Luminaire body

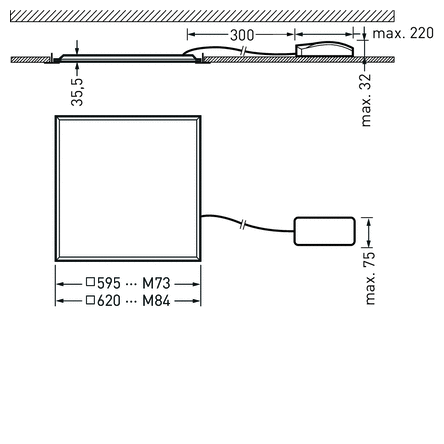

Frame made of aluminium, rear luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 595 mm x 595 mm, luminaire height 35,5 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 1,1 kg.
Electrical version
With external operating device, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
