Beskrivning
Luminaire type

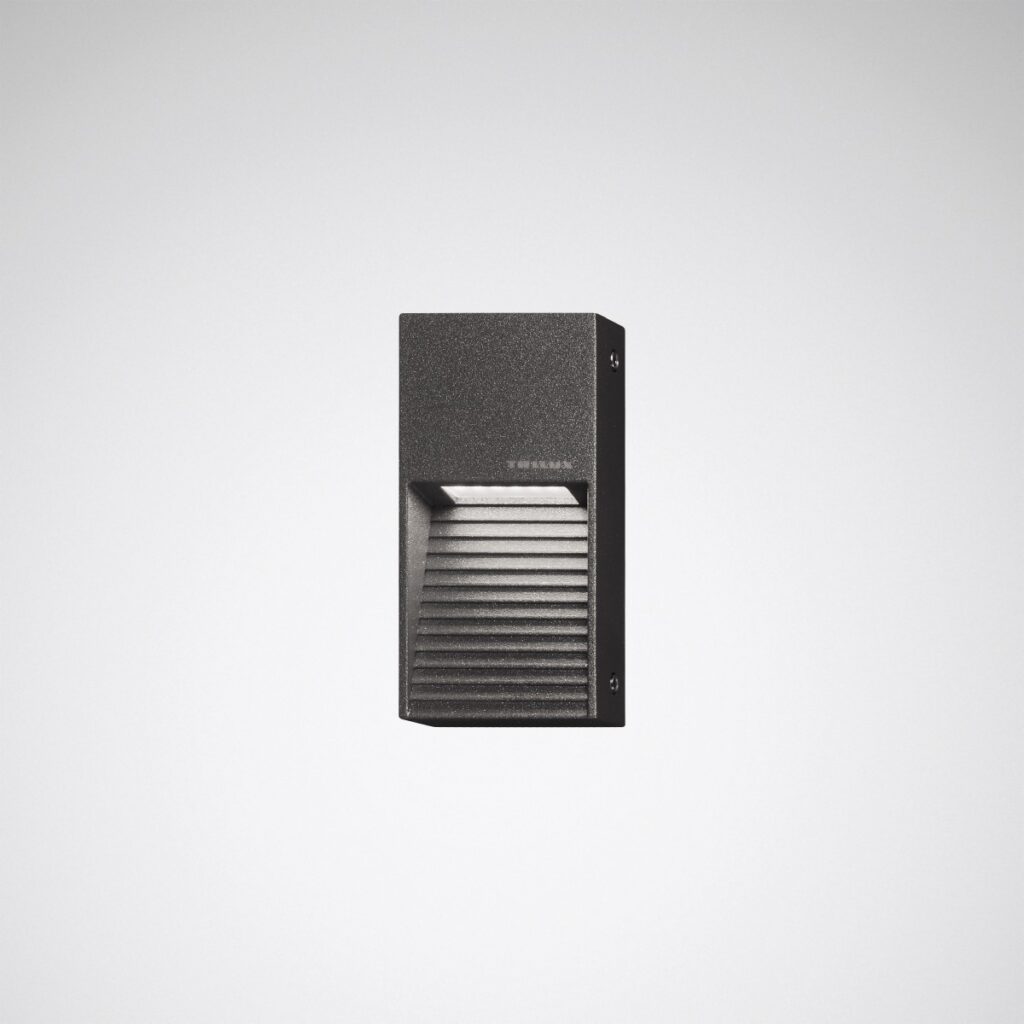

Design-oriented, very flat surface-mounted or recessed luminaire for matching lighting concepts indoors and outdoors. Luminaires in rectangular design for vertical application.
Mounting methods
For surface-mounting, or using accessories to be ordered separately (Invego…BE concrete casting box with mounting set) for flush installation in indoor and outdoor applications.
LED system
Luminaire luminous flux 136 lm, connected load 4,70 W, luminous efficiency of luminaire 29 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 90.
Luminaire body

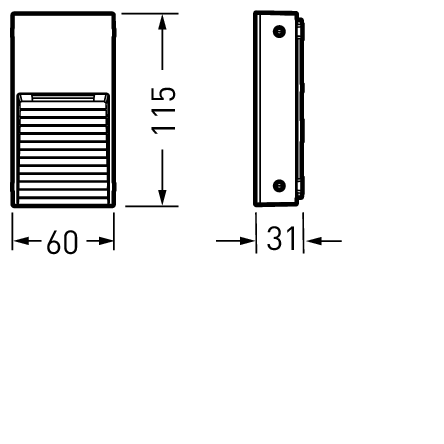

Luminaire body of die-cast aluminium. Cover of hardened glass. High impact-resistance. Colour of luminaire housing anthracite, similar to DB 703, powder-coated Dimensions (L x W): 115 mm x 60 mm, luminaire height 28 mm.
Electrical connection
With connection cable H05R-NF 2 x 1 mm², length 900 mm.
Electrical version
Power supply of the luminaire is via an external control gear unit to be ordered separately. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Planning information:
Power supply of the luminaire is via an external control gear unit to be ordered separately (See accessories). For flush mounting, the control gear unit can be placed in the casting box. With surface-mounted applications, take appropriate measures at the installation site for cable routing and placing the control gear unit. Further installation information can be found in the mounting instructions.
