Beskrivning
Luminaire type
Design-oriented, very flat surface-mounted or recessed luminaire for matching lighting concepts indoors and outdoors. Luminaire in rectangular design for horizontal application.
Mounting methods
For surface-mounting, or using accessories to be ordered separately (Invego…BE concrete casting box with mounting set) for flush installation in indoor and outdoor applications.
LED system
Luminaire luminous flux 422 lm, connected load 13,00 W, luminous efficiency of luminaire 32 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 90.
Luminaire body

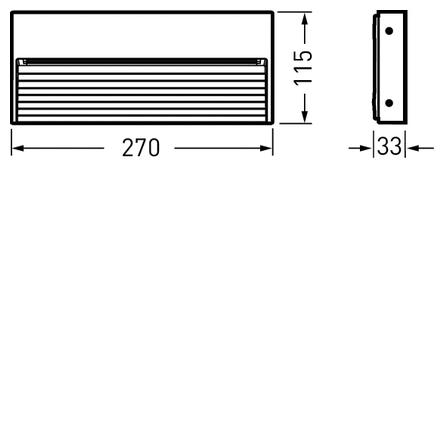

Luminaire body of die-cast aluminium. Cover of hardened glass. High impact-resistance. Colour of luminaire housing anthracite, similar to DB 703, powder-coated Dimensions (L x W): 270 mm x 115 mm, luminaire height 32 mm.
Electrical version
With electronic transformer, switchable. The LED system with control gear unit is suitable for operation on direct voltage supply grids. (ACmin= 100 V, ACmax= 264 V, DCmin= 176 V, DCmax= 264 V). The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
