Beskrivning
Luminaire type

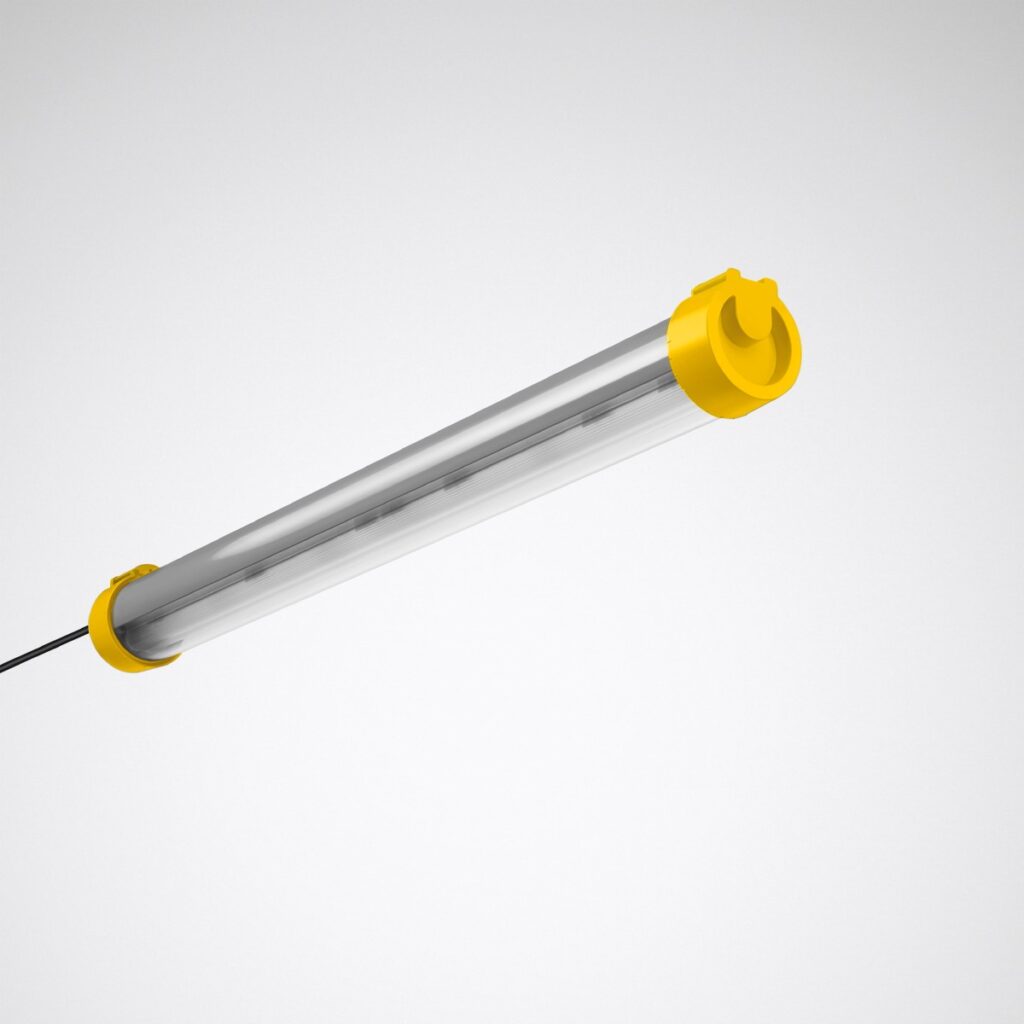

Robust and resistant tube luminaire for explosive indoor and outdoor areas.
Applications
For use in areas endangered by explosive atmospheres. ATEX mark II 3D EX TC IIIC T85ºC DC, -, II 3G EX EC IIC T6 GC, -.
Optical system
PMMA diffuser with inner prism structure. With double asymmetrical wide beam light intensity distribution.
LED system
The high-power LED module and control gear are designed for high requirements of a possible ambient temperature of up to 55°C. Luminaire luminous flux 6200 lm, connected load 42,00 W, Power Faktor λ > 0,95, luminous efficiency of luminaire 147 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 35 °C) = 100,000 h.
Luminaire body

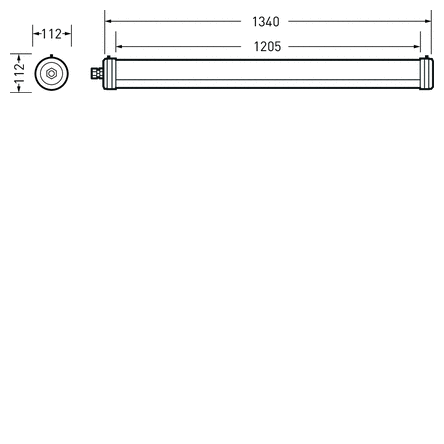

The impact-resistant PMMA diffuser tube with end caps made of glass-fibre reinforced PA66 is resistant to acids, sulphur vapours and salty environments. The luminaire body is sealed gas-tight to prevent the ingress and condensation of gases. Sealing made of polyurethane. . Inner gear tray made of sheet steel, powder-coated white. Dimensions (L x W): 1345 mm x 113 mm, luminaire height 126 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP69K, impact resistance level in accordance with IEC 62262: IK10, testing temperature of wire glow test in accordance with IEC 60695-2-11: . Permissible ambient temperature (ta): -35 °C – +55 °C. Weight: 4,6 kg.
Electrical connection
With ATEX cable gland and connection cable (1000 mm).
Electrical version
With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
