Luminaire type

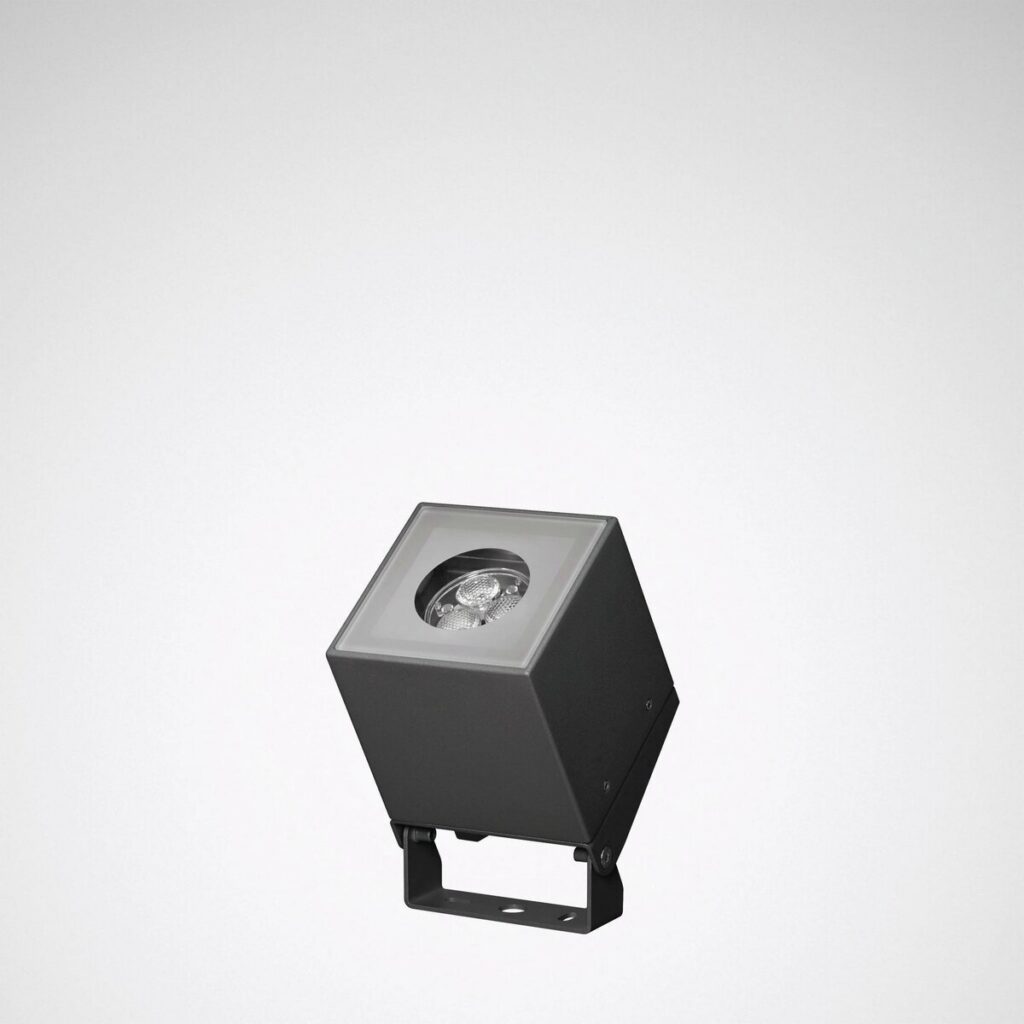

Pivotable surface-mounted LED spotlight with square cross-section and fixing bracket for outdoor applications.
Applications
For decorative, accentuating lighting solutions in outdoor areas, for building access areas, facades.
Mounting methods
For suspended or vertical mounting to solid surfaces and walls.
Optical system
High quality optical lens system. With rotationally symmetric wide light distribution. beam angle 45°. beam angle 50°. Light emission aperture cover of hardened, highly transparent glass.
LED system
Luminaire luminous flux and light color fixed. LED system consisting of 3 high-efficiency LEDs. Luminaire luminous flux 450 lm, connected load 7.5 W, Power Faktor λ > 0,9, maximum luminous efficiency of luminaire 60 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Further LED light colours available on request. Mean rated service life L80 (tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Flicker: Pst LM ≤ 1.0 at full load.
Luminaire body

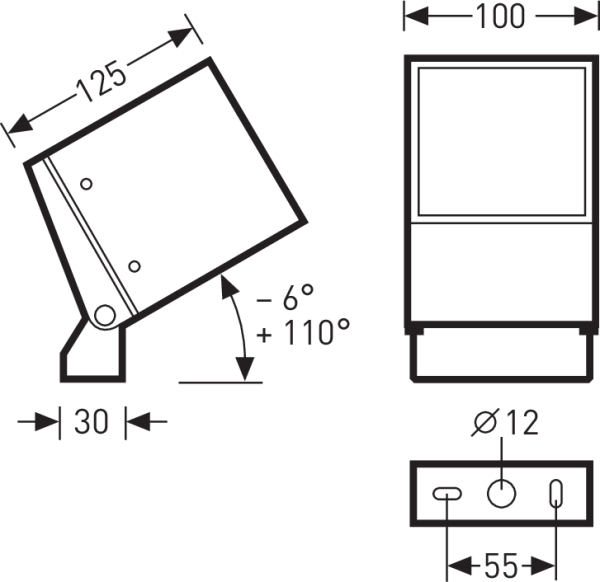

Luminaire housing of aluminium profile, end elements of die-cast aluminium. With housing screws of stainless steel. Luminaire housing highly weather resistant, powder-coated. Surface coated anthracite (similar to RAL 703). On request the luminaire body can be provided without added cost in the following colours: black textured (Akzo Nobel 8118669, similar to RAL 9005, V5), white textured (Akzo Nobel 8158870, similar to RAL 9016, V6), grey textured (Akzo Nobel 8129595, similar to RAL 9006, V7). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code. Dimensions (L x W): 100 mm x 100 mm, luminaire height 500 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK08. Permissible ambient temperature (ta): 25 °C Weight: 1,0 kg.
Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The LED system with control gear unit is suitable for operation on direct voltage supply grids. Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
