Beskrivning
Luminaire type
Decorative lateral post-top luminaire with flat cover. With an intelligent label for quick access to luminaire information by means of QR code.
Supplementary equipment
With connected 6,000 mm connection cable.
Mounting methods

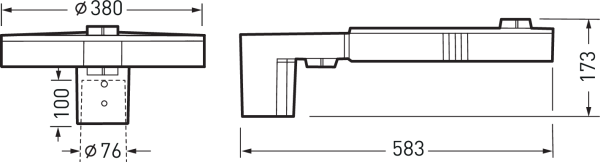

Post-top luminaire for post spigot Ø 76 mm, Mast mounting via two stainless steel fixing screws in accordance with EN 60598-2-3. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Matching post on request. Mounting height 6000 mm.
Optical system
Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide light distribution. Optimised for horizontal positioning of luminaire body. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately.
LED system
Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). With 2 LED modules. LED module consisting of four LEDs including optical system. Luminaire luminous flux 2200 lm, connected load 18.5 W, Power Faktor λ > 0,9, maximum luminous efficiency of luminaire 119 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, Available on request also in a Tunable White version (2200 K – 4000 K). general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Mean rated service life LCLO (tq 35 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Flicker: Pst LM ≤ 1.0 at full load.
Luminaire body
Luminaire body of die-cast aluminium. Surface coated anthracite (similar to RAL 703). Sea weather-suitable coating on request. Cover of heat-treated non-laminated safety glass. Cover sealed in luminaire body. With a transmission value of > 98%. Mast available upon request. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK08. Permissible ambient temperature (ta): 35 °C Windage area Fw = 0,040 m2. Weight: 11,0 kg.
Electrical connection

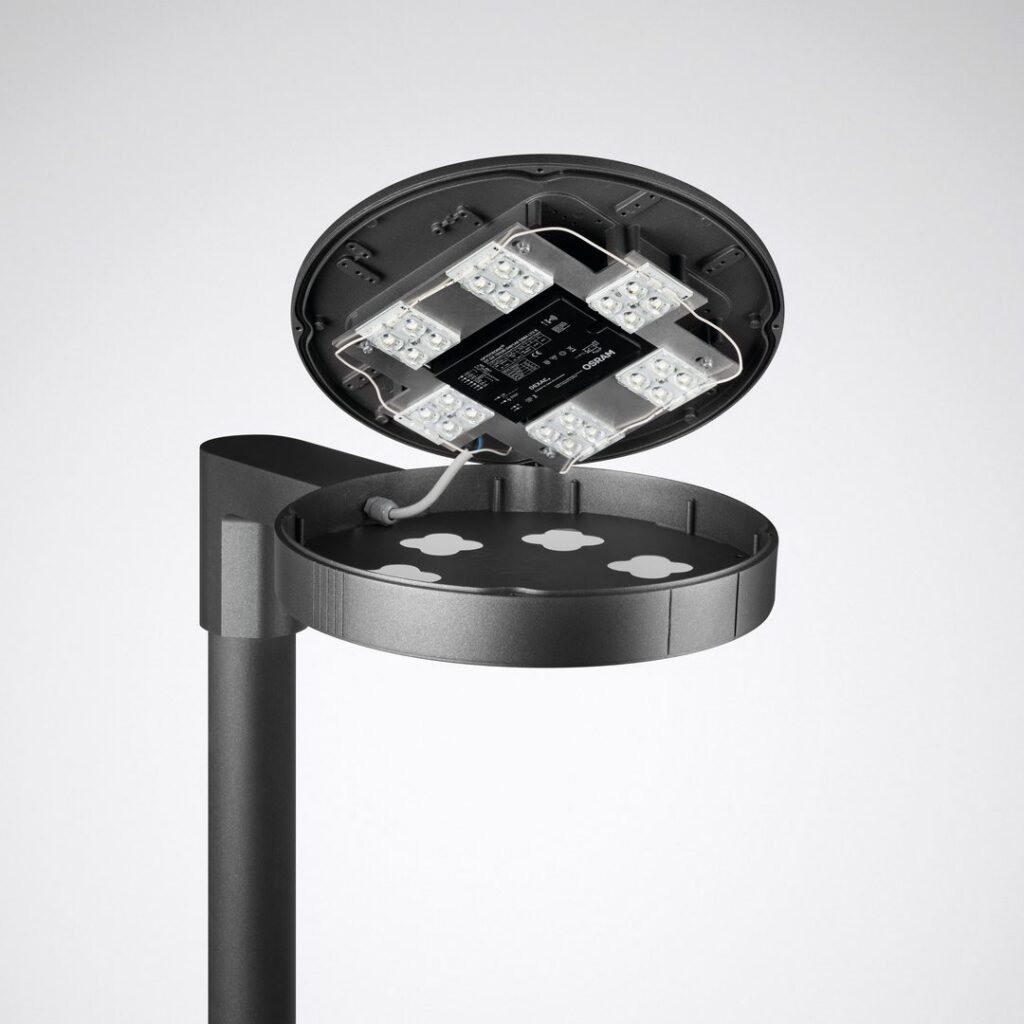

Gear tray with all electrical components and LED modules mounted as upper luminaire enclosure. Removable after releasing four fixing screws of V2A. Length of connection cable: 6.0 m.
Electrical version
With operating device, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.
Planning information:
The luminaire is compliant to the requirements of EN 60598 and is designed for the effects of wind compliant to EN 1991 (Eurocode) with basic wind velocity of up to 30m/s (corresponding to wind zone 4 in Germany) in terrain category 1. A snow load (up to 1kN/m2) and icing (up to 2 cm) at a mounting height in accordance with the mounting instructions are taken into account. Not considered are exposed locations (e.g. bridges, installation on buildings or directly adjacent to railway tracks). Impact loads are not considered.
Disassembly instructions (PDF) for the product available at: https://www.trilux.com/EcoDesign
