Beskrivning

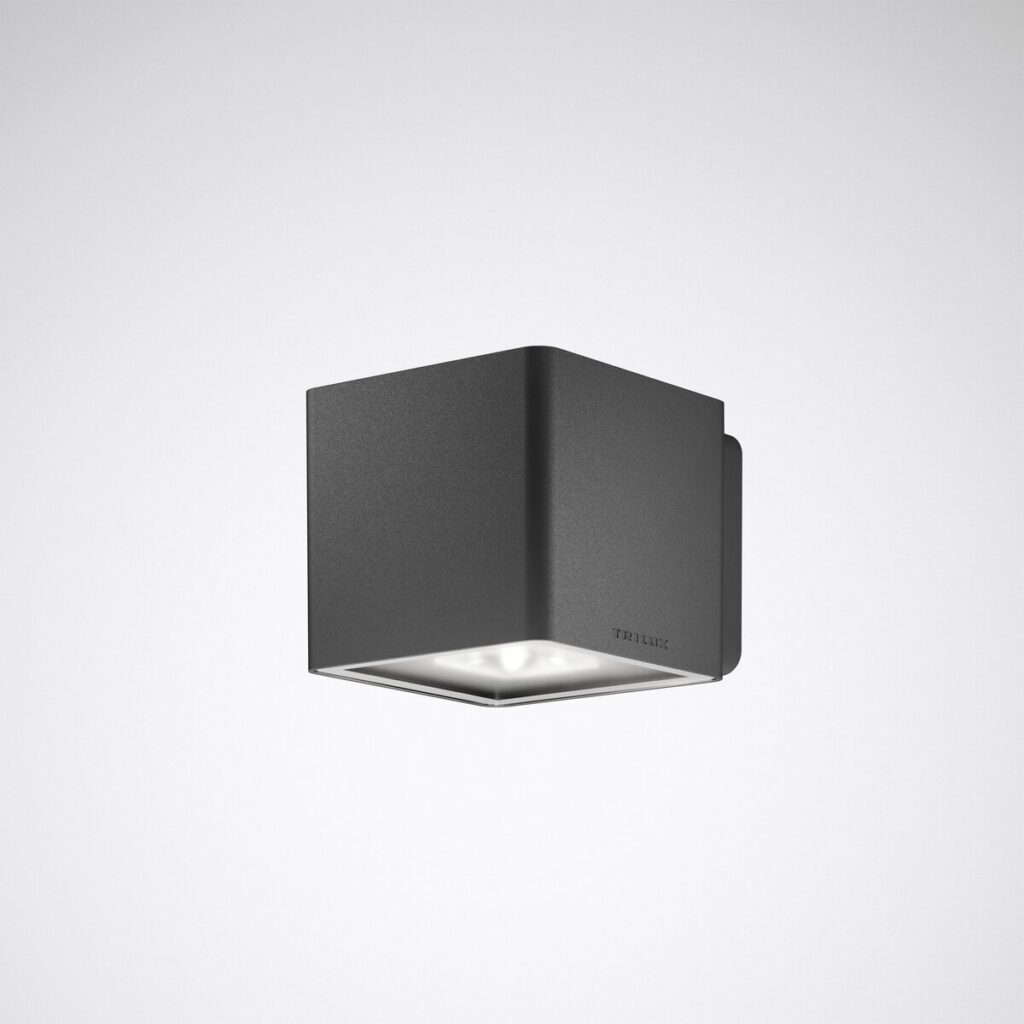

Luminaire typeWall luminaire with a minimalist design. For accenting facades and the standardised illumination of paths and surfaces. With robust, weatherproof housing. The luminaire is part of a holistic product range with a uniform, timeless design.
Supplementary equipment
With through-wiring 4 x 1.5 – 2.5 mm2.
Applications

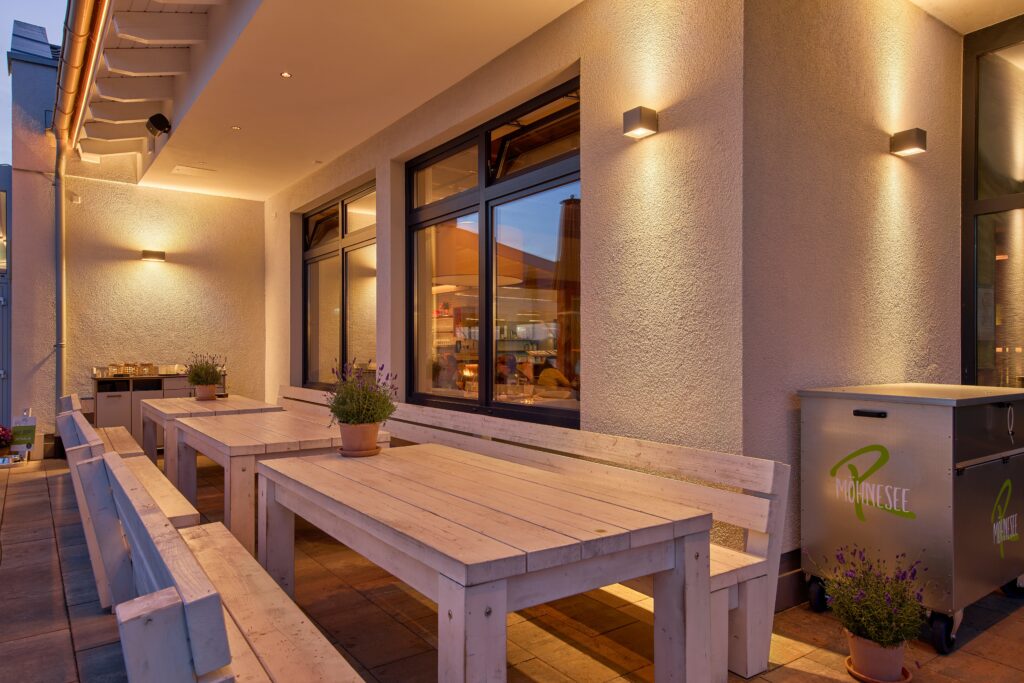

For decorative, accentuating lighting solutions in outdoor areas, for building access areas, facades, paths and green areas. Can also be used holistically inside buildings.
Mounting methods
Surface-mounted luminaire for wall mounting. Easy mounting via separate mounting plate with slotted holes for alignment. Flexible feed-in through cavity behind the the mounting plate and large connection compartment. A roof-shaped projection on the top of the mounting plate is provided to drain off water, effectively preventing water from entering the interior. Tool-free electrical contacting and mechanical connection of the luminaire housing to the mounting plate are in one installation step (plug & play). The luminaire has one fixed and one loose plug connector.
Optical system

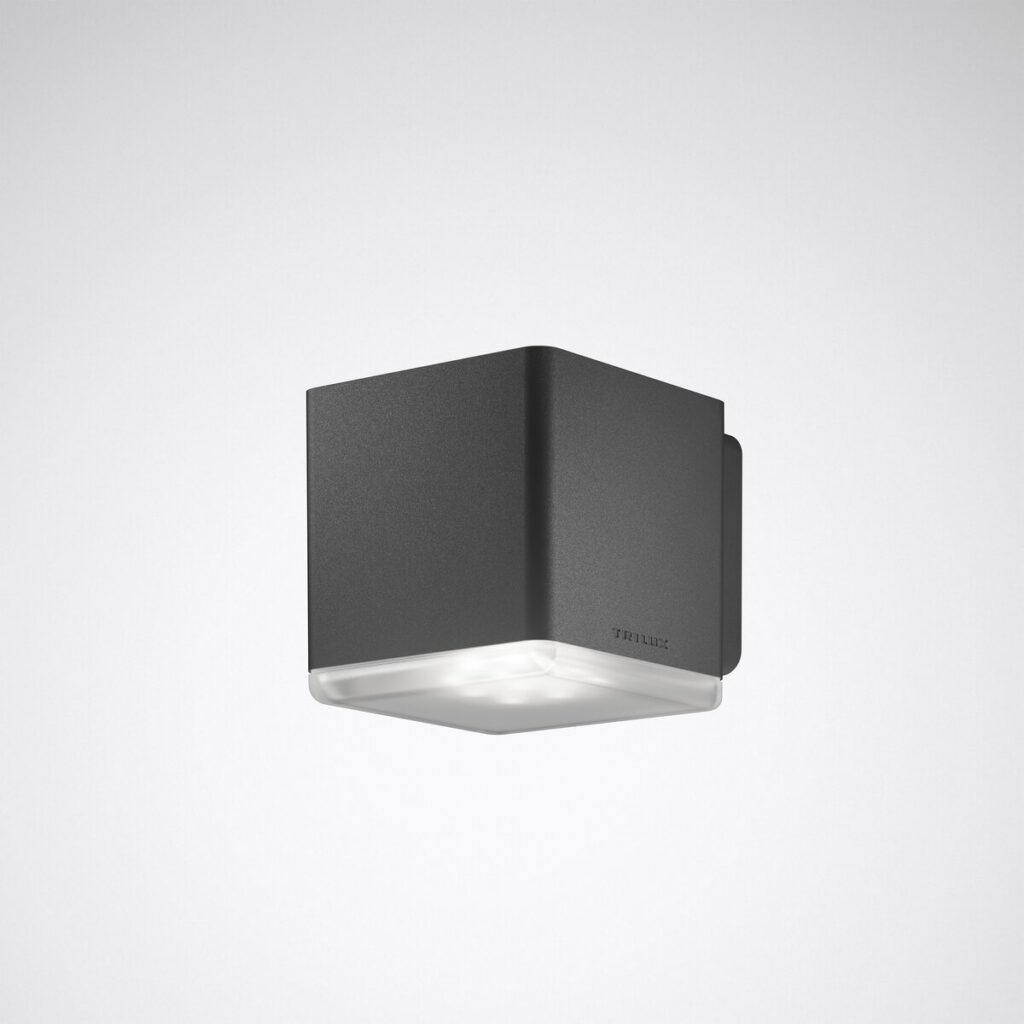

As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With asymmetric medium wide light distribution. Direct distribution. Precise light control and wide planar illumination with standard-compliant uniformity at large mounting distances thanks to MLT (multi-lens technology). Cover of frosted glass.
LED system
Luminaire luminous flux and light color fixed. Luminaire luminous flux 850 lm, connected load 8.5 W, Power Faktor λ > 0,95, maximum luminous efficiency of luminaire 100 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L90 (tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Flicker: Pst LM ≤ 1.0 at full load.
Luminaire body

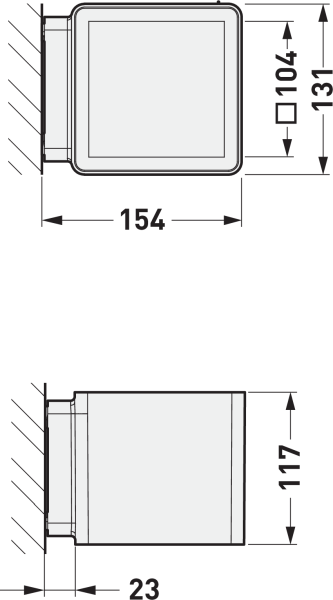

Mounting plate and luminaire housing made of die-cast aluminium. No visible screws achieves an attractive design. Surface coated anthracite (similar to RAL 703). Dimensions (L x W x H): 154 mm x 131 mm x 117 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK06. Permissible ambient temperature (ta): -20 °C to 25 °C. Weight: 2,0 kg.
Electrical version
With electronic control gear unit, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Electrical contacting through pre-assembled plug connectors. Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
