Luminaire type

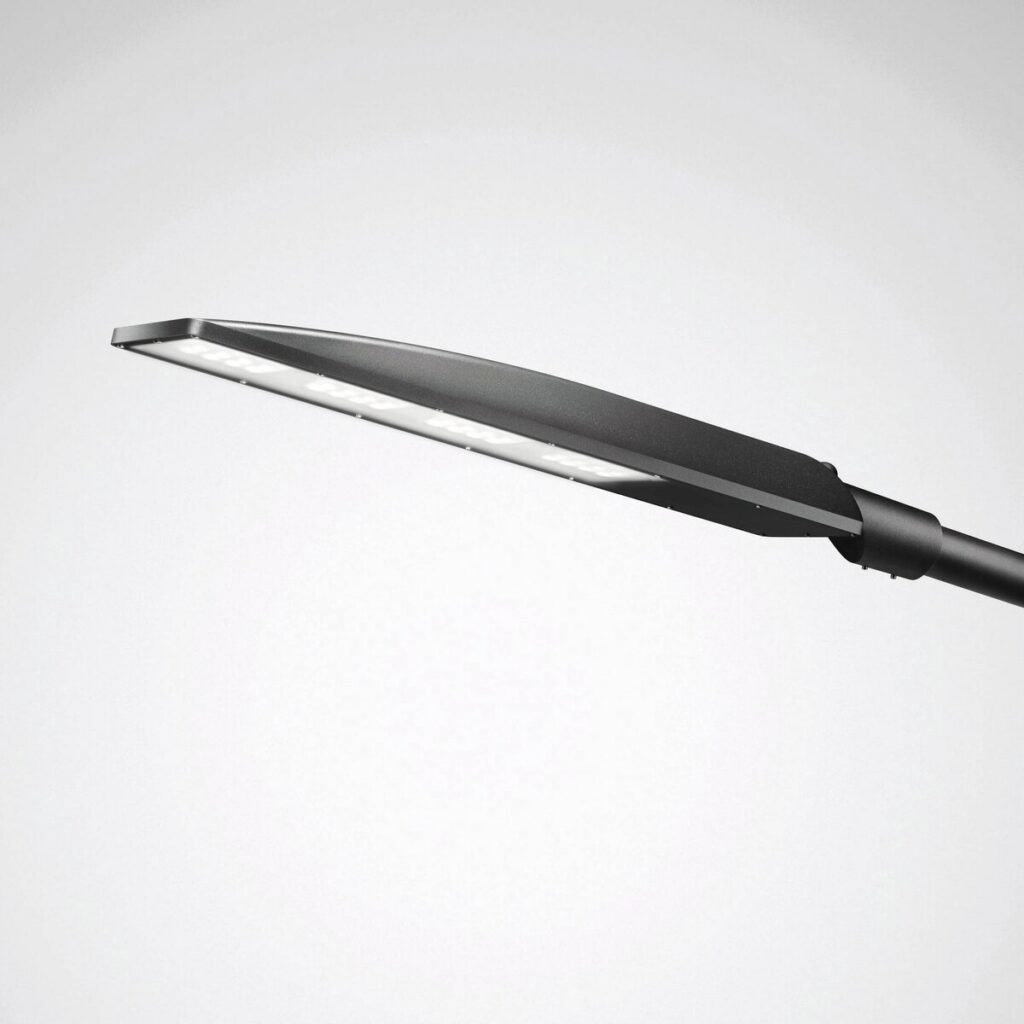

Bracket-mounted luminaire with elegant, flat design. The LED linear luminaire is particularly suitable for 1:1 refurbishments of conventional 36W and 58W linear luminaires.
Applications
Flexible and versatile use for illuminating roads (compliant to M5 and M6 lighting classes), car parks, paths, squares and industrial areas.
Mounting methods
For use as a bracket-mounted luminaire. The post attachment is pre-assembled. Spigot size Ø 42 mm. The inclination of the luminaire head is adjustable. Inclination angle 0°, -5°, -10°. Mounting height 10000 mm.
Optical system
As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With asymmetric wide light distribution. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks.
LED system
Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 6800 lm, connected load 52 W, Power Faktor λ > 0,95, maximum luminous efficiency of luminaire 131 lm/W. Light colour , correlated colour temperature (CCT) , general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life L80 (tq 25 °C) = 100,000 h. Flicker: Pst LM ≤ 1.0 at full load.
Luminaire body

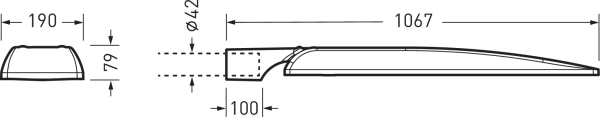

Luminaire body of die-cast aluminium. Surface coated anthracite (similar to RAL 703). Luminaire housing highly weather resistant, powder-coated. Sea weather-suitable coating on request. With PMMA cover, printed. The cover can be individually printed on customer request. Visible label protected against weather impact behind the cover on request. Dimensions (L x W x H): 900 mm x 190 mm x 79 mm. Mast available upon request. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK08. Permissible ambient temperature (ta): 25 °C Windage area Fw = 0,170 m2. Weight: 8,4 kg.
Electrical connection
The luminaire is connected without opening the luminaire body by means of the connection cable routed to the outside. Length of connection cable: 12.0 m.
Electrical version
With electronic control gear unit, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Note on accessory: shielding MLT ZAH vp/4 pcs. (TOC 6818500) / MLT ZAS G4 p4 (TOC 7851000):
Number of required shieldings / number of packaging units with 4 pieces each: 2 / 1.
Planning information:
The luminaire is compliant to the requirements of EN 60598 and is designed for the effects of wind compliant to EN 1991 (Eurocode) with basic wind velocity of up to 30m/s (corresponding to wind zone 4 in Germany) in terrain category 1. A snow load (up to 1kN/m2) and icing (up to 2 cm) at a mounting height in accordance with the mounting instructions are taken into account. Not considered are exposed locations (e.g. bridges, installation on buildings or directly adjacent to railway tracks). Impact loads are not considered.
