Luminaire type
Surface-mounted luminaire for damp rooms and canopied outdoor areas.
Applications
damp rooms, canopied outdoor areas not exposed to general weather. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24.
Mounting methods
For ceiling, wall and suspended mounting. Wall mounting can be implemented horizontally or vertically. Theft-proof mounting possible via theft protection, to be ordered separately. Mounting clips and triangular brackets for suspended mounting contained within the scope of supply. Mounting clips are slidable.
Optical system
With opal PC cover.
LED system
Luminaire luminous flux 4000 lm, connected load 32,00 W, Power Faktor λ > 0,95, luminous efficiency of luminaire 125 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 50,000 h.
Luminaire body

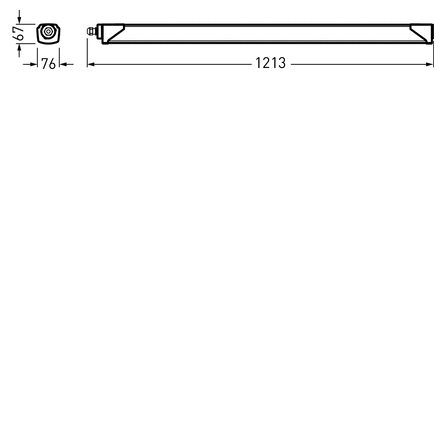

Luminaire body made of a single-part PC extrusion profile. PC end caps with UV protection. Colour light grey (RAL 7035). Dimensions (L x W): 1213 mm x 76 mm, luminaire height 67 mm. Permissible ambient temperature (ta): -20 °C – +35 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK10, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 1,7 kg.
Electrical version
With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Accessories for the series:
For horizontal wall mounting of the luminaire it is mandatory to install the ZBATL accessory (theft protection). ZBATL2, TOC 69 23 300
