Luminaire type

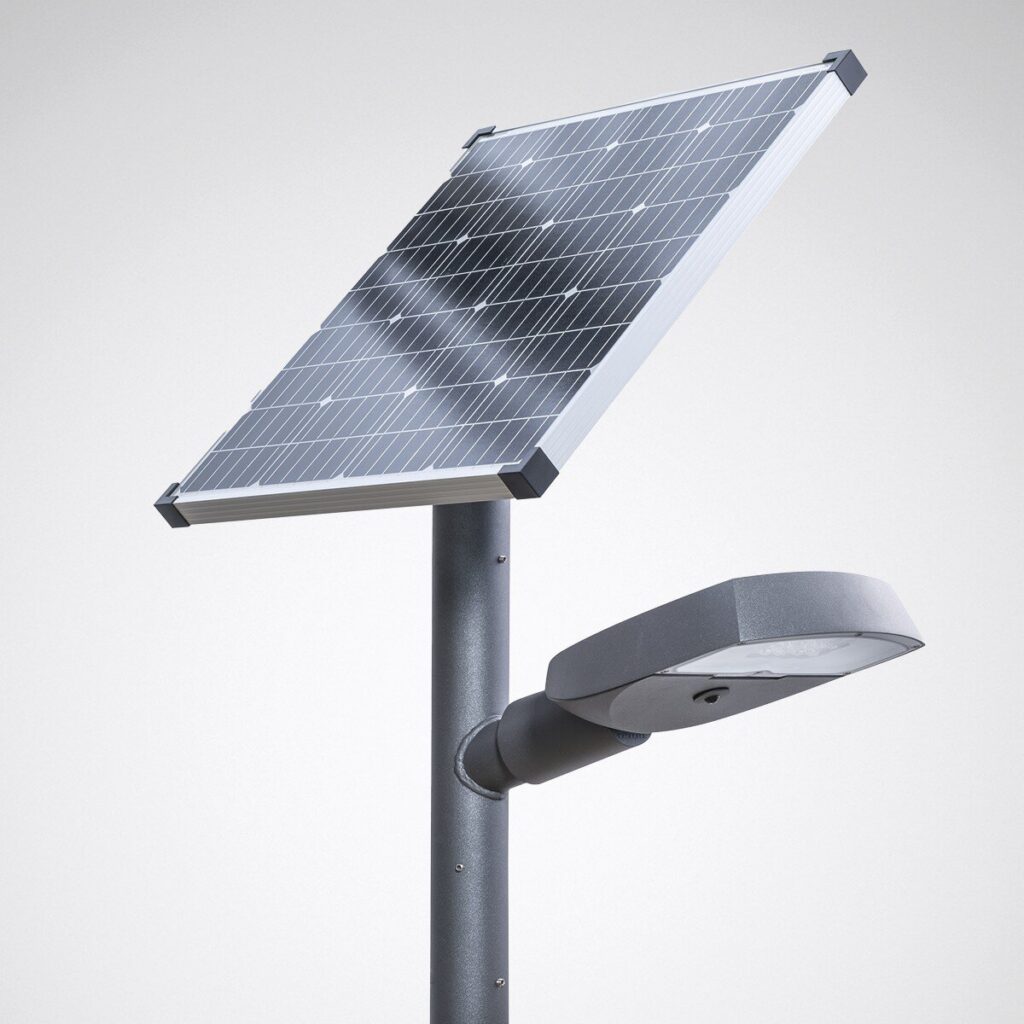

Solar system for self-sufficient, energy-efficient outdoor lighting solutions. The solar system consists of a luminaire head (Trilux Cuvia 40), post attachment, solar module (HSW Stadtfeld) and a battery pack with holder. The luminaire head has an integrated passive infrared motion sensor (PIR). Light- and battery management (burning duration, dimmed continuous operation, motion detection) can be configured via DIP switch in the luminaire head. Maximum output of the solar module (Pmax): 80 Wp.
Applications
Pedestrian zones, Paths in parks and green areas, Residential facilities, Car parks.
Mounting methods
The luminaire head and solar module are mounted on the post using the separate post attachment. Post attachment for post spigot Ø 76 mm. Inclination angle of luminaire head settable to -10°, 0°. The battery pack is installed inside the post. Mast available upon request.
Optical system

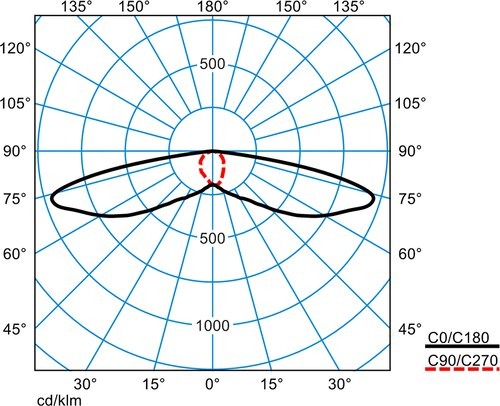

With symmetric wide light intensity distribution. With PMMA cover, clear. Retrofitting a rear / side shield is possible as an accessory to be ordered separately.
LED system
Luminaire luminous flux and light color fixed. Luminaire luminous flux 900 lm, connected load 9 W, Power Faktor λ > 0,95, maximum luminous efficiency of luminaire 100 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Mean rated service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).
Luminaire body

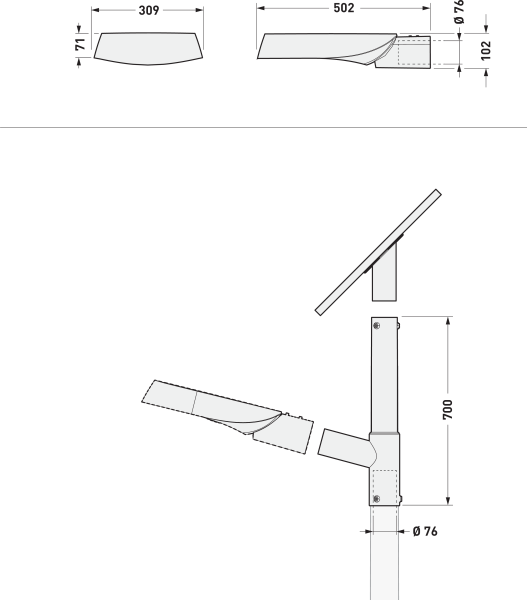

Luminaire body of die-cast aluminium. Highly weather-resistant coating. Sea weather-suitable coating on request. Dimensions (L x W x H): x x . With sulphur-free sealings. Safety class (EN 61140): III, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK09. Permissible ambient temperature (ta): -10 °C to 35 °C. Weight: 27,0 kg.
Electrical connection
Electrical connection of the individual components via two separate connection cables with plug connectors. Length of connection cables: 750 mm und 4500 mm. With external battery pack for mounting in the post. Battery technology: lithium iron phosphate (LiFePo4). Nominal voltage: 12,8 V. Energy: 350 Wh. Dimensions (L x W x H): 280 mm x 85 mm x 71 mm. Weight: 3,0 kg.
Electrical version
The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Planning information:
The luminaire is compliant to the requirements of EN 60598 and is designed for the effects of wind compliant to EN 1991 (Eurocode) with basic wind velocity of up to 30m/s (corresponding to wind zone 4 in Germany) in terrain category 1. A snow load (up to 1kN/m2) and icing (up to 2 cm) at a mounting height in accordance with the mounting instructions are taken into account. Not considered are exposed locations (e.g. bridges, installation on buildings or directly adjacent to railway tracks). Impact loads are not considered.
