Beskrivning
Luminaire type

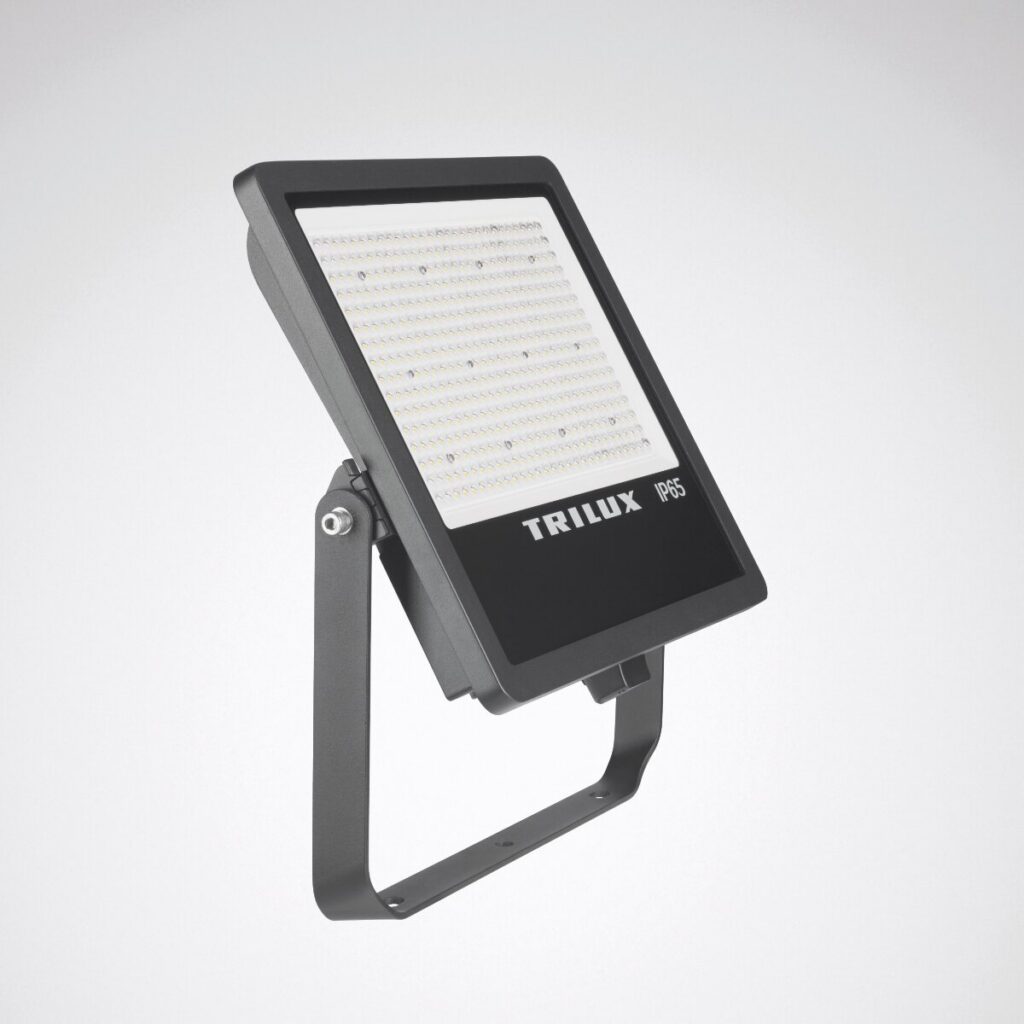

LED floodlight for planar lighting and accent lighting.
Light management
A motion sensor/brightness sensor can be combined with the spotlight as an optional accessory without tools.
Mounting methods
Pivotable fixing bracket for suspended and vertical mounting.
Optical system
Optical system consists of a PC lens optic. With asymmetric medium wide light distribution.
LED system
Luminaire luminous flux and light color adjustable in 6 levels (Multilumen, Multicolour). Luminaire luminous flux 32500 lm – 50000 lm, connected load 227 W – 342 W, Power Faktor λ > 0,95, maximum luminous efficiency of luminaire 154 lm/W. Light colour warm white or neutral white, correlated colour temperature (CCT) 3000 K or 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Mean rated service life L80 (tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Flicker: Pst LM ≤ 1.0 at full load.
Luminaire body

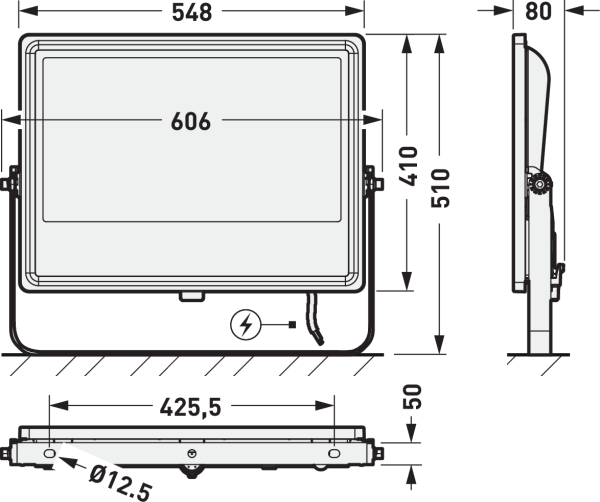

Spotlight body of die-cast aluminium. Surface coated black (similar to RAL 9005). Dimensions (L x W): 510 mm x 606 mm, luminaire height 80 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK08. Permissible ambient temperature (ta): 50 °C Windage area Fw = 0,300 m2. Weight: 10,6 kg.
Electrical version
With electronic control gear unit, switchable. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 8 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
