Beskrivning
Luminaire type

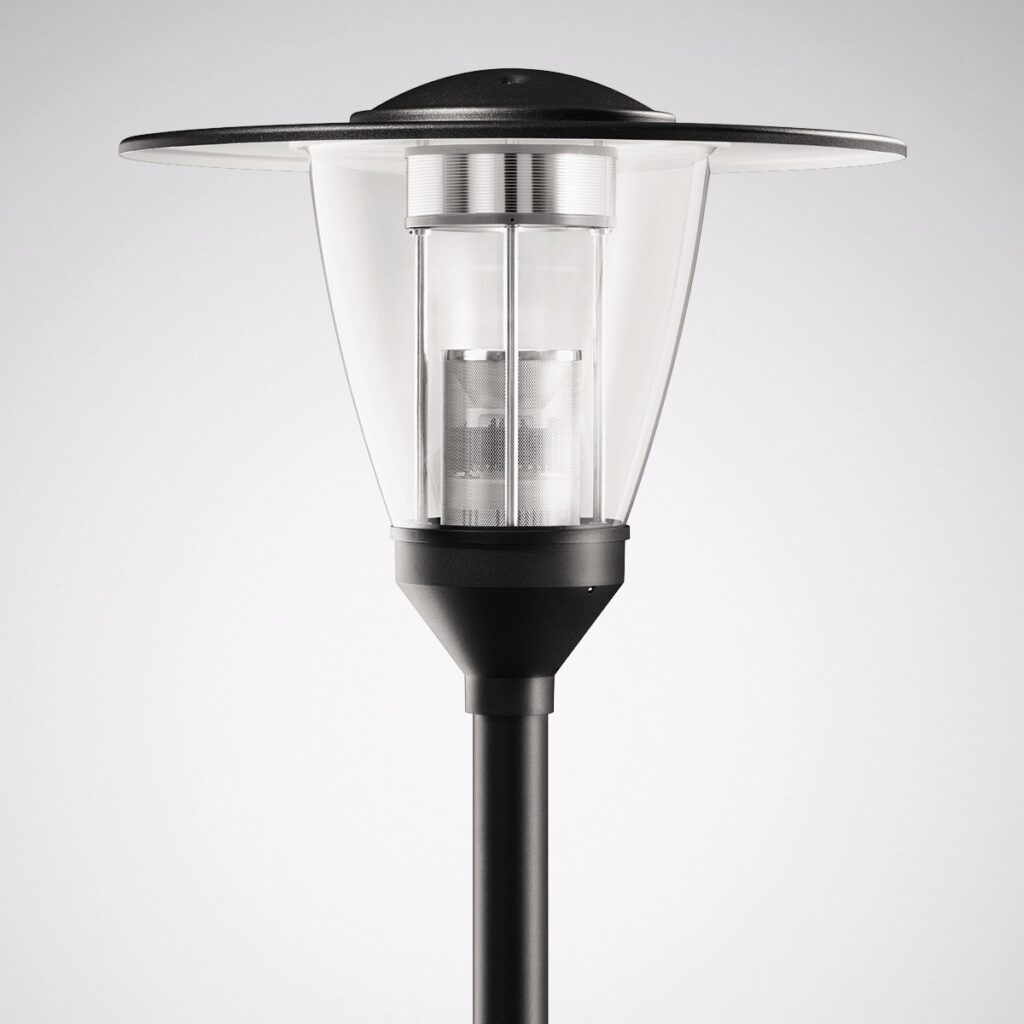

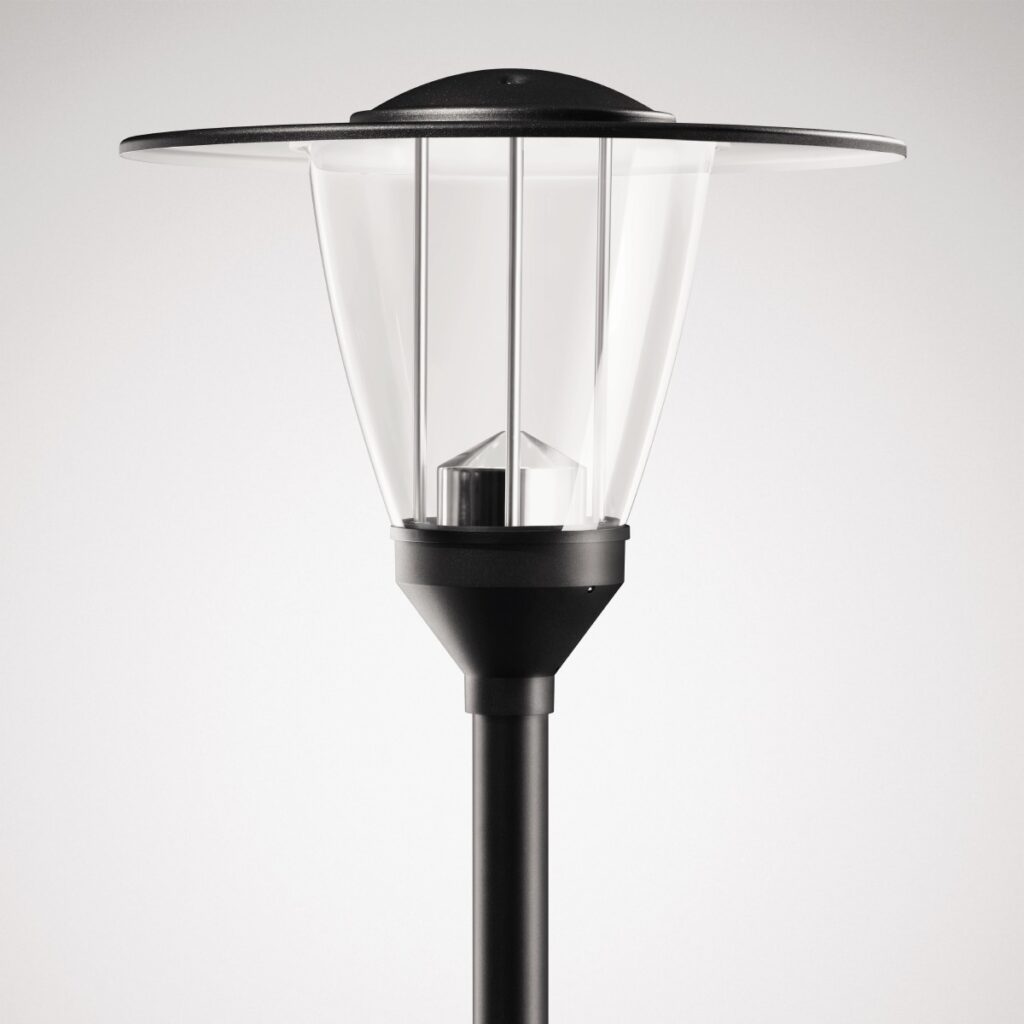

Decorative LED classic conical lantern for post-top mounting. With an intelligent label for quick access to luminaire information by means of QR code.
Applications
Residential roads, Collection roads, Pedestrian zones, Arcades, Passages, Paths in parks and green areas, Residential facilities, Stairways, Access areas, Car parks.
Mounting methods

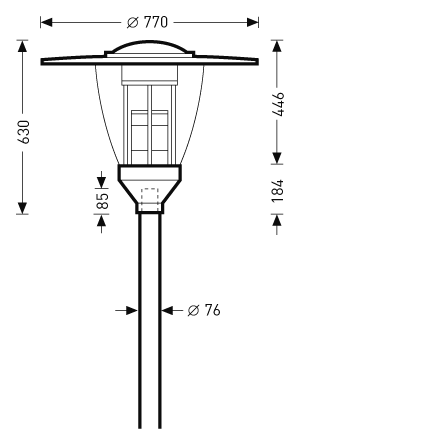

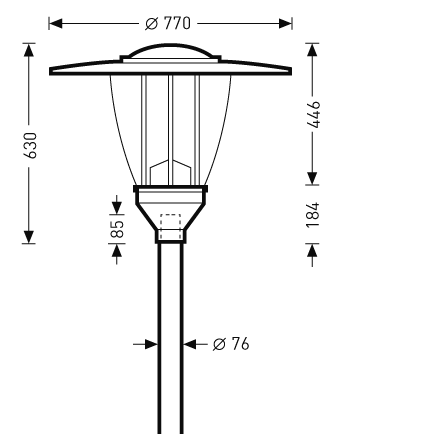

Post spigot Ø 76 mm. Also suitable for mounting to posts with spigot Ø 60 mm via reduction pieces to be ordered separately. Matching post on request. Mounting height 8000 mm.
Optical system
Optical system of highly specular anodised aluminium. With asymmetric wide light distribution.
LED system
Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). With LED system Luminaire luminous flux 1200 lm, connected load 16 W, Power Faktor λ > 0,9, maximum luminous efficiency of luminaire 75 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life LCLO (tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Flicker: Pst LM ≤ 1.0 at full load.
Luminaire body
Luminaire body of die-cast aluminium, luminaire canopy of corrosion-resistant aluminium, powder-coated highly weather resistant. Colour of outer luminaire body and luminaire top deep black, similar to RAL 9005. Luminaire top white powder-coated on inside. Sea weather-suitable coating on request. Cylindrical cover of impact-resistant PMMA, clear. Luminaire cover in lock-in service position can be pushed upwards. Mast available upon request. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP23, Protection rating of lamp compartment: IP65. impact resistance level in accordance with IEC 62262: IK04. Permissible ambient temperature (ta): 25 °C Windage area Fw = 0,470 m2. Weight: 7,3 kg.
Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Electrical block contains all electric components, can be replaced without tools. Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.
Planning information:
The luminaire is compliant to the requirements of EN 60598 and is designed for the effects of wind compliant to EN 1991 (Eurocode) with basic wind velocity of up to 30m/s (corresponding to wind zone 4 in Germany) in terrain category 1. A snow load (up to 1kN/m2) and icing (up to 2 cm) at a mounting height in accordance with the mounting instructions are taken into account. Not considered are exposed locations (e.g. bridges, installation on buildings or directly adjacent to railway tracks). Impact loads are not considered.
Disassembly instructions (PDF) for the product available at: https://www.trilux.com/EcoDesign
