Luminaire type

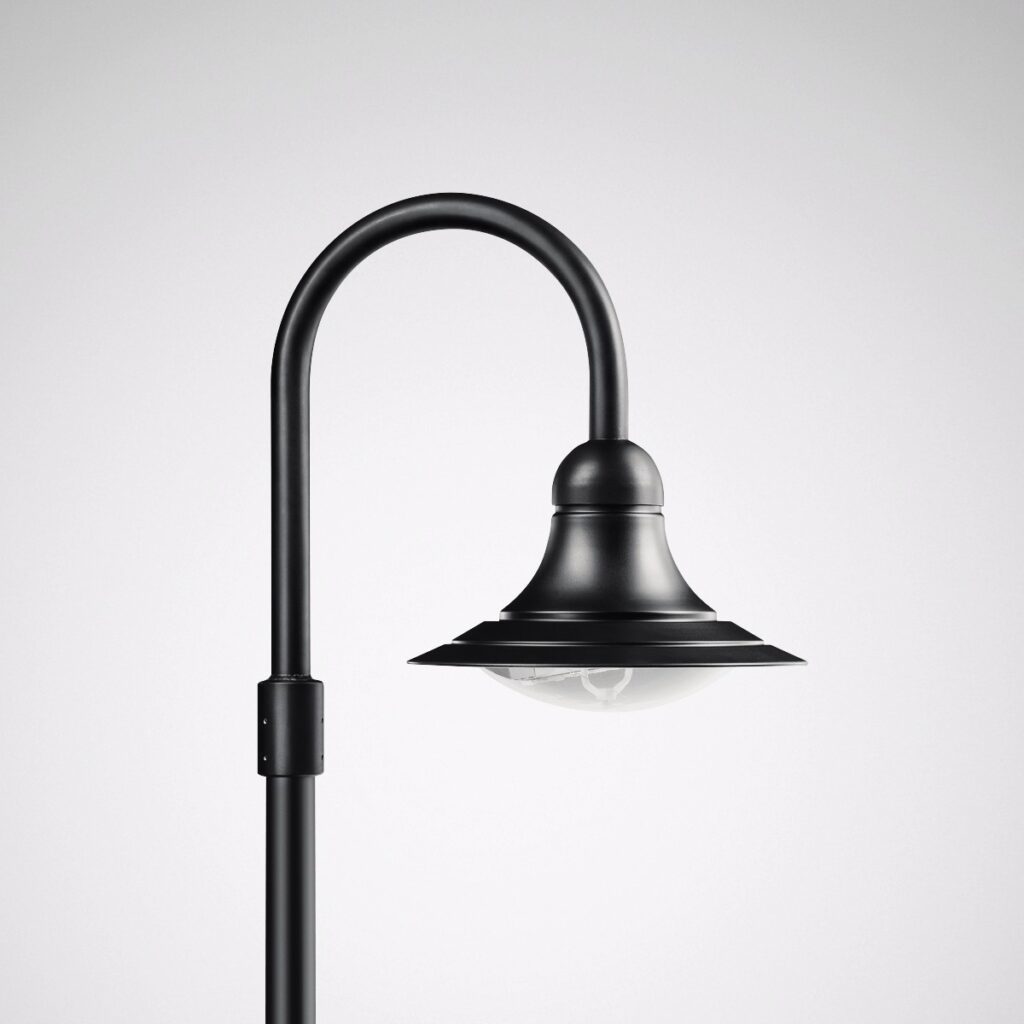

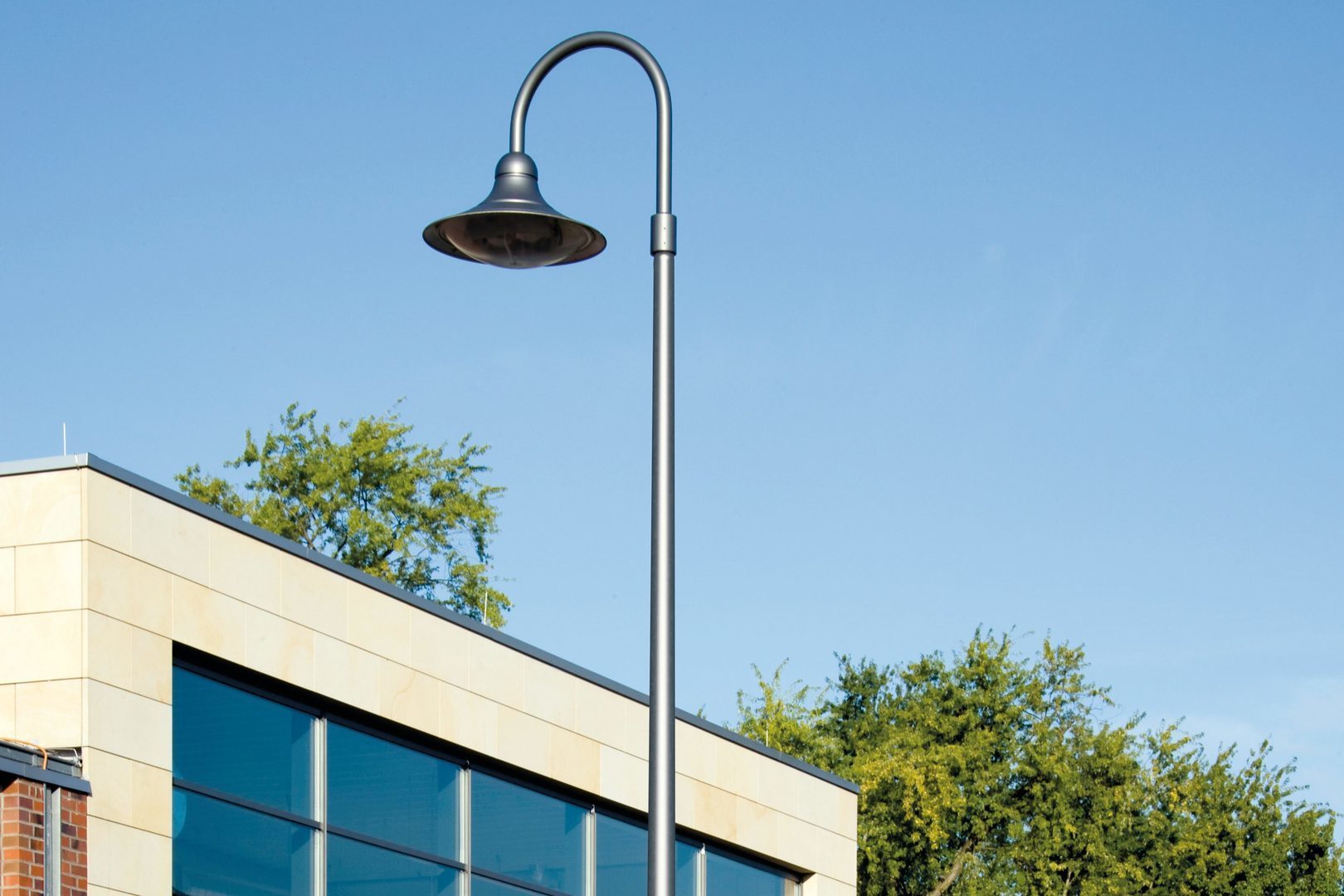

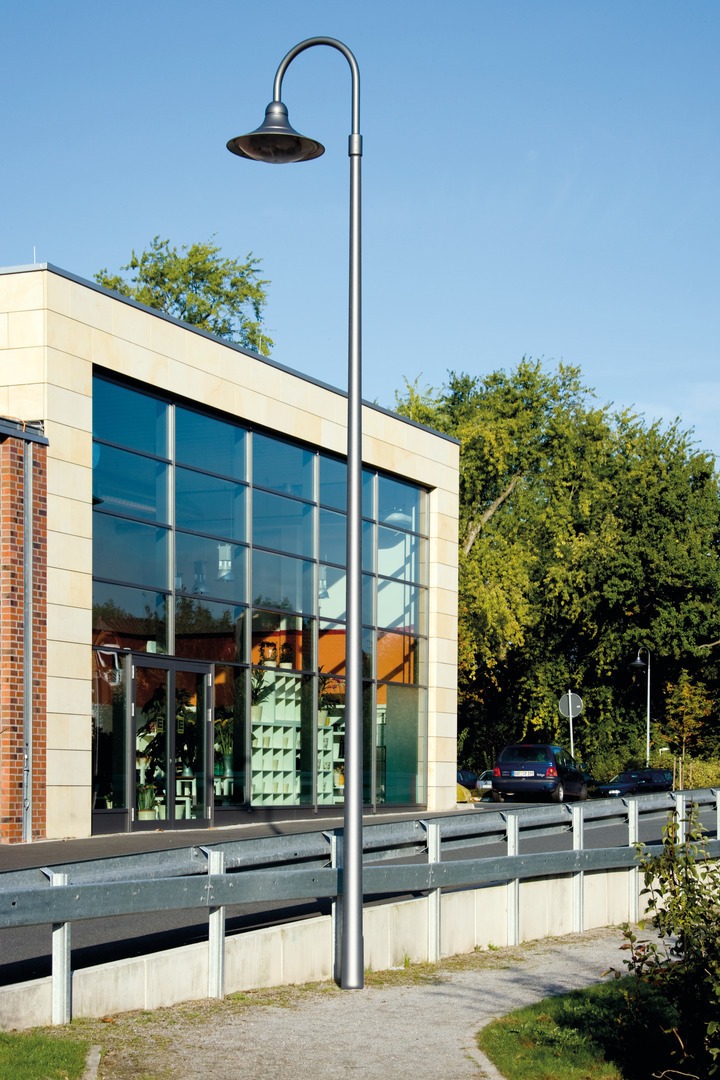

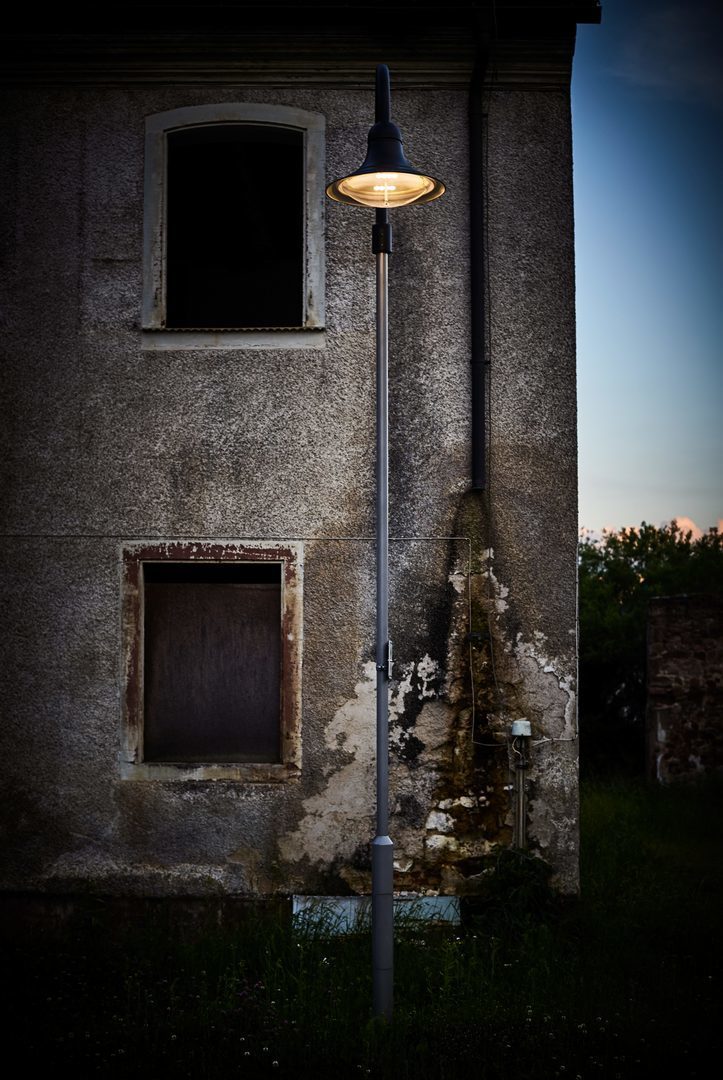

Decorative compact LED post-top luminaire, curved form.

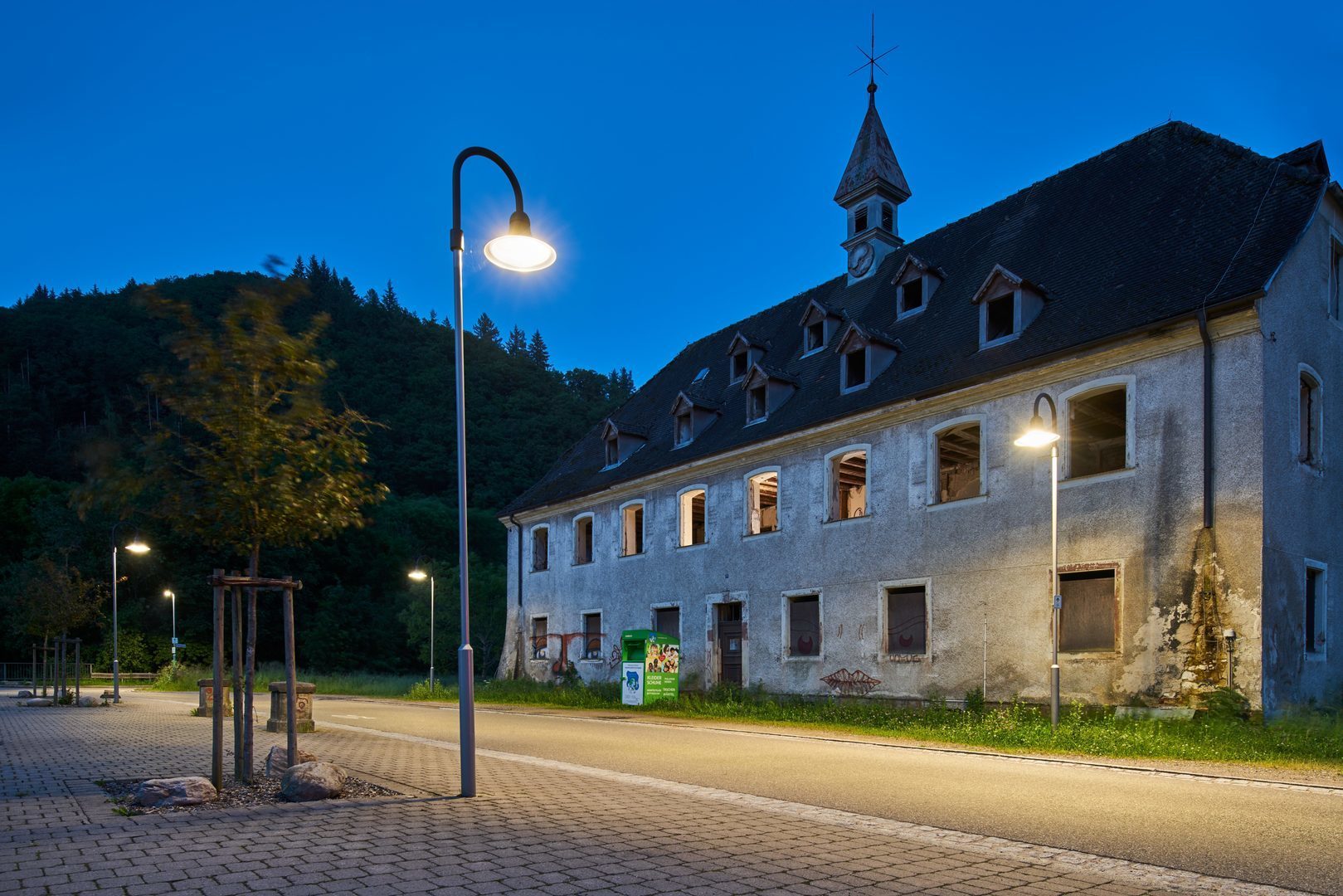

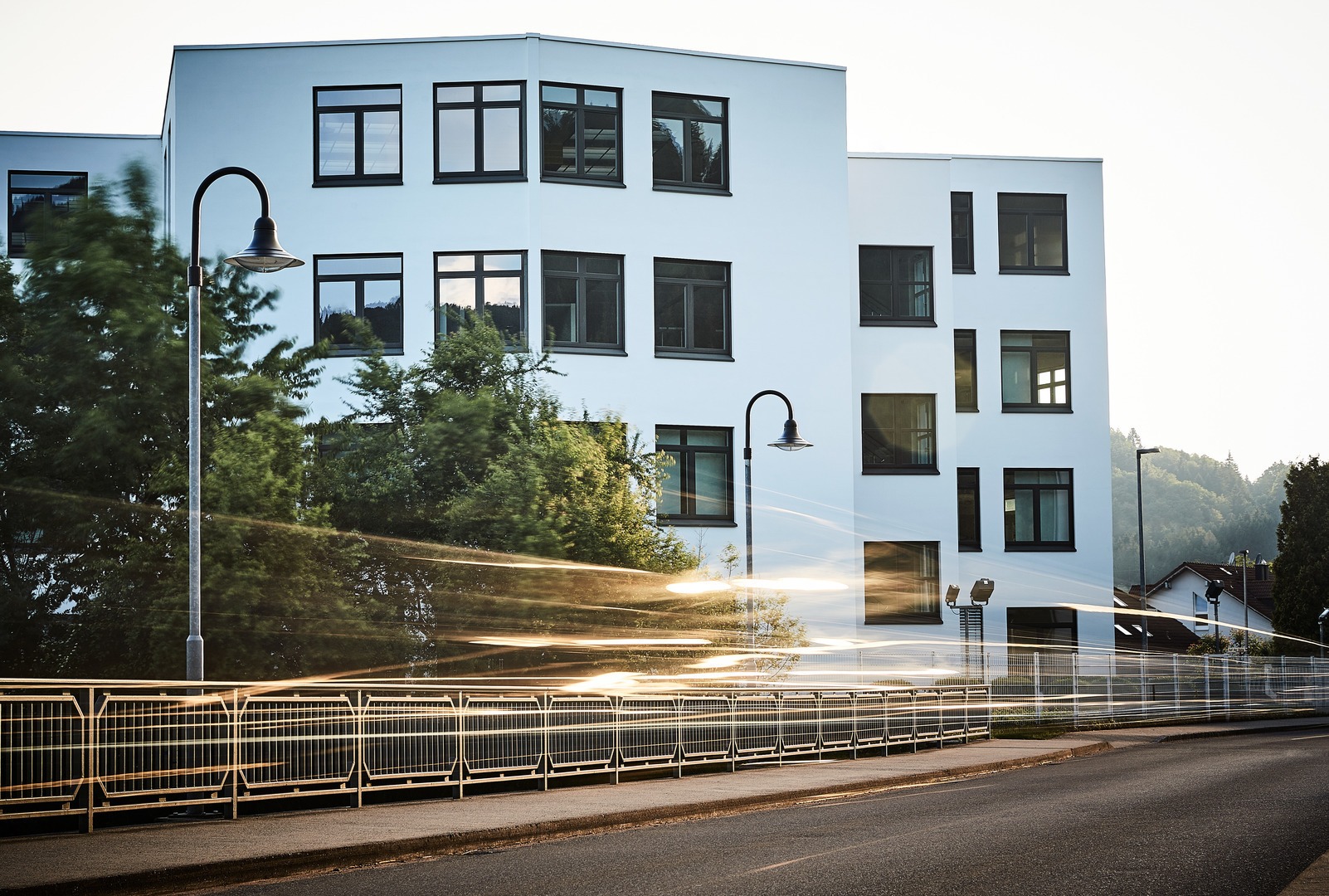

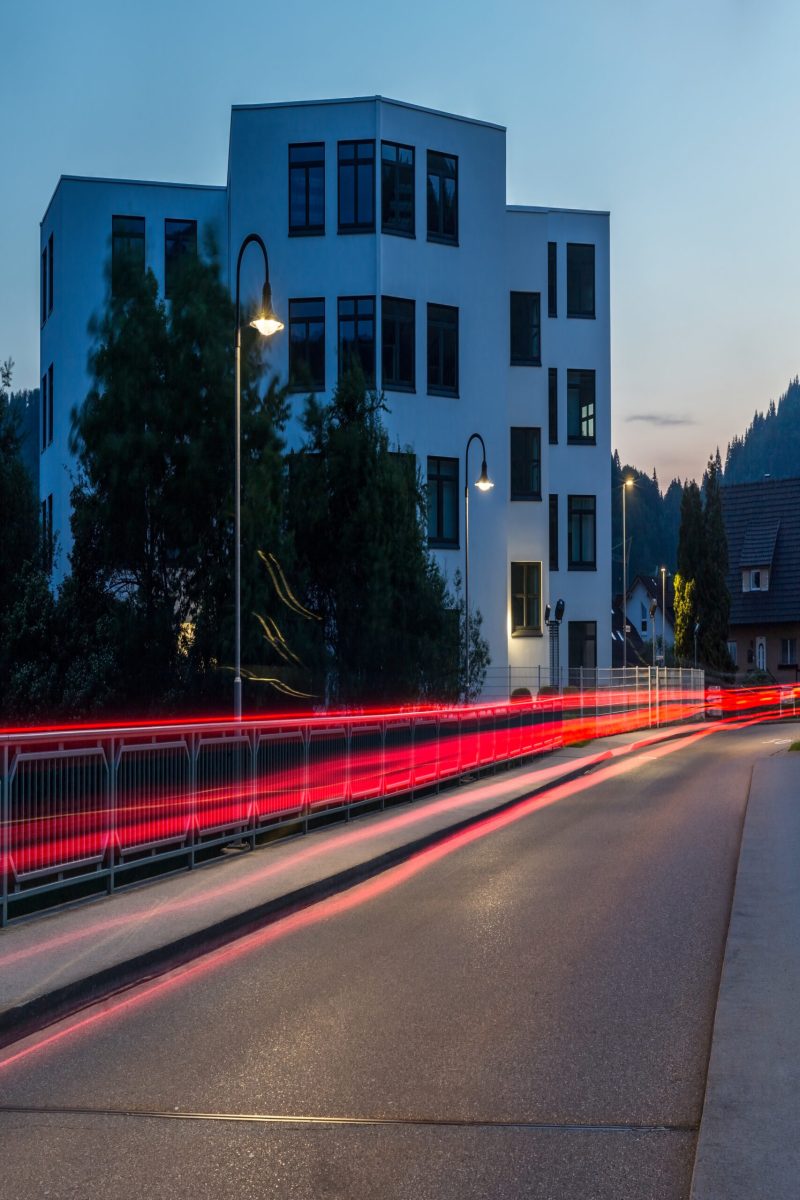

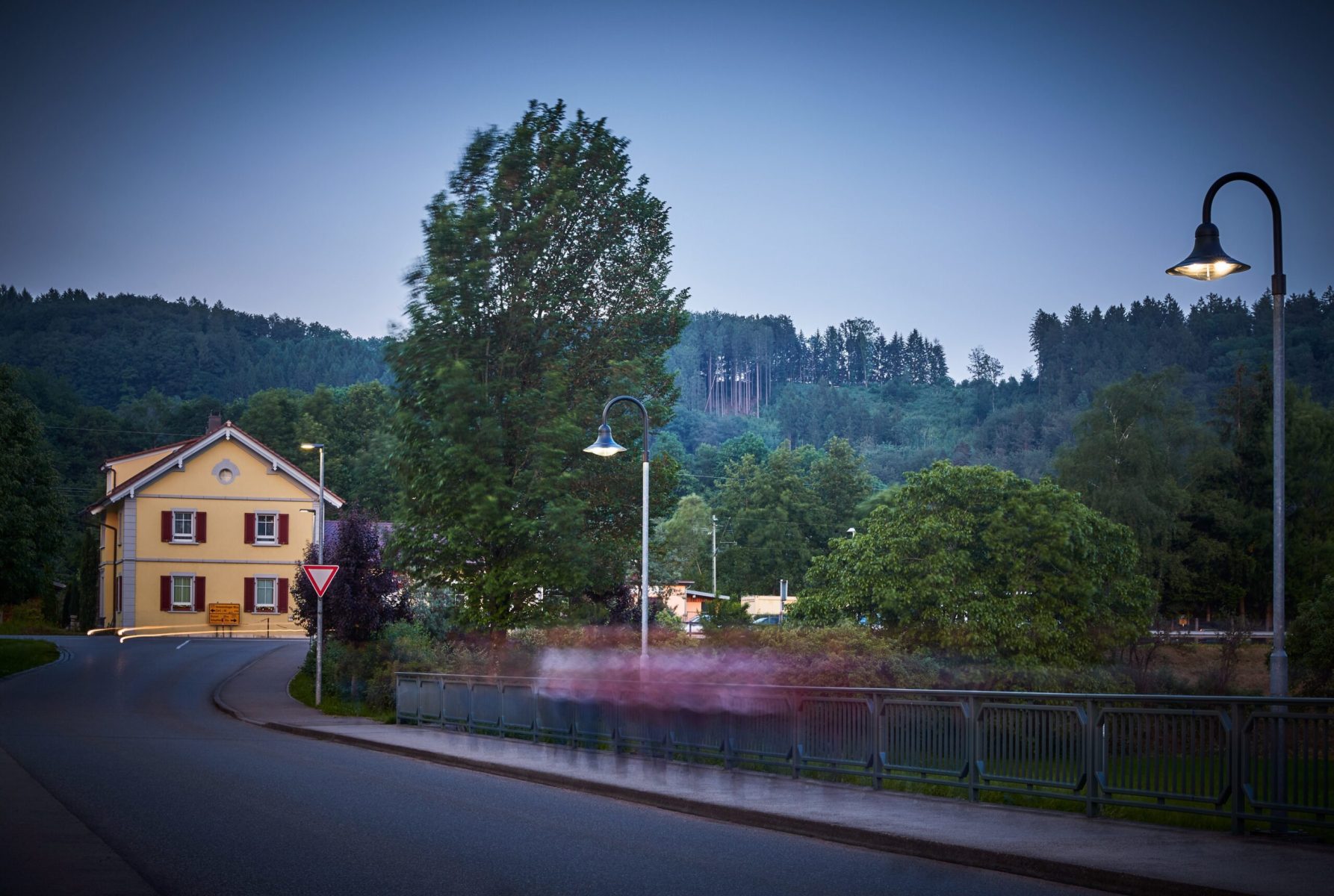

Applications
Collection roads, Residential roads, Low-traffic roads, Pedestrian zones, Arcades, Passages, Paths in parks and green areas, Residential facilities, Stairs, Access areas, Car parks.
Mounting methods
Bracket or wall mounting.
Optical system

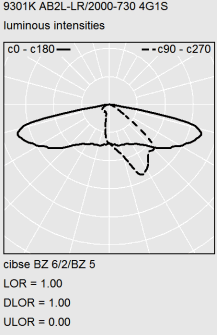

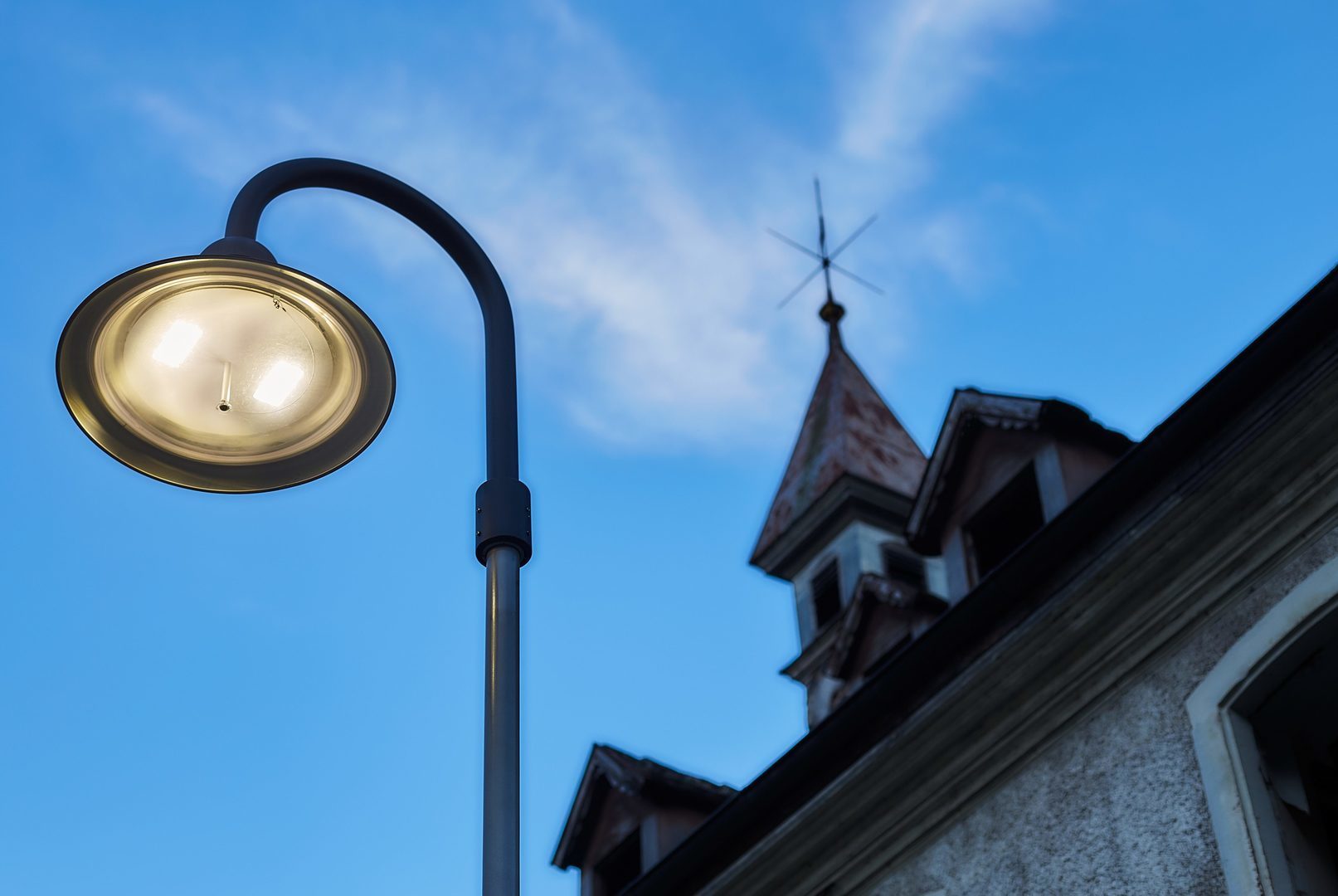

Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetrical wide light intensity distribution. For lighting roads according to P lighting classes. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear shielding is possible, available as accessory to be ordered separately.
LED system
LED system consisting of 4 LED modules. Luminaire luminous flux 2000 lm, connected load 19,00 W, luminous efficiency of luminaire 105 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K. general colour rendering index (CRI) Ra > 70. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h.
Luminaire body
Luminaire body of corrosion-resistant aluminium, outer colour deep black, similar to RAL 9005, white inner, coated, highly weather resistant. Sea weather-suitable coating on request. Diffuser of highly impact-resistant, clear PMMA. Securely fixed with one stainless steel screw.
Electrical connection
Gear tray with plug connection, can be easily removed. Electrical connection via 3-pole socket part of plug connection, up to 2.5 mm². With cable strain relief system.
Electrical version
With electronic transformer, switchable. Configurable ballast with luminous flux stabilising (CLO). Connected load at the end of service life: 21,00 W. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
Supplementary equipment
With power reduction via control phase. Switching off one control phase implements reduction of luminaire luminous flux to 50%.
Required accessory:

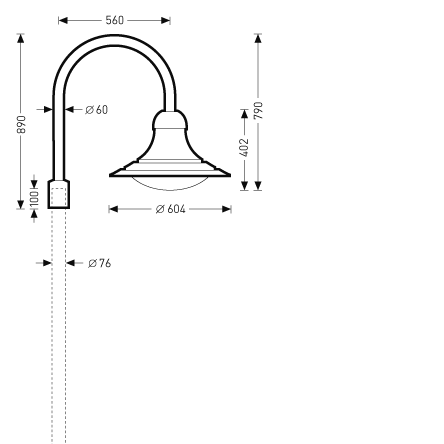

Bracket of aluminium tube and die-cast components, colour deep black, similar to RAL 9005, highly weather resistant, powder-coated. Post spigot Ø 76 mm. Connection module with double and triple configuration can be removed without tools. With 3-pole terminal to 2.5 mm² and cable strain relief system. Wired.
Wall mounting for 1 luminaire of aluminium tube and die-cast components, colour deep black, similar to RAL 9005, highly weather resistant, powder-coated. Wall plate with four fixing holes, Ø 10 mm.
Planning information:
The luminaire is compliant to the requirements of EN 60598 and is designed for the effects of wind compliant to EN 1991 (Eurocode) with basic wind velocity of up to 30m/s (corresponding to wind zone 4 in Germany) in terrain category 1. A snow load (up to 1kN/m²) and icing (up to 2 cm) at a mounting height in accordance with the mounting instructions are taken into account. Not considered are exposed locations (e.g. bridges, installation on buildings or directly adjacent to railway tracks). Impact loads are not considered.
