4401 G2

4401 G2 – BRINGT METALLPANEEL-DECKEN IN DIE ZUKUNFT

The 4401 G2 is a flexible refurbishment solution for metal strip ceiling systems in applications ranging from corridors to damp rooms. As well as the luminaire length, all relevant photometric parameters – such as luminous flux, beam characteristic and light colour – can be ideally adapted to the individual project. This enables time- and cost-saving refurbishment of conventional systems, often with 1:1 replacement and with no replanning. In operation, the luminaire scores with high efficiency, a long service life and its robust, maintenance-friendly design.

Artikelnr: 4401G2 Kategorier: ,

Beskrivning

Luminaire type
LED recessed luminaire for Module 100 strip ceilings for single luminaire or continuous line applications with IP54 protection rating.

Mounting methods
For strip ceilings in module 100, strip width 84 mm, gap width 16 mm. An accessory to be ordered separately is required for installation in strip ceilings (4401 G2 ZBP …).

Optical system
The translucent PMMA diffuser is manufactured from one piece and has especially high corner strength. With wide light distribution. The cover is non-yellowing and dœs not cloud.

LED system
Luminaire luminous flux 1000 lm, connected load 8,50 W, luminous efficiency of luminaire 117 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 60,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).

Luminaire body

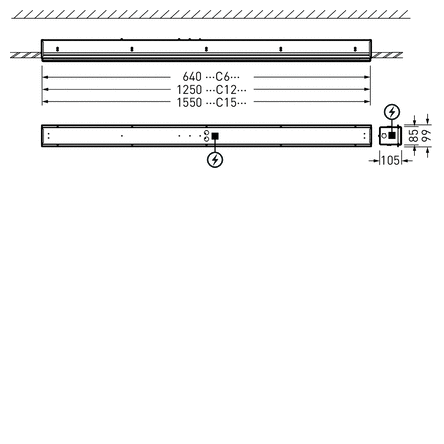

Luminaire body of sheet steel, powder-coated white. (RAL 9016). Dimensions (L x W): 640 mm x 100 mm, height 105 mm. With knock-outs at the front ends for through-wiring. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP54, impact resistance level in accordance with IEC 62262: IK05, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 2,0 kg.

Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.

Ytterligare information

Längd

C06: 640 mm, C12: 1250 mm, C15: 1550 mm
Ljusflöde

1 000 lm, 1 500 lm, 2 000 lm, 2 500 lm, 3 000 lm, 4 000 lm
Färgtemperatur

3000K, 4000K
Styrning

ET: Tänd/släck, ETDD: DALI
Nödljus

EB3: Inbyggt batteri för 3h drifttid, UR: För extern kraft, Utan nödljus
